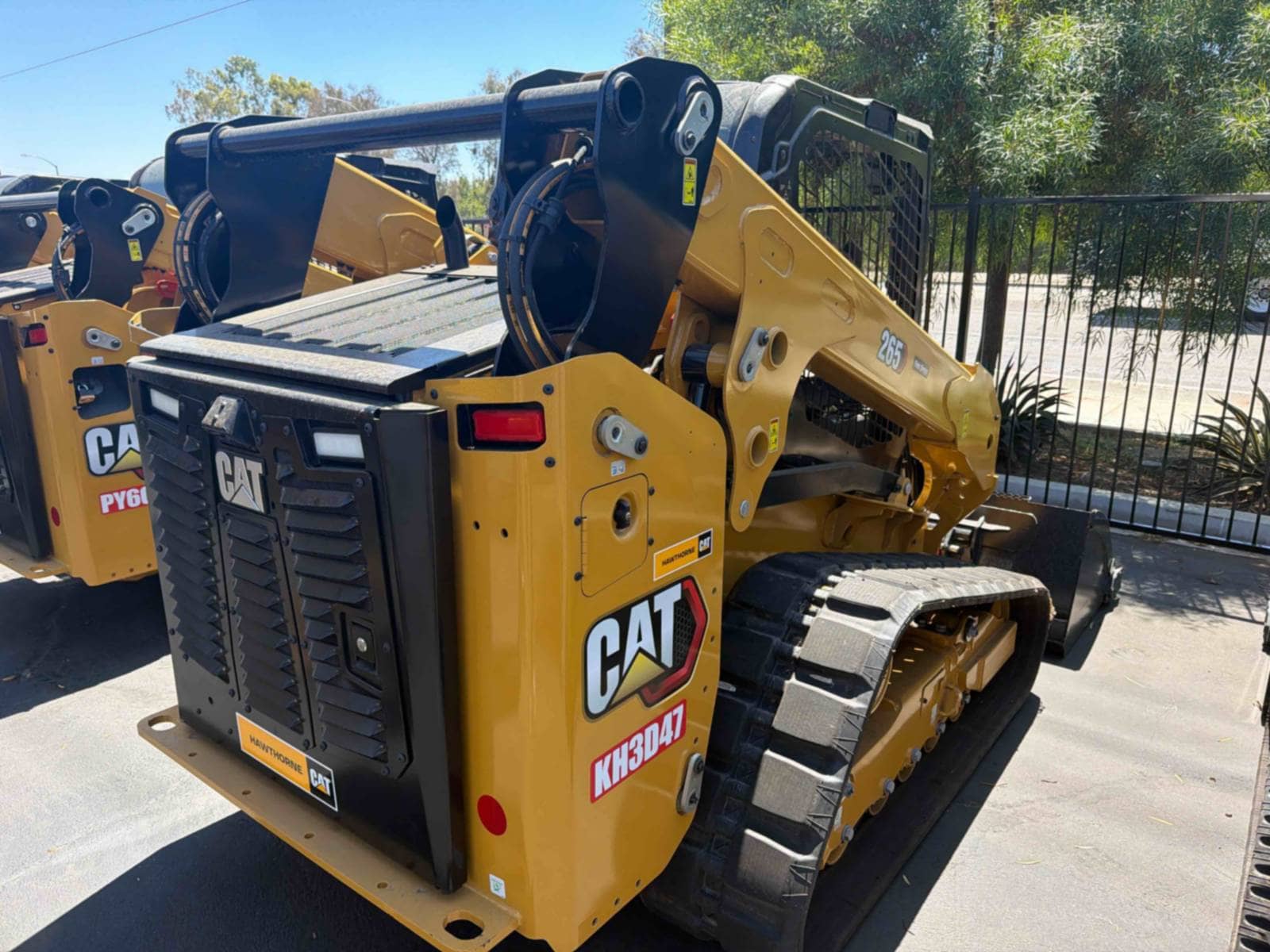

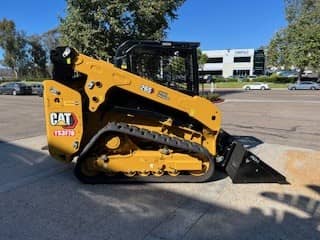

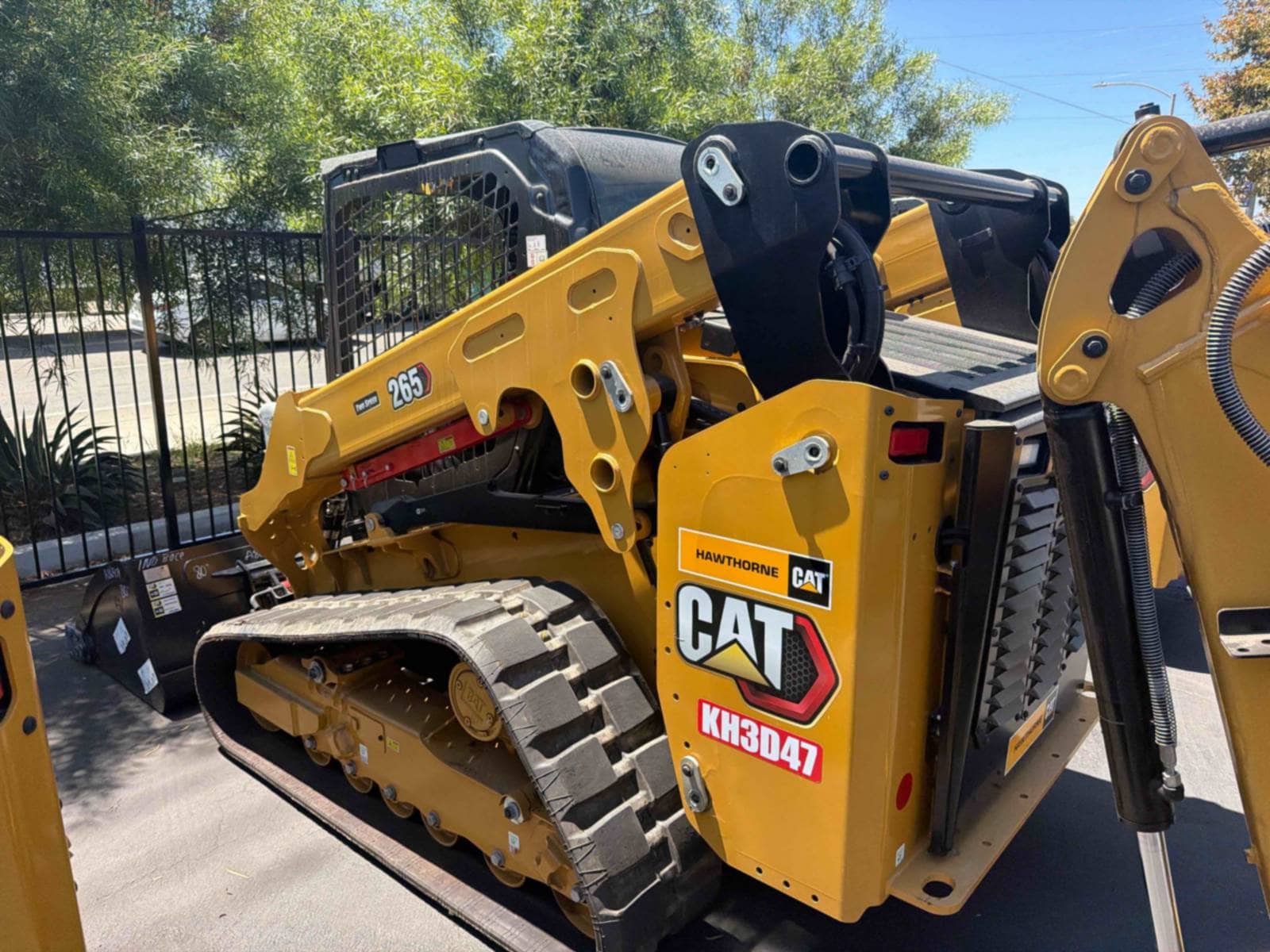

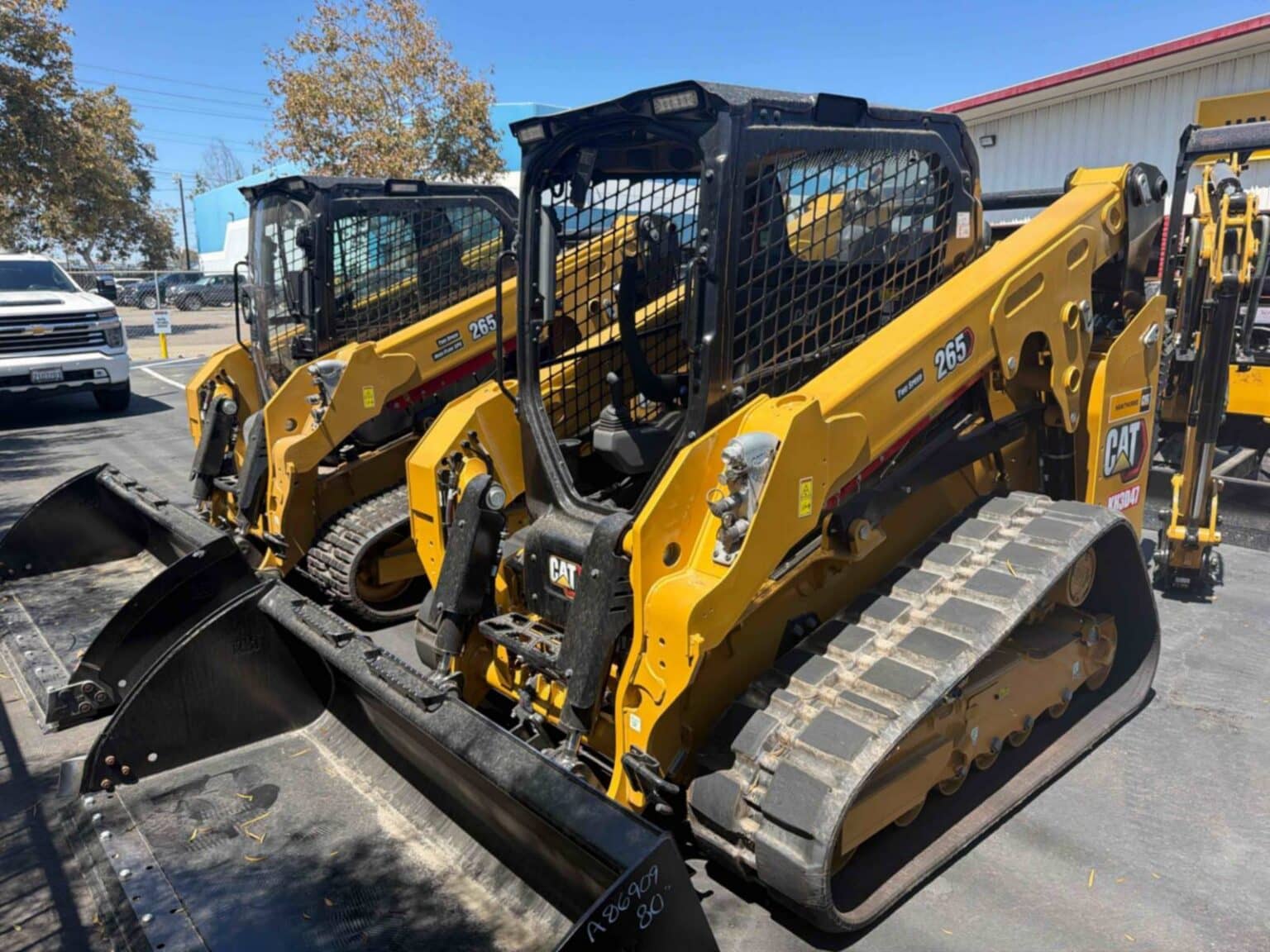

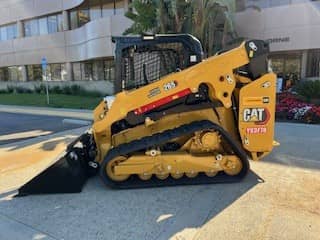

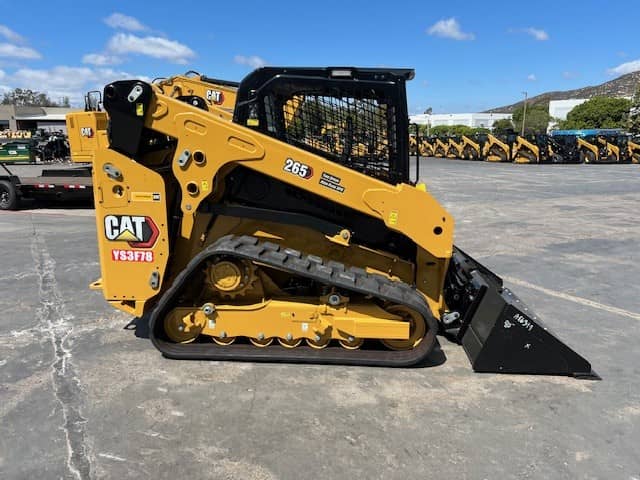

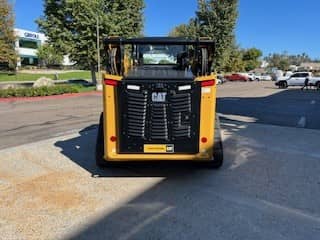

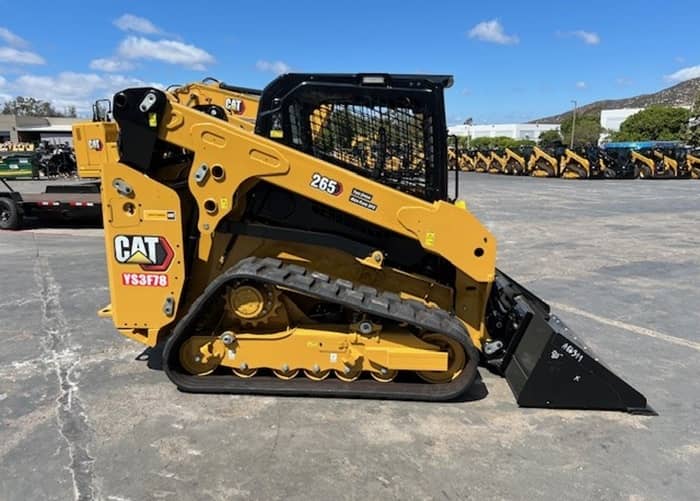

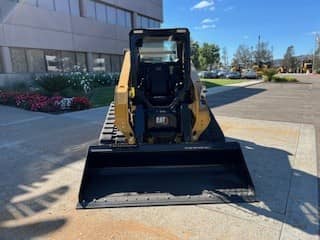

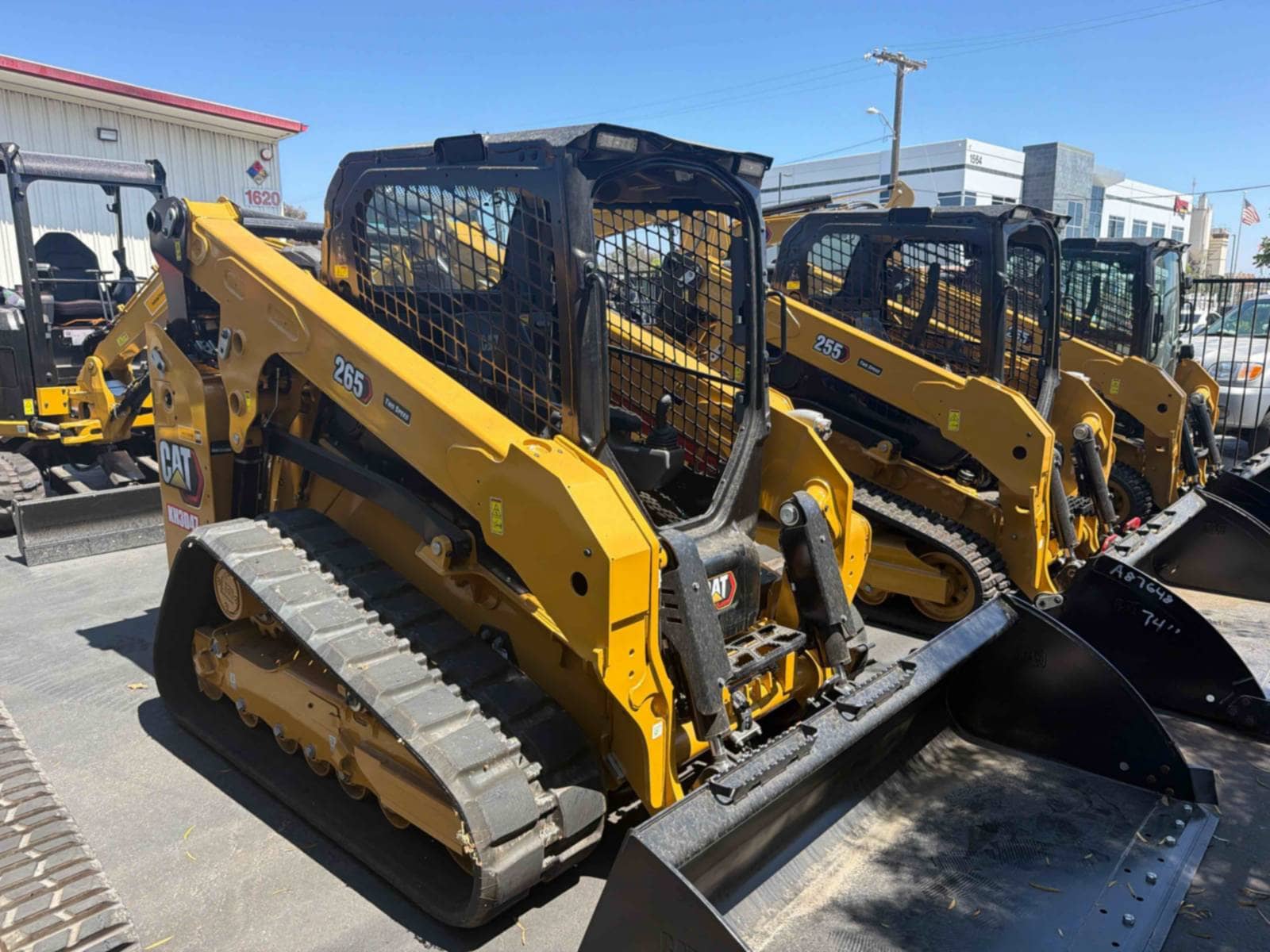

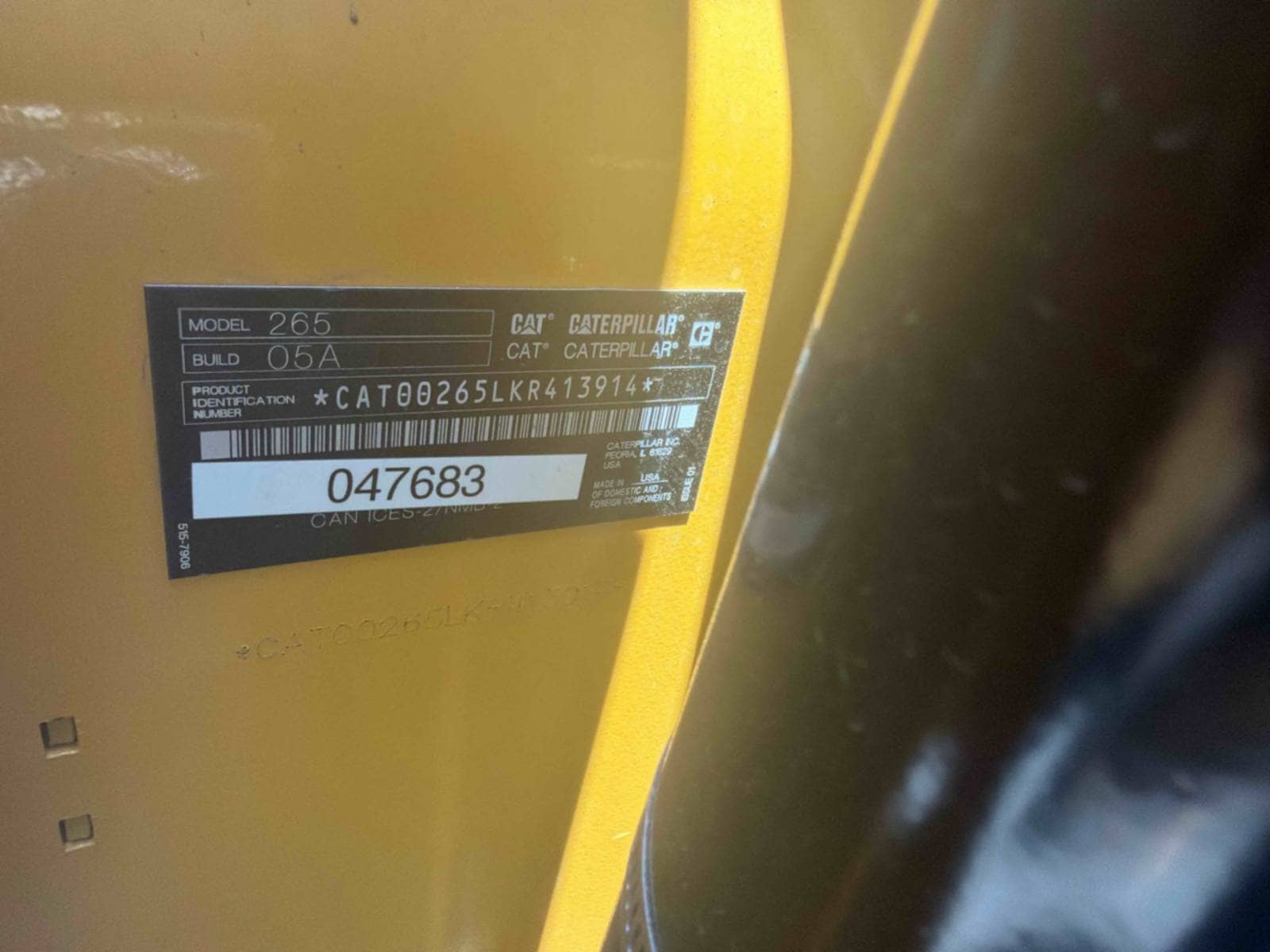

High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
Steel Imbed Rubber Track – 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
Performance Package HP1: Standard Flow Hydraulics
Performance Package HP3: High Flow XPS Hydraulics
Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)
Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.
T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
T5 – T4 + 2 additional side view cameras.
Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
Product Link™ Basic series PL243
Product Link Elite series PLE643
On-demand, variable speed hydraulic cooling fan
On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)
HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
HD2 – most comprehensive guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, DPF wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner.)
Work Tool Electrical Harness
Heavy duty battery
Battery disconnect with lockout feature
12-volt Electrical System
85 Ampere Alternator
LED Work Lights
Auto Reverse Lights
Switch Backlighting
Interior LED Dome Light
Backup Alarm
Electrical Outlet, Beacon
Exterior Courtesy Lighting
Automatic Work light notification flash when parking brake is released

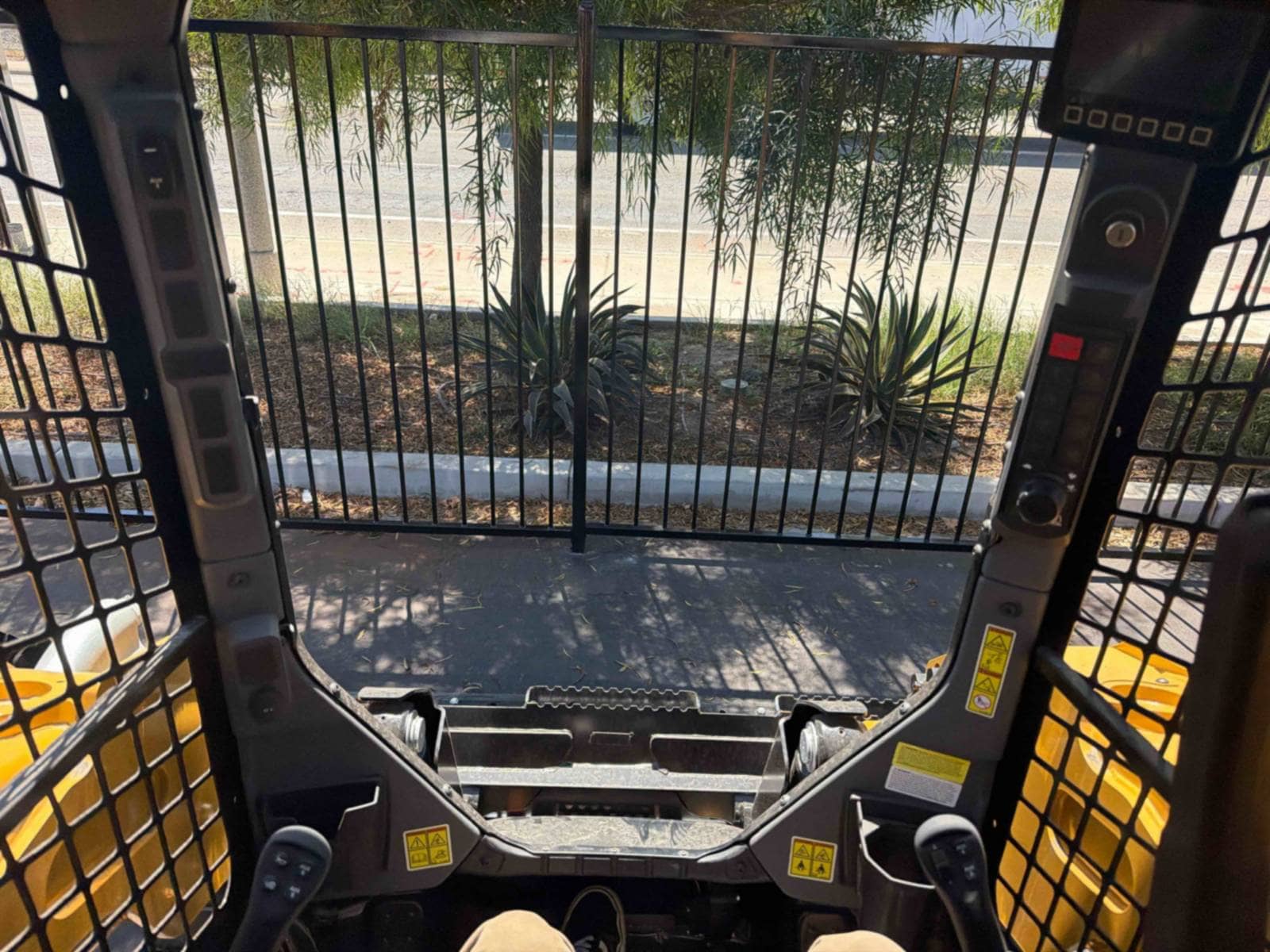

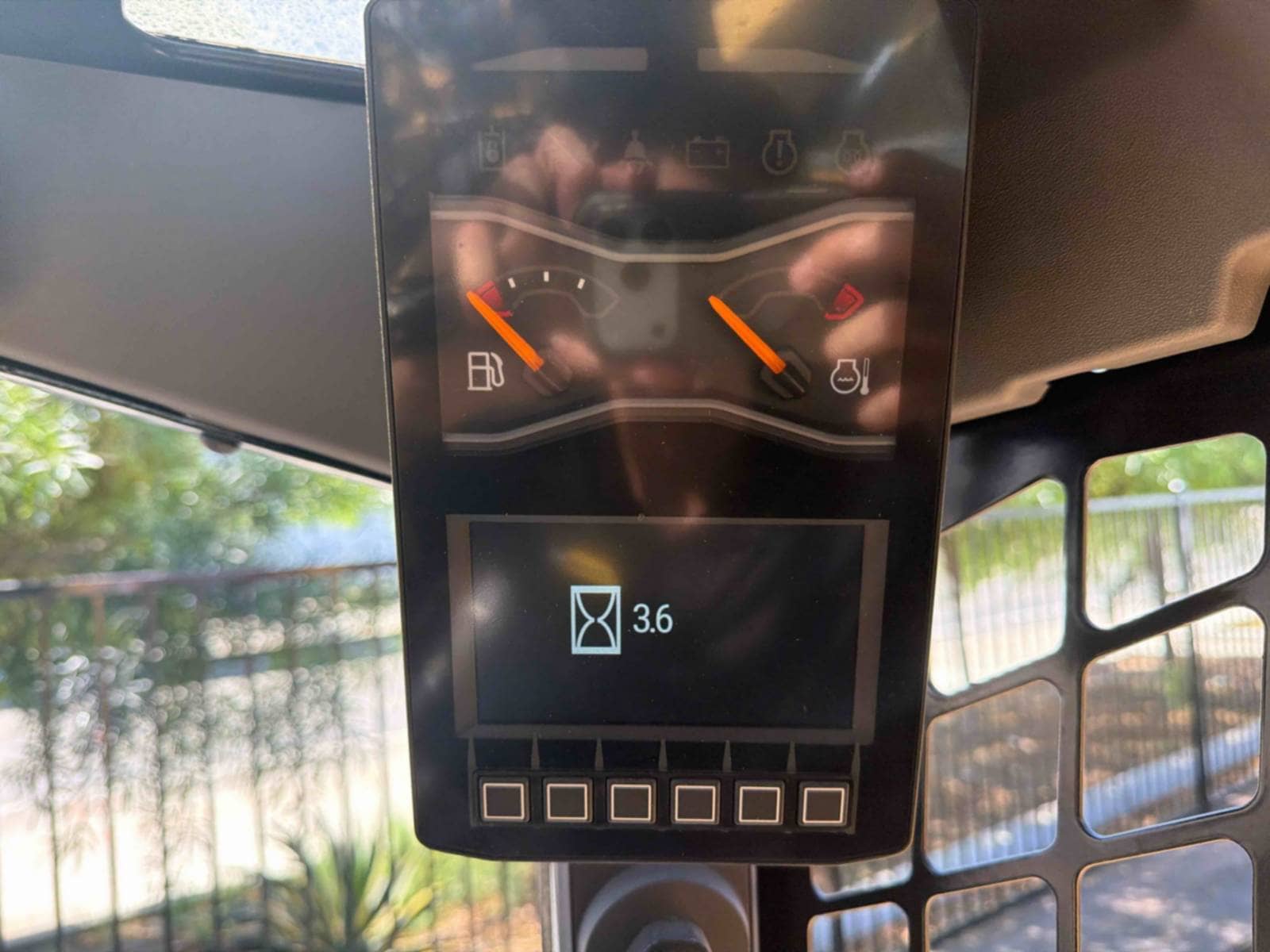

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking
Brake Engages

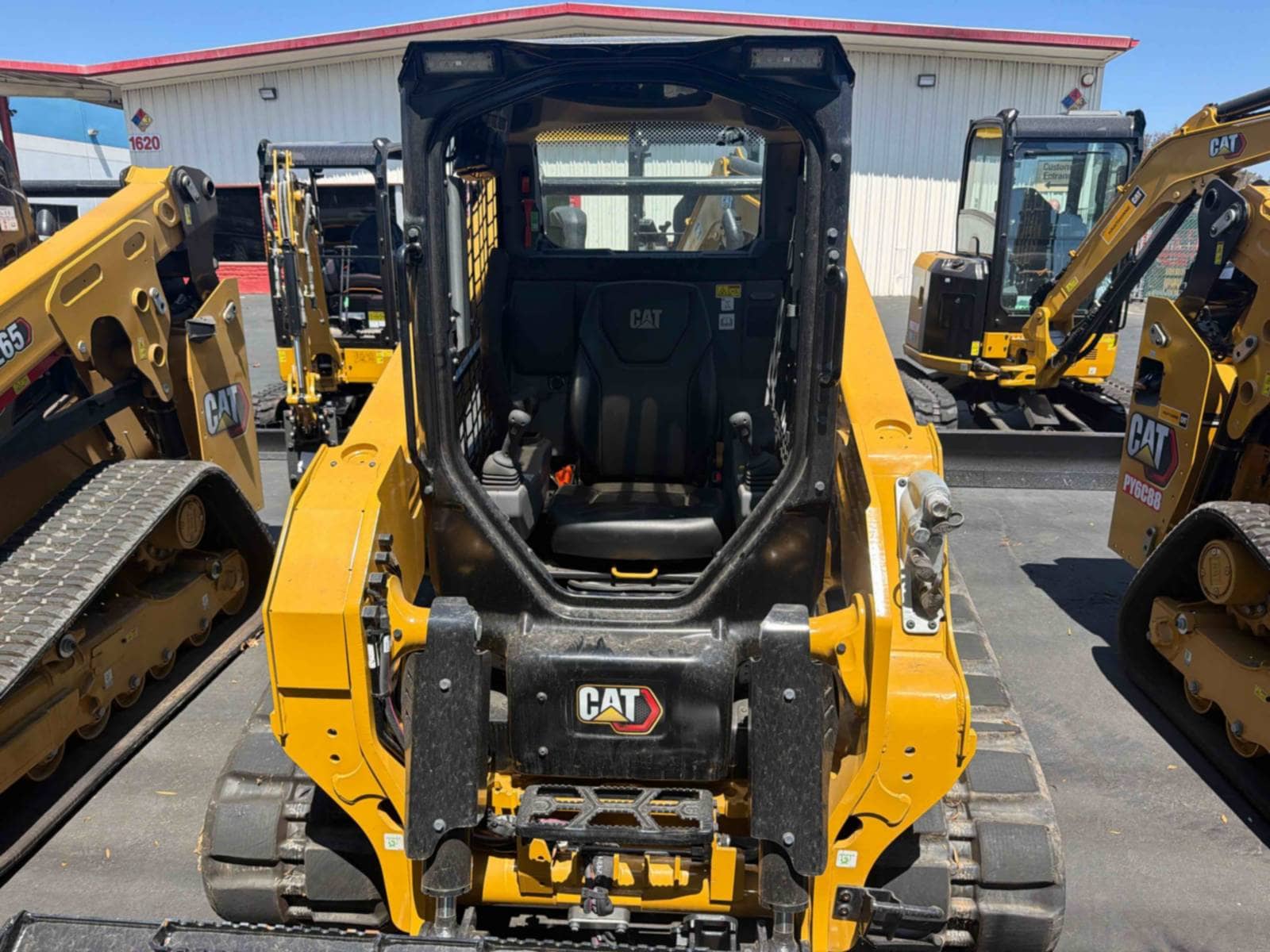

ROPS Cab, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Headliner
Interior Rearview Mirror
Horn
Hand (Dial) Throttle, Electronic
Seat Mounted Joystick Controls
Cell Phone Storage Pocket
Cup Holder
12-volt power port
Foot Throttle
Selectable control pattern – ISO or H
Electro/hydraulic implement control
Electro/hydraulic hydrostatic transmission control
Speed sensor guarding
Heavy duty flat faced quick disconnects with integrated pressure release lever
Hydraulic oil level sight gauge

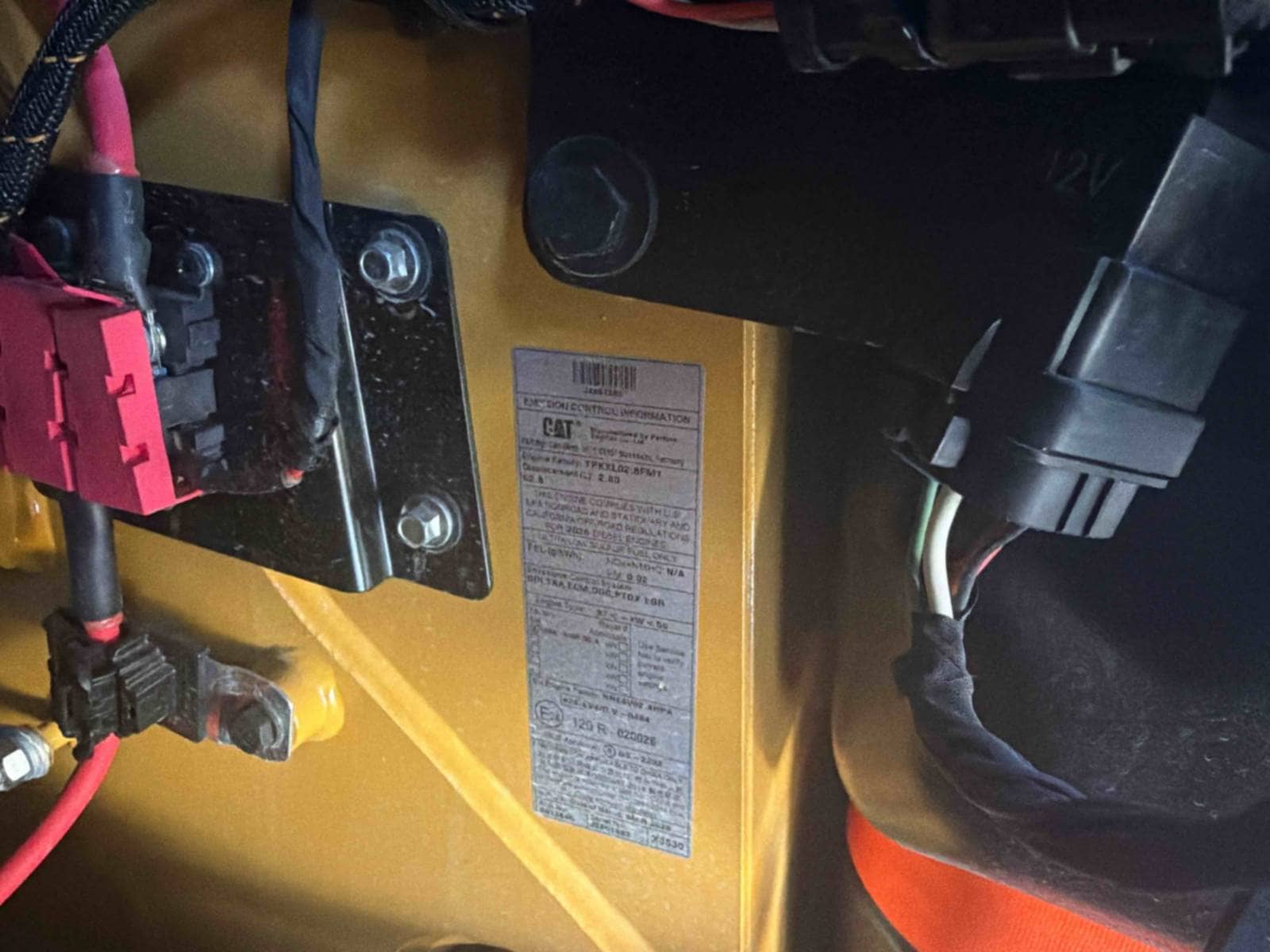

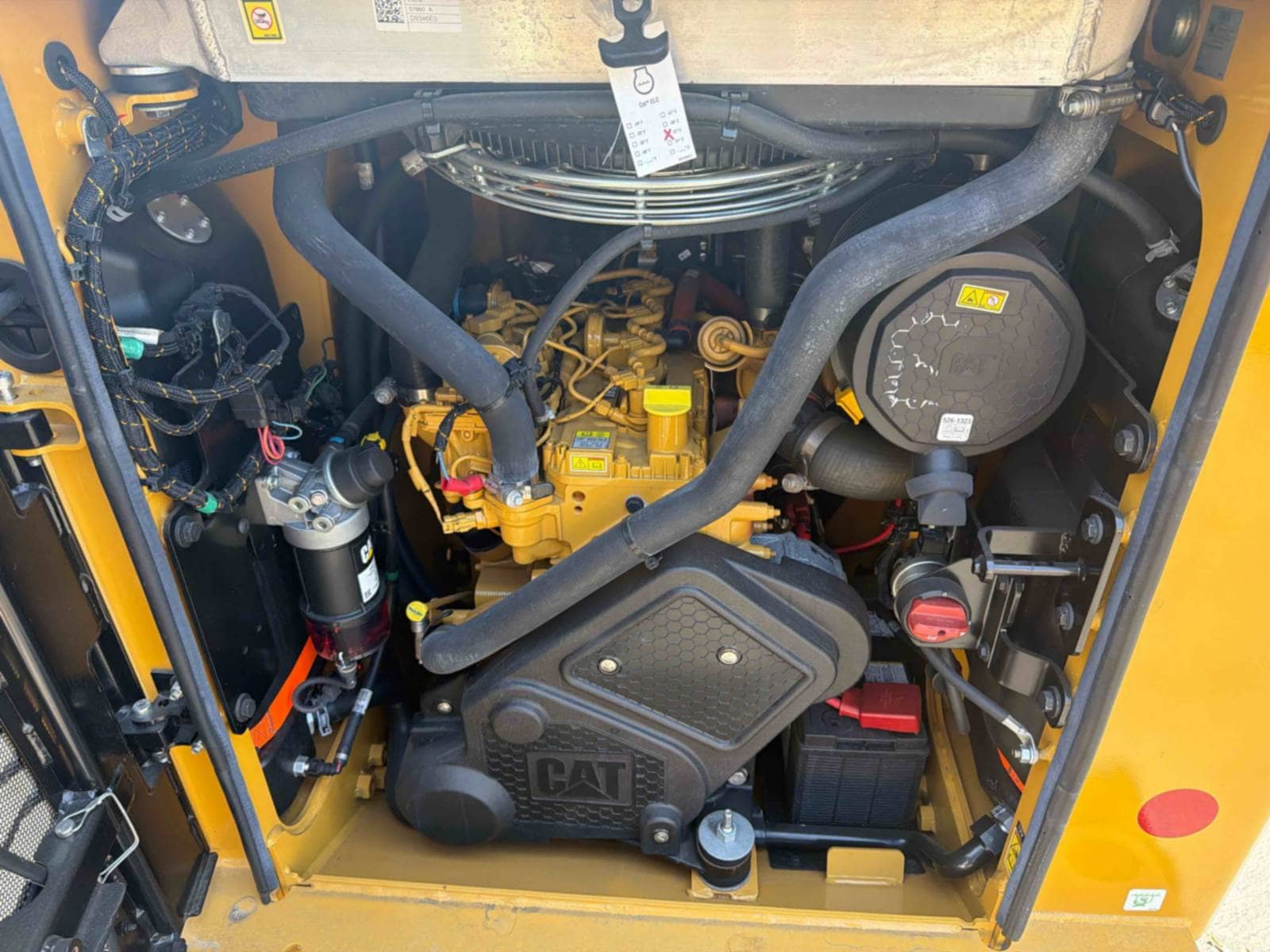

Cat C2.8TA turbocharged, after-cooled diesel engine, meeting Tier 4 Final and Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection
Spring applied, hydraulically released, parking brakes
Hydrostatic transmission
Lockable fuel cap
Hydraulic demand cooling fan
Auto engine idle
Torsion Suspension (4 independent torsion axles)
Two speed travel
Integrated tie downs on track frame (4)
Machine tie down points (9)
Removable panels for machine frame cleanout
Support, lift arm
Steel rear and front bumpers, welded
Fuel fill, machine right hand side
Auxiliary Hydraulics, Continuous Flow
Telematics, Product Link, Cellular
Steel engine door with replaceable louvers
Engine door – lockable
Work tool attachment coupler
Cat ToughGuardTM hose
Specs
ROPS
, ISO 3471:2008
FOPS
, ISO 3449:2005 Level I
FOPS Level II
, ISO 3449:2005 Level II (optional)
Gross Power - SAE J1995:2014
, 74 hp
Engine Model
, Cat® C2.8TA (turbo after-cooled)
Net Power - ISO 9249
, 73 hp
Net Power - SAE 1349
, 74 hp
Peak Torque at 1,360 rpm SAE J1995
, 280 lb/ft
Displacement
, 171 in²
Stroke
, 4.3 in
Bore
, 3.5 in
Operating Weight
, 10492 lb
Counterweight Adds to Operating Weight
, 276 lb
Enclosed Cab Adds to Operating Weight
, 181 lb
Note
, *Operating Weight, Operating Specifications, and Dimensions are based on 2036 mm (80") low profile bucket with bolt on cutting edge, 450 mm (17.7") wide track, 75 kg (165 lb) operator, open canopy, mechanical suspension seat, HD battery with disconnect, standard flow hydraulics, manual coupler, and full fluids. No external counterweights, and no dual self-level/return-to-dig/work tool positioner
Bucket Pin Height - Carry Position
, 8.4 in
Bucket Pin Height - Maximum Lift
, 132 in
Bucket Pin Reach - Maximum Lift
, 9.8 in
Clearance at Maximum Lift and Dump
, 104.5 in
Departure Angle
, 28.2°
Ground Clearance
, 8.5 in
Height - Top of Cab
, 83.3 in
Length - Track on Ground
, 64 in
Length - With Bucket on Ground
, 140.9 in
Length - Without Bucket
, 116.1 in
Maximum Overall Height
, 164.3 in
Maximum Reach - With Arms Parallel to Ground
, 46.7 in
Overall Length - Track
, 83.7 in
Rack Back Angle - Maximum Height
, 85.3°
Reach at Maximum Lift/Dump
, 25.1 in
Roll Back Angle
, 27°
Turning Radius from Center - Bucket (racked)
, 87.8 in
Turning Radius from Center - Coupler
, 56.5 in
Turning Radius from Center - Machine Rear
, 68.5 in
Vehicle Width (450 mm/17.7 in tracks)
, 75.8 in
Maximum Dump Angle
, 46.4°
Inside Cab*
, 80 dB(A)
Outside Cab**
, 103 dB(A)
Note (1)
, Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
, *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
, **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Travel Speed - Forward or Reverse - One Speed
, 5 mile/h
Travel Speed - Forward or Reverse - Two Speed
, 8.1 mile/h
Recyclability, 95%
Hydraulic Flow - Standard - Loader Hydraulic Pressure
, 3500 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow
, 23 gpm
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
, 46.4 hp
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
, 3500 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow
, 30 gpm
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
, 60.9 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
, 4061 psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
, 34 gpm
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
, 80.7 hp
Rated Operating Capacities - 35% Tipping Load
, 2823 lb
Rated Operating Capacities - 50% Tipping Load
, 4033 lb
Rated Operating Capacity with Optional Counterweight - 35% Tipping Load
