150 Next Gen

150 Motor Grader

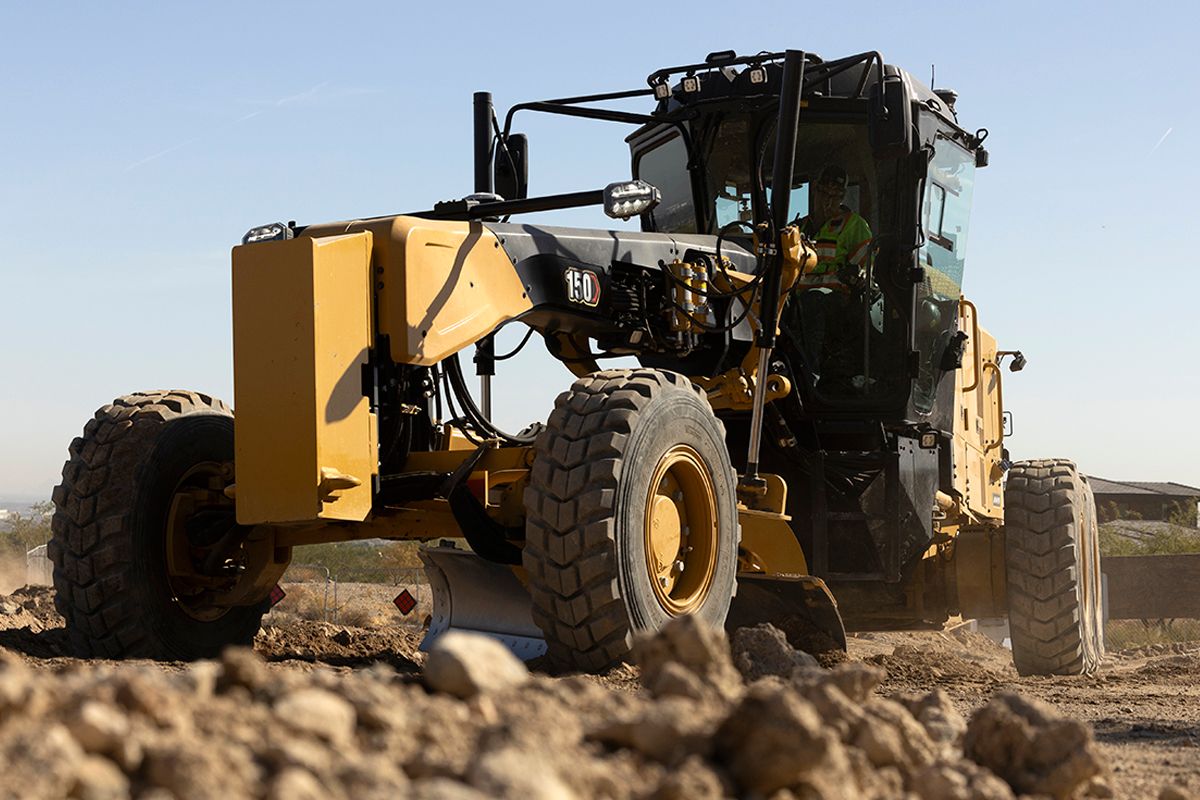

The Cat® 150 Motor Grader delivers powerful, precise performance with advanced controls and durable construction—engineered to handle tough jobsites and deliver refined results in road building and site prep.

150 Motor Grader

DESCRIPTION

The Cat® 150 motor grader delivers serious power for road maintenance, fine grading, and site prep with strong traction and smoother finishes. Now with both joystick or lever steering options, the 150 gives operators precise, comfortable control.The Cat® 150 motor grader delivers serious power for road maintenance, fine grading, and site prep with strong traction and smoother finishes. Now with a lever steering option, the 150 gives operators precise, comfortable control.

Introducing Cat® Power to the Ground for Cat® Motor Graders

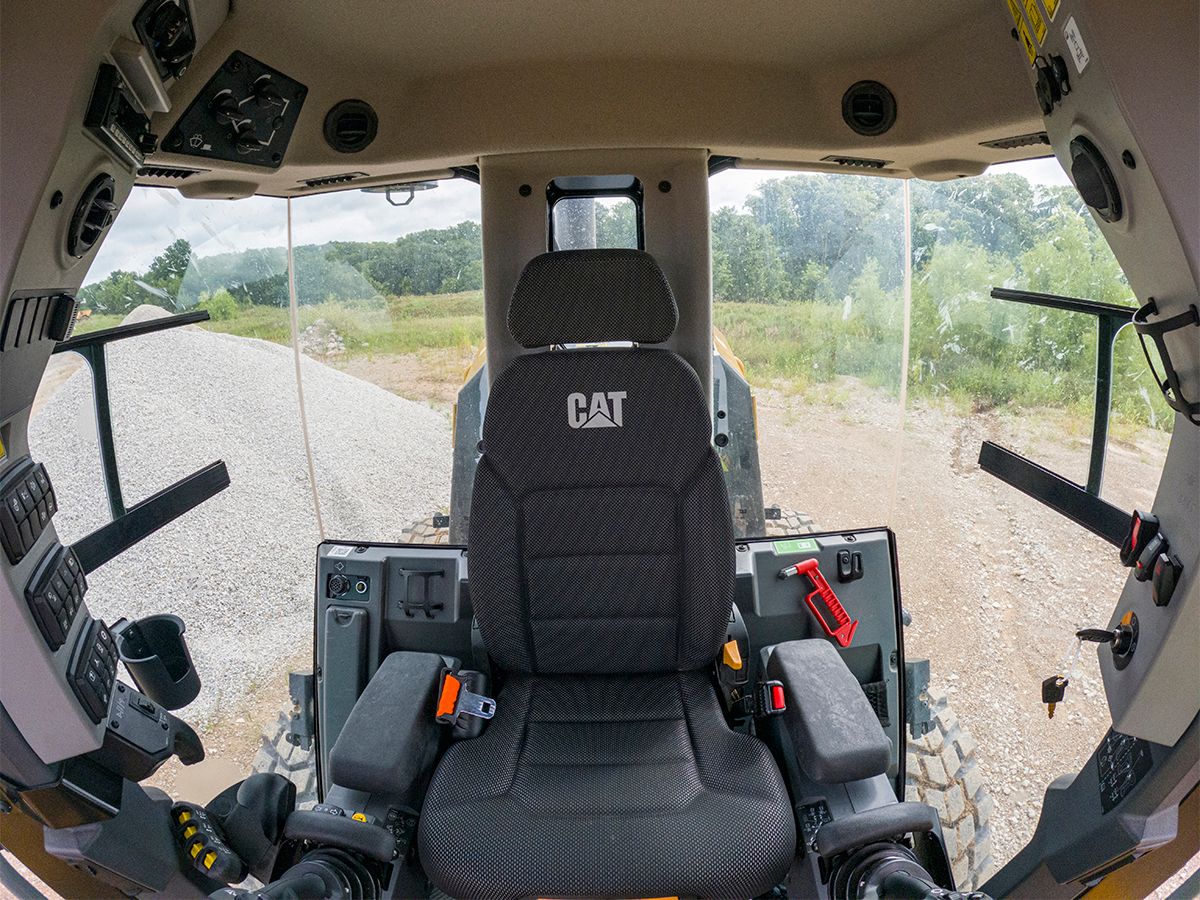

Redesigned Cab

The redesigned cab provides better visibility to the ground, grouped control buttons for ease of operations, optional seat upgrades, and comfort customizations for the operator. The Cat 150 motor grader offers lever and steering wheel (LVR) or joystick (JOY) configurations to match operator preference.

Safety

  • Operator presence monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
  • Anti-glare paint eases night operation eye strain.
  • Ground-level refueling requires no climbing on the machine to fill the fuel tank.
  • Ensure three points of contact when entering and existing the machine with strategically placed walkways and grab rails.
  • Work past sundown using the LED light package option for increased nighttime visibility.
  • Speed sensitive steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
  • The standard secondary steering system's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
  • Hydraulic lockout disables all implement functions while still providing machine steering control. This is especially useful while roading.
  • Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
  • Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
  • Standard circle drive slip clutch protects the standard drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions. The optional blade lift accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.

    • Technology

    Using the data from technology-equipped machines, get more information and insight into equipment and operations.

  • Cat Grade Attachment Ready Option (ARO) is the building block for all Cat motor grader technologies.
  • Cat VisionLink provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.*Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
  • Cat Inspect is a mobile application that allows you to easily perform digital Preventative Maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.
  • Remote troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
  • Cat Grade 3D for motor graders, also called "mastless," is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
  • Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence blade avoidance, and two sensors to simplify mastless upgrades. It allows the operator to manually control one end of the moldboard while the system controls the other.
    • Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.

    A New Power Strategy

    A new specification is now available on Next Generation Cat® Motor Graders, showing the actual power to the ground performance. Cat updated the power strategy (called Power to the Ground) so the machine now delivers consistent power in every condition – hot or cold weather, heavy or light load. This means the grader feels more stable, more predictable, and easier to control, especially when fine‑grading.
    You still get the same real‑world productivity, with smoother operation and better fuel efficiency.

    More Consistent Power to the Ground
    With true constant net power, the machine delivers consistent power regardless of temperature or load, providing more predictable grading performance and better machine feel and control—especially for fine grading.

    Improved Grading Quality with Integrated Control Technologies
    A more stable power curve allows Cat Grade with Cross Slope, Stable Blade, and 3D Grade to operate more accurately, improving automated blade control response with consistent, predictable power.

    No Loss in Real-World Productivity
    Next Generation Cat motor graders deliver the same legendary performance for road building, site prep, ditching, and snow removal—now with the latest design evolution.

    Better Fuel Efficiency
    Power to the Ground supports smoother operation and reduced fuel burn by avoiding unnecessary power spikes, allowing the machine to run in optimized power more often.

    Lower Maintenance Costs

  • Grouped filters and access points help operators
  • Engage Eco mode to reduce fuel burn.
  • Filters, such as hydraulic oil, engine air, and DEF filters, are grouped together for easy access and preventative maintenance. The next generation filters help reduce your fluid and filter costs.
  • Spend less time cleaning the cooling system with the reversing fan option, which helps keep costs down when cleaned once per week giving you more uptime.
  • Optional High Performance Circle helps eliminate hours of monthly planned maintenance for frequent inspection, wear strip replacement and circle shoe adjustments associated with conventional circles. Advantages include increased circle torque, performance, and improved durability. It provides a smooth, effortless rotation of blade and assists in meeting road design elevation tolerance.
  • Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability. For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.

    • Sustainability

    • The Cat engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
    • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details.
    • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
    • Cat Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
    • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    • VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
    • Don't waste fuel idling. Cat VisionLink online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
    • Cat Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
    *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

    • Standard Equipment
    • Optional Equipment
    • Specs
    • Docs

    Standard Equipment

    • NOTE
      • Standard equipment may vary. Consult your Cat dealer for details.
    • OPERATOR ENVIRONMENT
      • Cellphone holder
      • Seat, vinyl
      • Seat belt
      • Wipers, front
      • Screen, rear sun shade
      • Cab, base
      • Differential lock, manual
      • Information display screen
      • Coat hook
      • Cup holder
      • Cab storage
      • Mirrors, B-pillar
      • Mirror, rear view
      • Lights, dome interior
      • Automatic climate control
      • Rollover protective structure (ROPS) / falling objects protective structure (FOPS)
    • SAFETY
      • Back-up alarm
      • Grab rails
      • Hydraulic brakes
      • Hydraulic system - integrated dead engine implement lower
      • Hydraulic system - integrated work port pressure relief
      • Parking brake
      • Tandem toolbox
      • Tandem walkways
    • POWERTRAIN
      • Cat C9.3B diesel engine
      • Transmission, 9 forward / 6 reverse gears, including finish gear
      • Eco mode
      • 43° C (109° F) standard capacity
      • Ecology drain
      • Engine idle shutdown
      • Shifter with upshift/downshift rocker
    • DRAWBAR CIRCLE MOLDBOARD
      • Circle - Bottom Adjust
      • Circle drive slip clutch
      • 12 foot moldboard
    • ELECTRICAL
      • Sealed alternator
      • Alternator, basic 115A at 24 V
      • Reversing lights
      • Breaker panel
      • 900 CCA standard duty batteries
      • Rear lights with LED lighting
      • LED lights
      • Low light and high light bars
    • SERVICE AND MAINTENANCE
      • Next generation fluid filters
      • Fuel fill
      • Fast fuel ready
      • Grouped location for engine oil and fuel filters
      • Extended life coolant

    Optional Equipment

    • NOTE
      • Optional equipment may vary. Consult your Cat dealer for details.
    • OPERATOR ENVIRONMENT
      • Seat, air suspension
      • Seat, mechanical suspension
      • Seat, premium heated and ventilated
      • Wipers, lower front
      • Wipers, rear
      • Screen, rear window
      • Cab, plus (sliding side windows)
      • Cab, premium (sliding side windows and door wipers)
      • Mirrors, side view
      • Fans, defrost
      • Radio ready
      • AM/FM, Bluetooth®, Weatherband
      • CB radio with converter
      • Satellite radio
    • SAFETY
      • License plate bracket
      • Manual lock out
      • Operator Presence System
      • Camera, rear view
      • Secondary steering system
      • Signaling/warning horn
      • Drawbar toolbox
      • Warning beacon mounts
      • Integrated hazard lights
      • Sound suppression
    • POWERTRAIN
      • Transmission with autoshift
      • High-speed engine oil drain
      • Cold weather package
      • Cold weather package plus
      • All-Wheel Drive (AWD)
    • DRAWBAR CIRCLE MOLDBOARD
      • Circle - Top Adjust
      • Circle - High Performance Circle
      • Circle saver
      • Blade lift accumulators
      • 14 foot moldboard
      • Grader Bits on 14 foot moldboard
    • ELECTRICAL
      • 1,125 CCA heavy duty batteries
      • Snow wing LED lights
      • Drop down rear lights and turn signals
    • SERVICE AND MAINTENANCE
      • Engine service light
    • ATTACHMENTS
      • Lift groups
      • High Performance Circle
      • Counterweight
      • Push block
      • Mid-Machine Scarifier (MMS)
      • Rear ripper/scarifier
      • Front blade
      • Snow wings
      • V-Plow
      • Straight plow
      • Brooms
      • Lift groups
      • High Performance Circle
      • Counterweight
      • Straight plow
      • Brooms

    Specs

    Overview

    Long Name:
    150 Motor Grader
    Name:
    150 Next Gen
    Brand:
    Cat
    Status:
    Current

    Engine

    Net Power - ISO 9249/SAE J1349
    219 hp / 163 kW
    Engine Model
    Cat® C9.3B

    Weights

    Operating Weight - Typically Equipped
    45012 lb / 20417 kg

    Machine Weight

    Note (1)
    * Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment.

    Moldboard

    Blade Width
    12 ft / 3657 mm

    Power Train

    Forward/Reverse Gears
    9 Forward / 6 Reverse

    Service Refill Capacities

    Diesel Exhaust Fluid Tank (Tier 4 Only)
    10.6 Gal / 40 l
    Fuel Tank
    42.3 Gal / 160 l
