1524 mm (60 in), Pin On, Class III

1524 mm (60 in) Pin On Pallet Class III Fork Carriage

Studio Shot

DESCRIPTION

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.Cat® Pallet Fork Carriages are designed to meet a wide variety of material handling needs. Pallet fork carriages utilize different fork tine lengths for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Notched Rail-Type Carriage

Notched rail-type carriage design for Pallet Forks allows fork tines to be easily replaced or changed and locked into place.

Single Tilt Pin On

Designed specifically for use with single tilt pin on Backhoe Loaders to be durable and long lasting

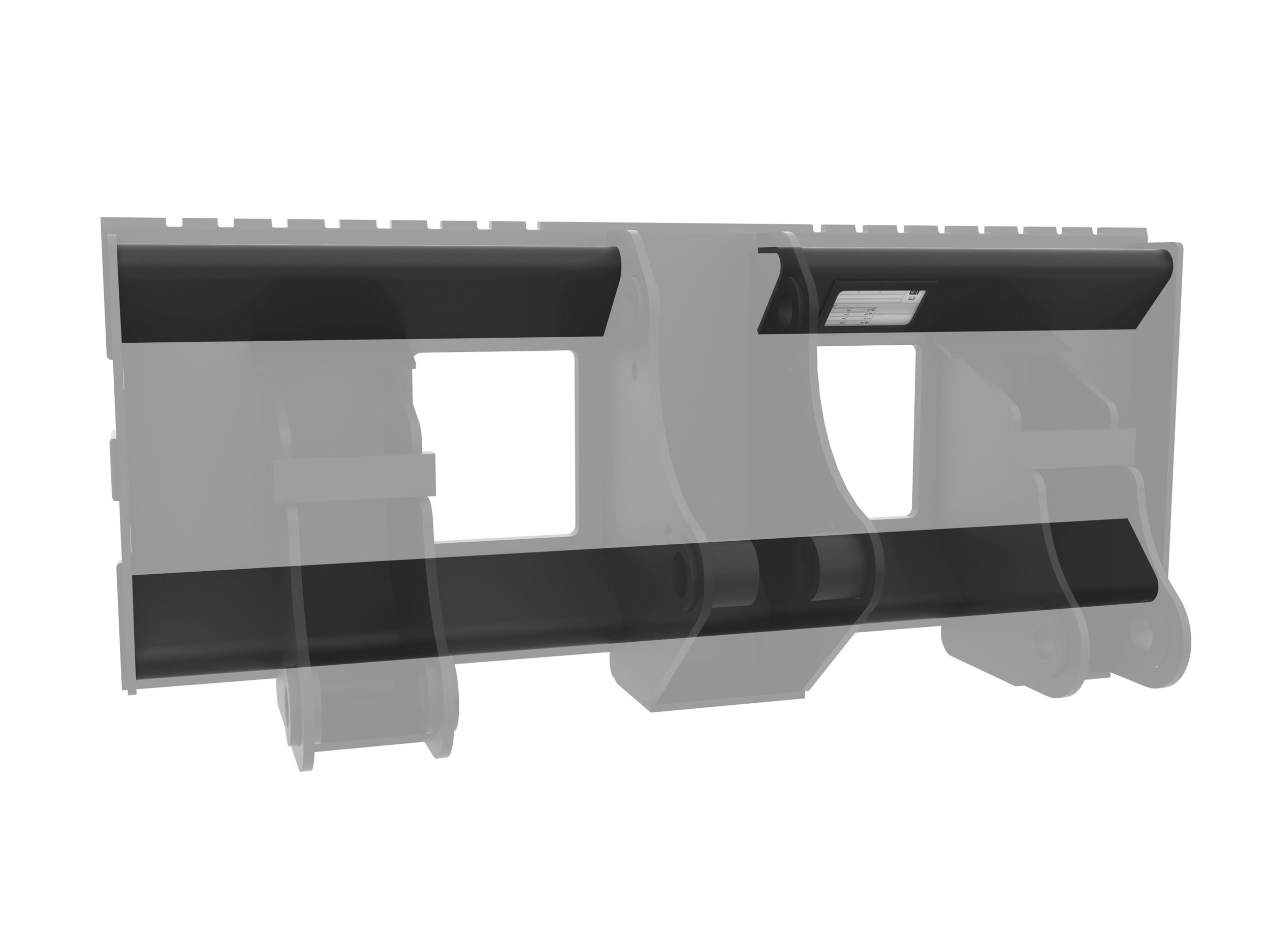

Torque Tubes

Torque Tubes provide extra strength and support carriage longevity.

  • Specs

Specs

Overview

Long Name:
1524 mm (60 in) Pin On Pallet Class III Fork Carriage
Name:
1524 mm (60 in), Pin On, Class III
Brand:
Cat
Status:
Current
Height
25 in / 635 mm
Width
60 in / 1524 mm
Overall Width
60 in / 1524 mm
Weight
597.2 lb / 270.9 kg
Length
17.4 in / 442 mm
Tine Spacing
442mm-1369mm (17.4in-53.9in)
Interface Type
Pin On

SEE HOW 1524 mm (60 in), Pin On, Class III COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.

Pallet Fork Carriages

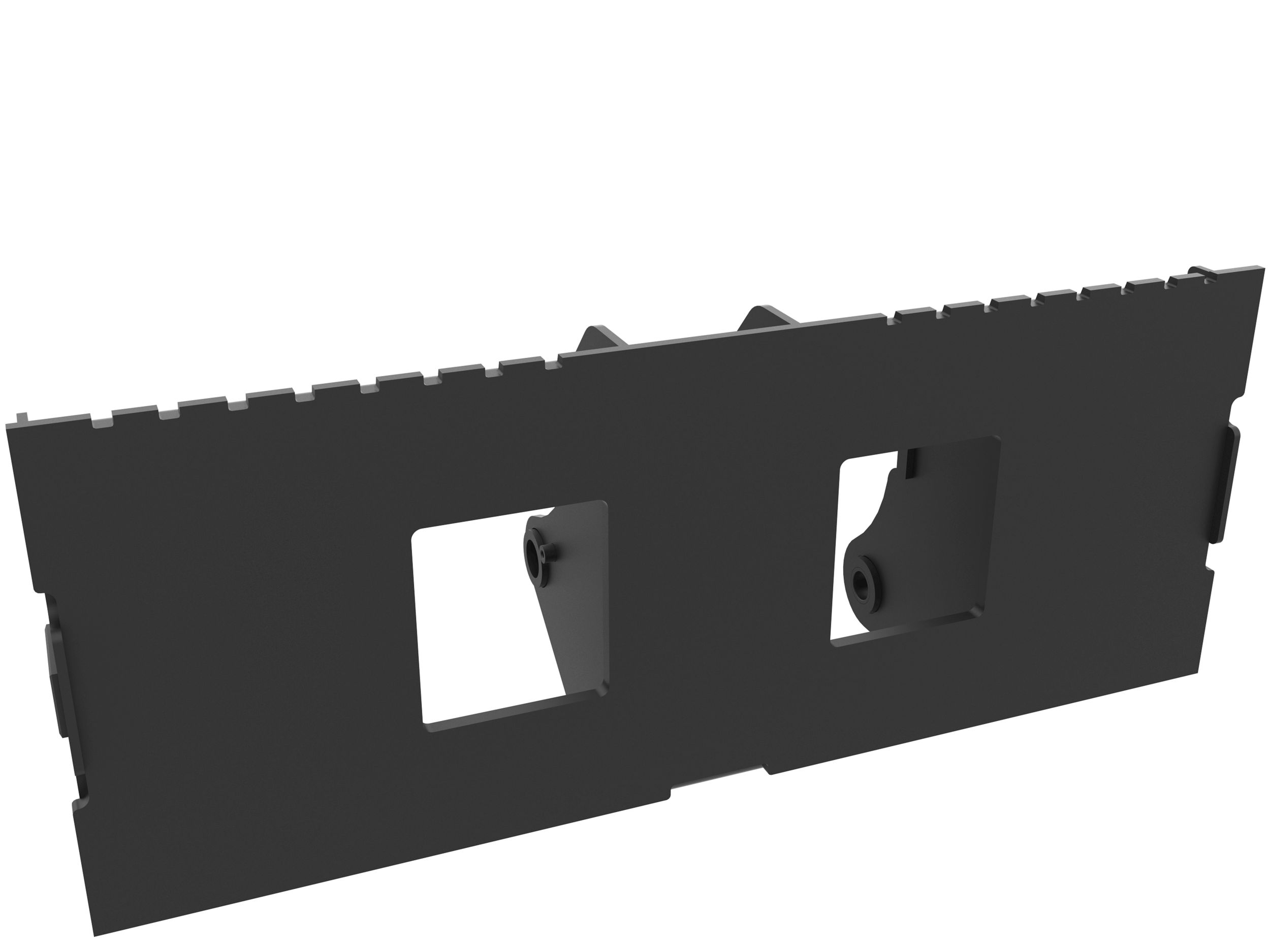

1524 mm (60 in), Pin On, Class III
Studio Shot
Brand
Cat
Status
Current
Height
25 in / 635 mm
Width
60 in / 1524 mm
Weight
597.2 lb / 270.9 kg
Length
17.4 in / 442 mm
Tine Spacing
442mm-1369mm (17.4in-53.9in)
Interface Type
Pin On
Selected Model
Pallet Fork Carriages

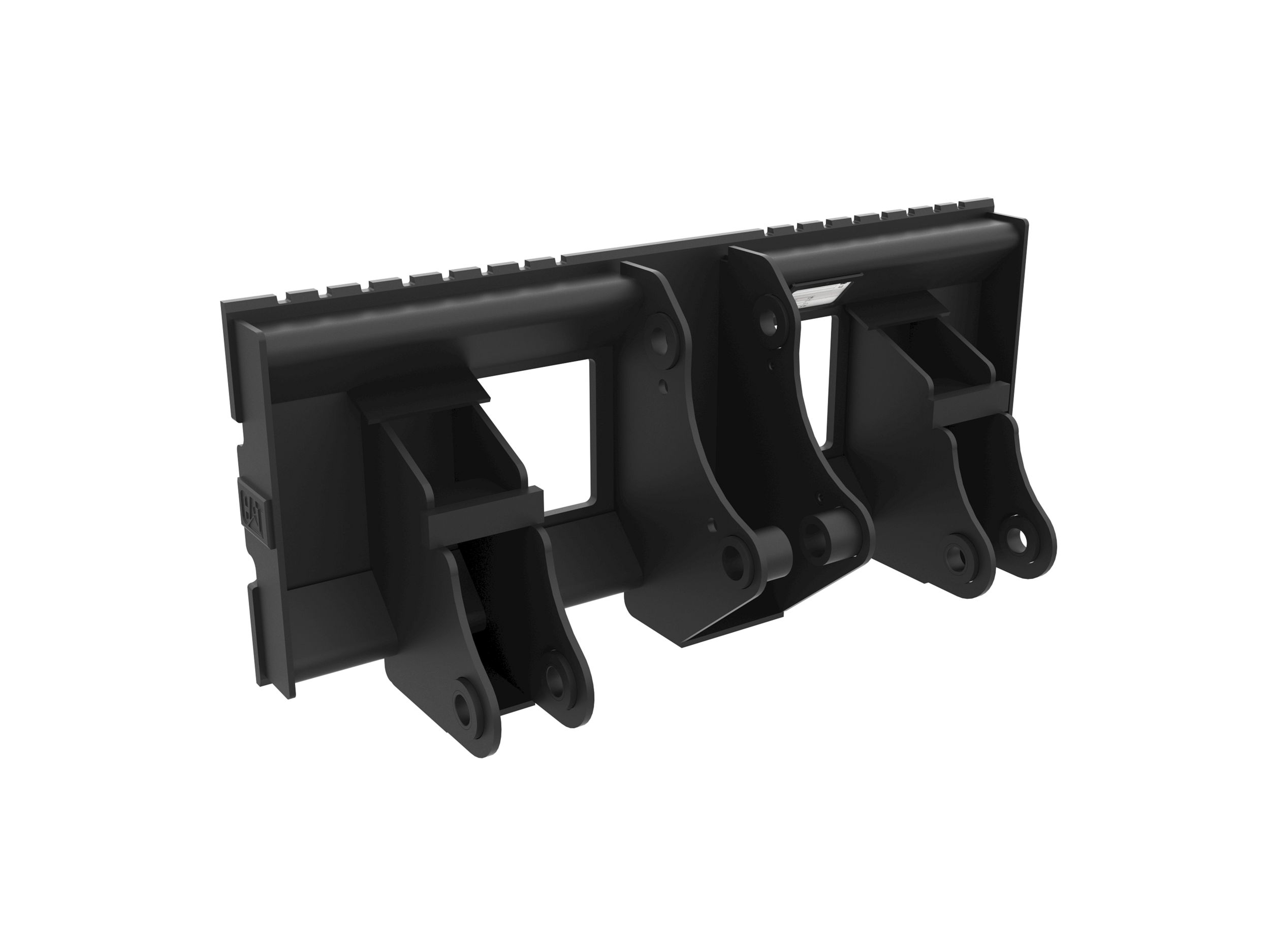

1524 mm (60 in), IT Coupler, Class III
Studio Shot
Brand
Cat
Status
Current
Height
37 in / 941 mm
Width
60 in / 1524 mm
Weight
1142 lb / 518 kg
Length
16 in / 406 mm
Tine Spacing
222 -1318 mm (8.8-52 in) centerline to centerline
Interface Type
IT Coupler
More Details
Pallet Fork Carriages
1550 mm (61 in), HPL-ISO Coupler, Class III
Studio Shot
Brand
Cat
Status
Current
Height
31.2 in / 793 mm
Width
61 in / 1550 mm
Weight
502.7 lb / 228 kg
Length
10.3 in / 261 mm
Tine Spacing
180-1320 mm (7-42 in) centerline to centerline
Interface Type
HPL-ISO Coupler
More Details
