400 mm (16 in), 1-2 Ton Mini Excavators

400 mm (16 in) Heavy Duty Ag Rake For 1-2 Ton Mini Excavators

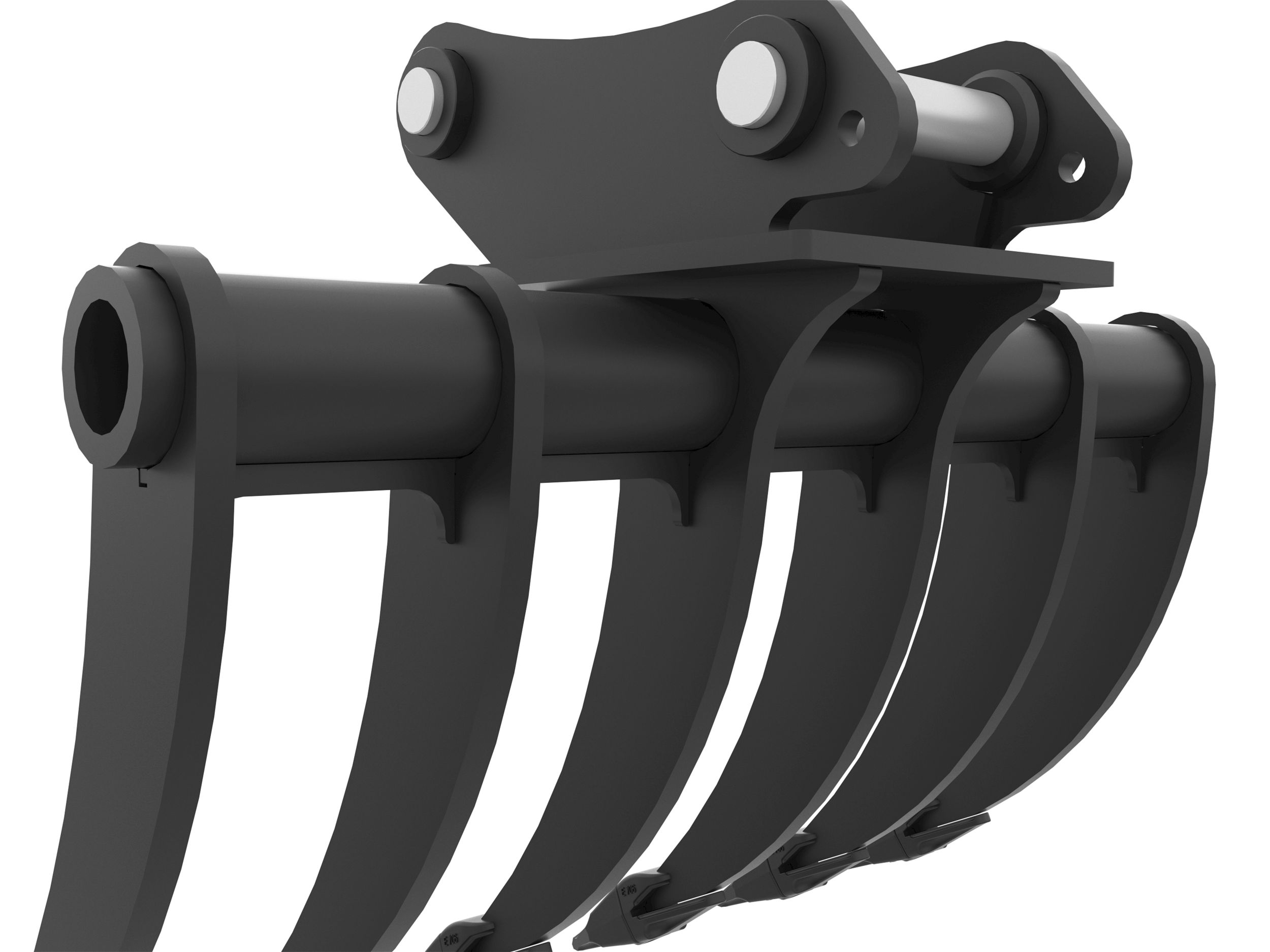

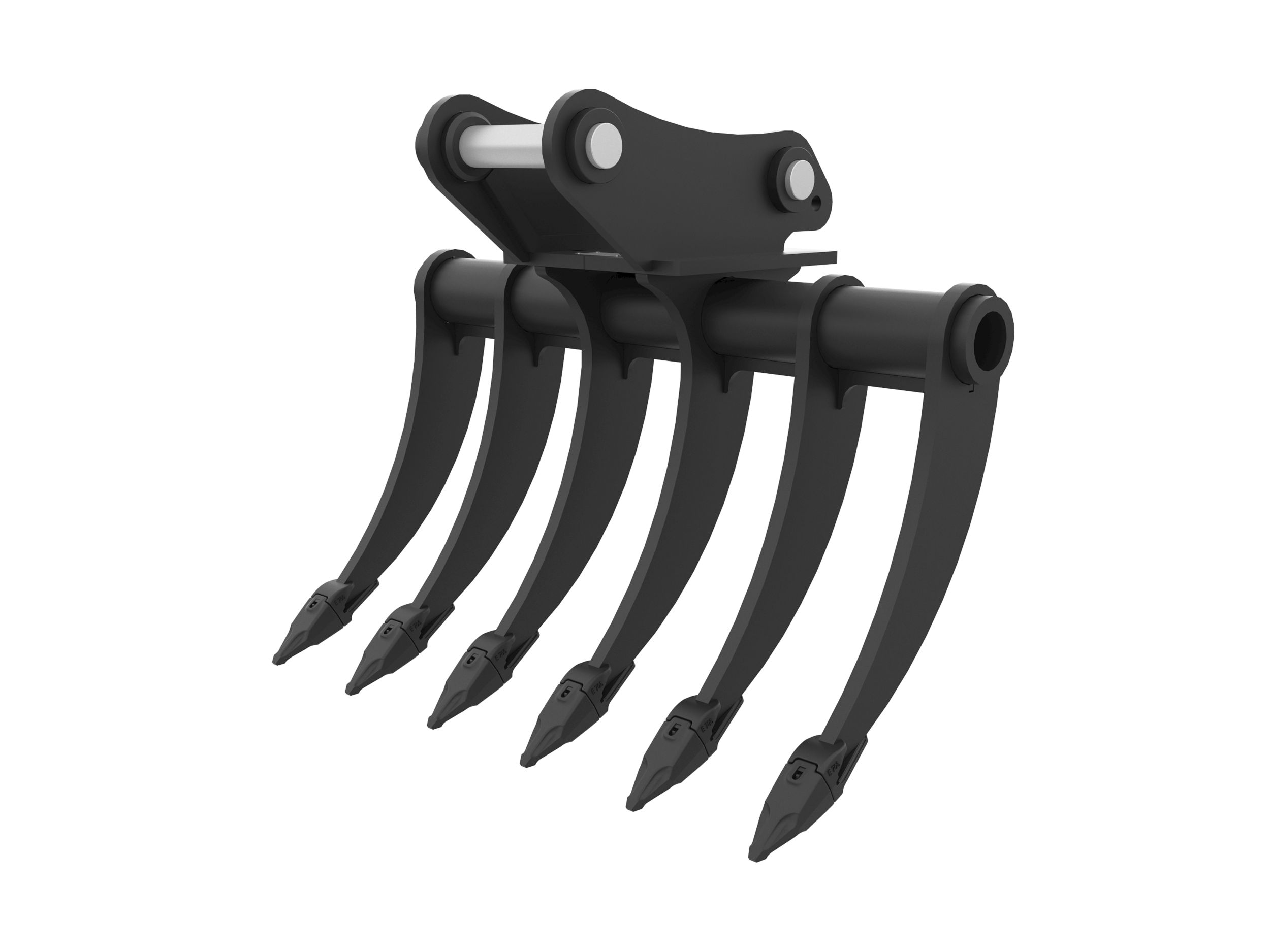

Studio Shot

DESCRIPTION

Cat® Heavy Duty Ag Rakes are designed to break up clumps, level the ground, and remove debris to prepare the perfect seedbed in banana, pineapple, and other fruit-growing environments.Purpose-built for fruit plantation applications, the Cat® Heavy Duty Ag Rake is designed to break up clumps, level the ground, and remove debris. It is essential for creating the perfect seedbed in banana, pineapple, and other fruit-growing environments. Its durable construction ensures long-lasting performance, even in the most demanding field conditions.

Heavy Duty Rake

Cat® heavy duty ag rakes are built with high strength steel and able to withstand extreme wear, which means you can use the tool longer without needing maintenance.

High Performance

With the specially designed profile, you can easily use it for removing roots, rubbish or tree stumps during your ground preparation.

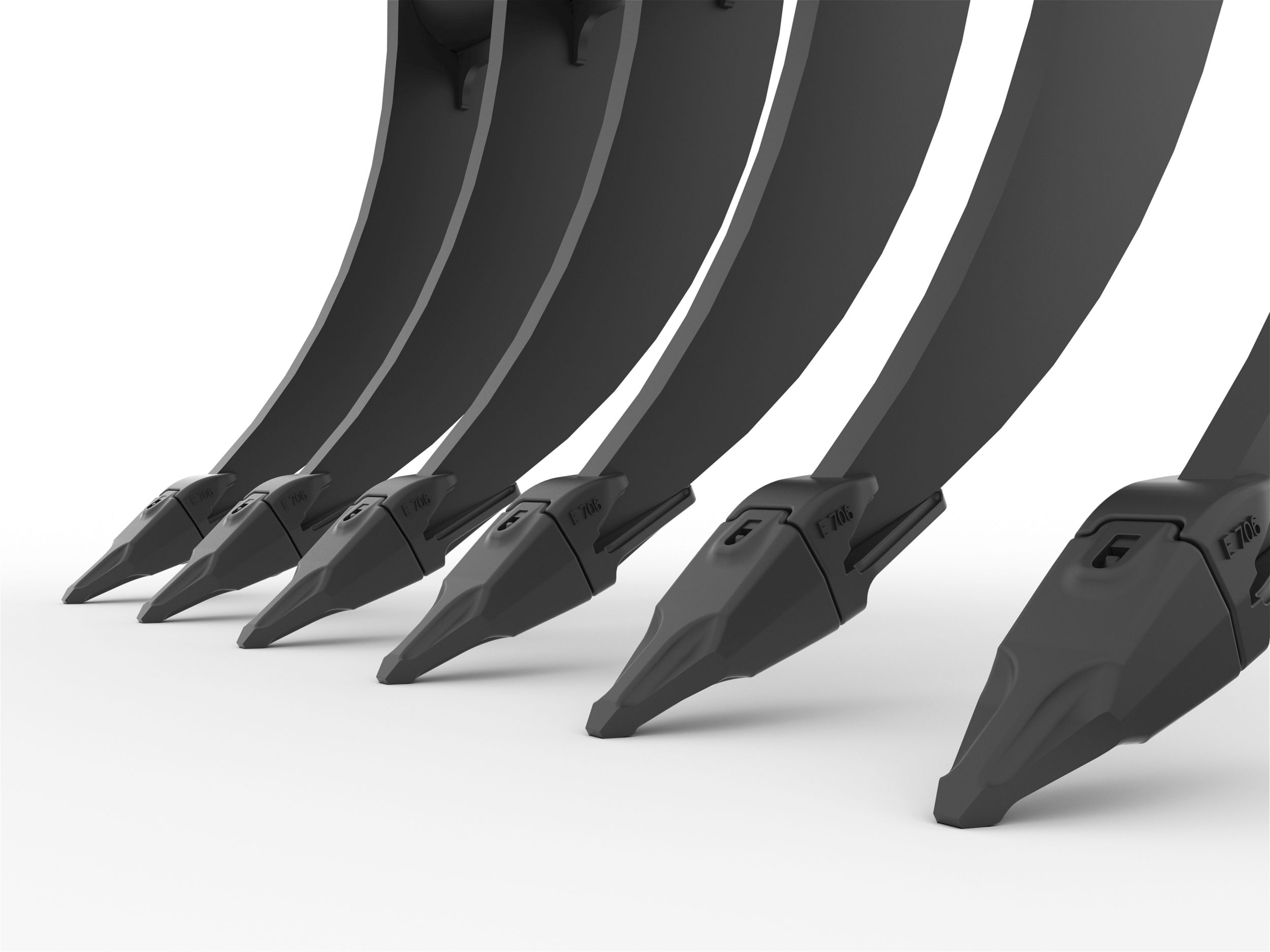

Replaceable Teeth

Replaceable teeth helps the rake last longer in harsh environments.

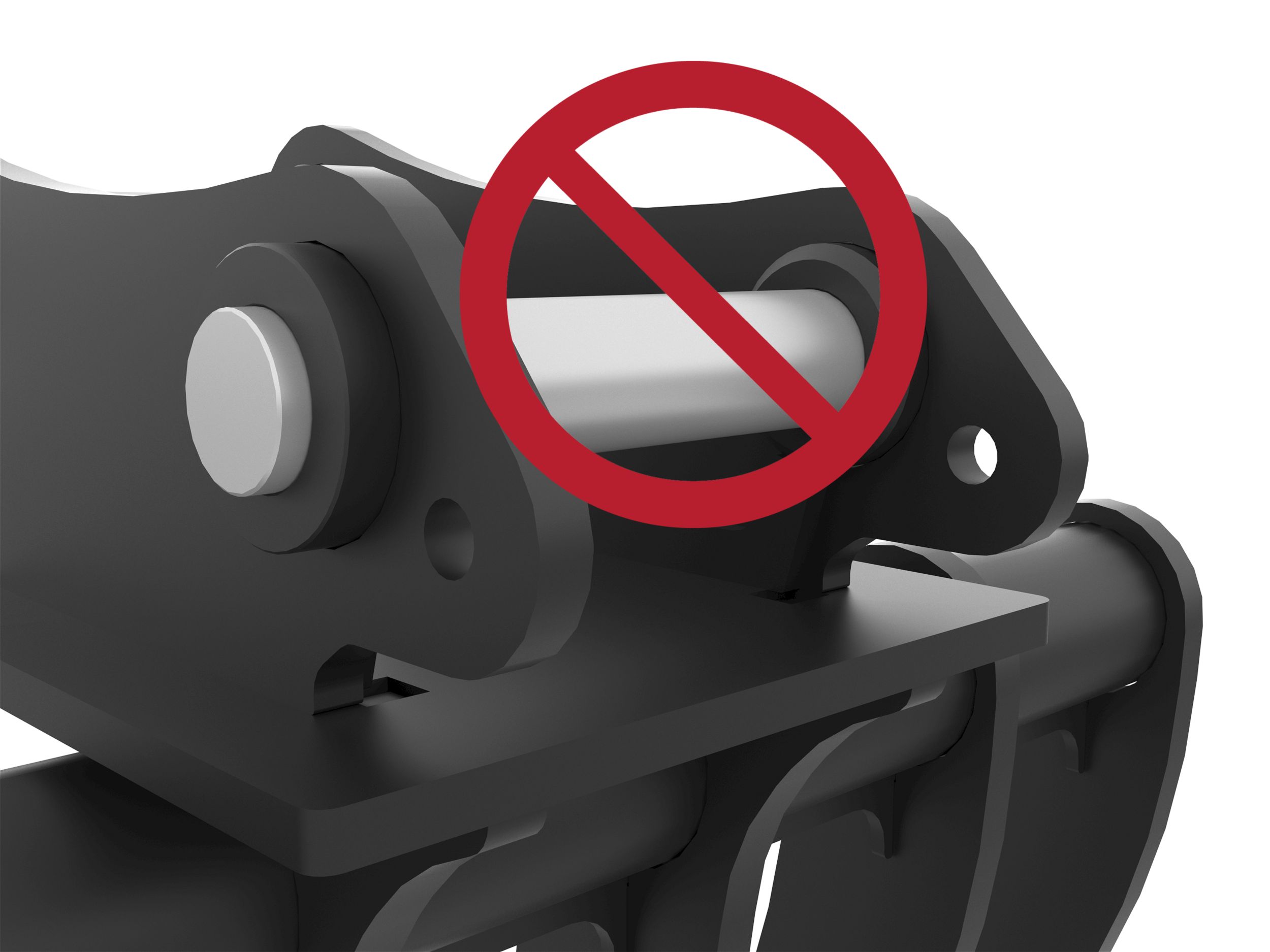

No Lift

These holes are used for manufacturing. They are not certified for lifting and should not be used as such.

  • Specs

Specs

Overview

Long Name:
400 mm (16 in) Heavy Duty Ag Rake For 1-2 Ton Mini Excavators
Name:
400 mm (16 in), 1-2 Ton Mini Excavators
Brand:
Cat
Status:
Current
Width
15.7 in / 400 mm
Weight
77.2 lb / 35 kg
Height
20.2 in / 512 mm
Length
15.1 in / 384 mm
Tine Spacing
6.2 in / 158 mm
Tine Thickness
0.7 in / 18 mm
Tip Radius
19.2 in / 487 mm
Number of Tines
3
Interface Type
Pin On (Pin Grabber)
