4m (12 ft), Standard TH Coupler
4m (12 ft) Truss Boom for Standard TH Coupler
DESCRIPTION
Lifts and places roof trusses, frames, beams and equipment.The Cat® Truss Boom is designed to lift and place materials such as roof trusses, frames and beams as well as equipment. The truss boom with its added horizontal and vertical reach allows for materials and equipment to be placed in hard-to-reach areas.Angled Design

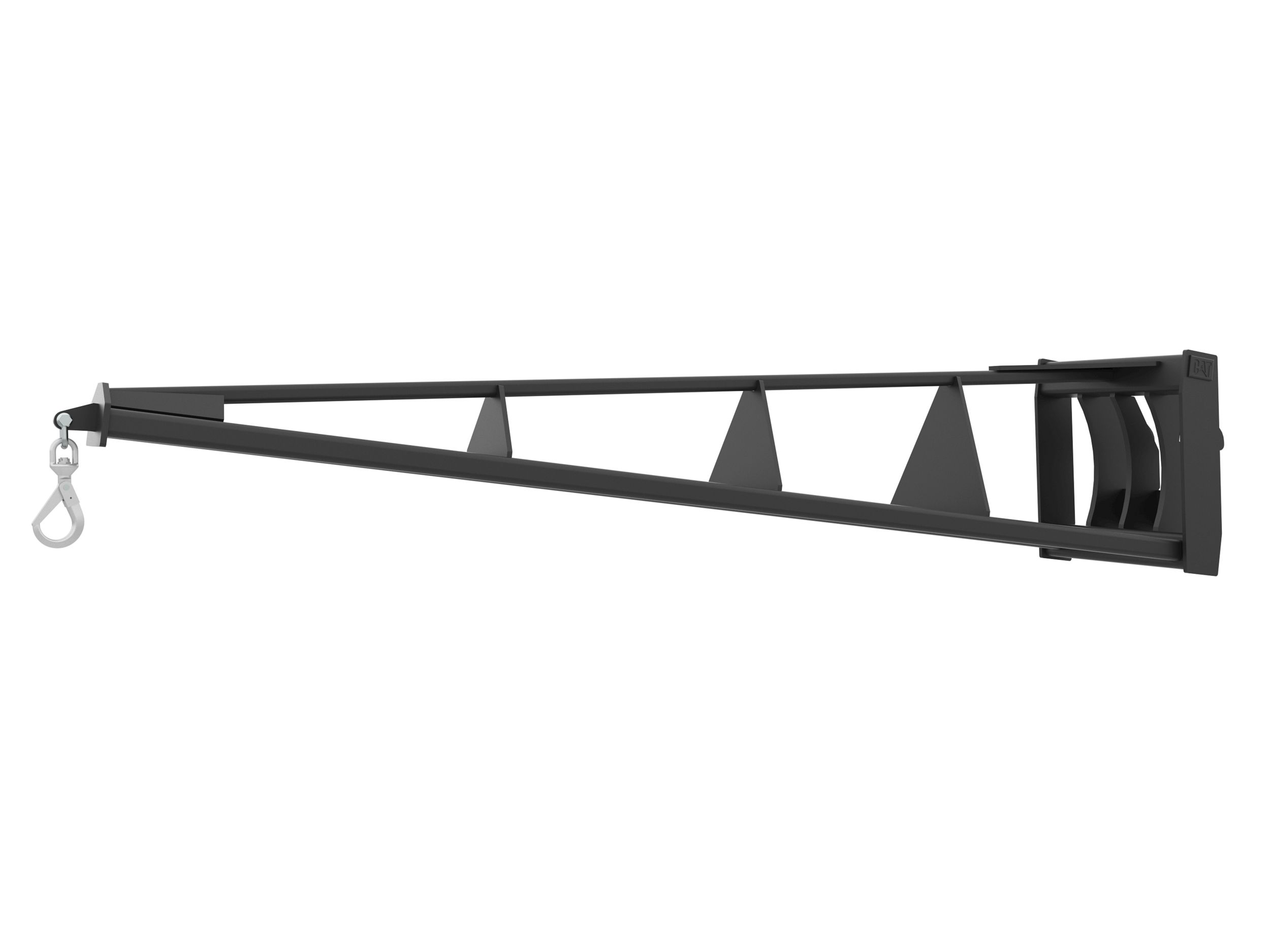

Angled upward design allows roof trusses to be transported with low boom height for stability and visibility.

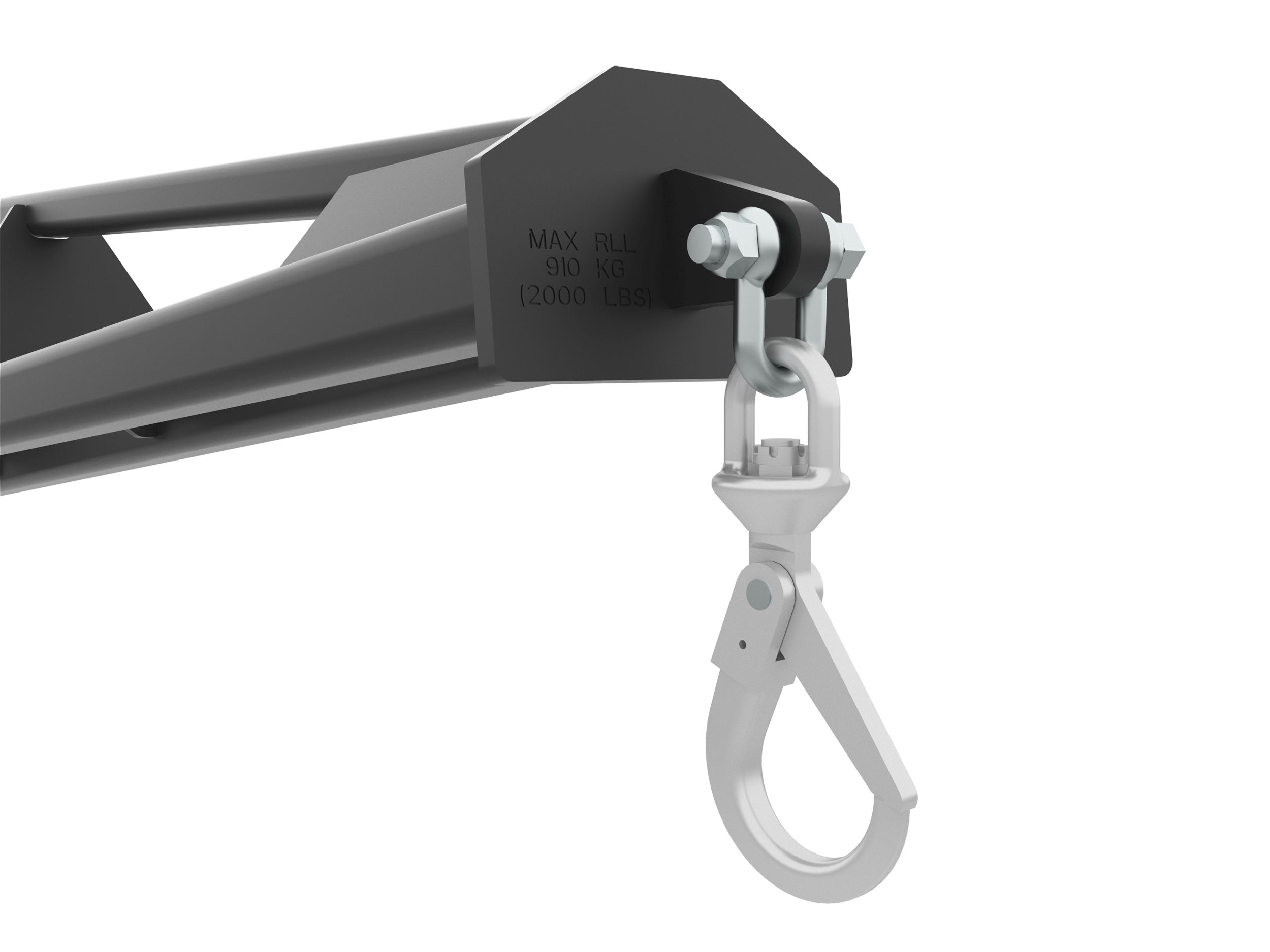

Lifting Hook
Robust lifting hook provides 2000 lbs (907.2 kg) of lifting capacity. Lifting capacity is also etched on to the tool.

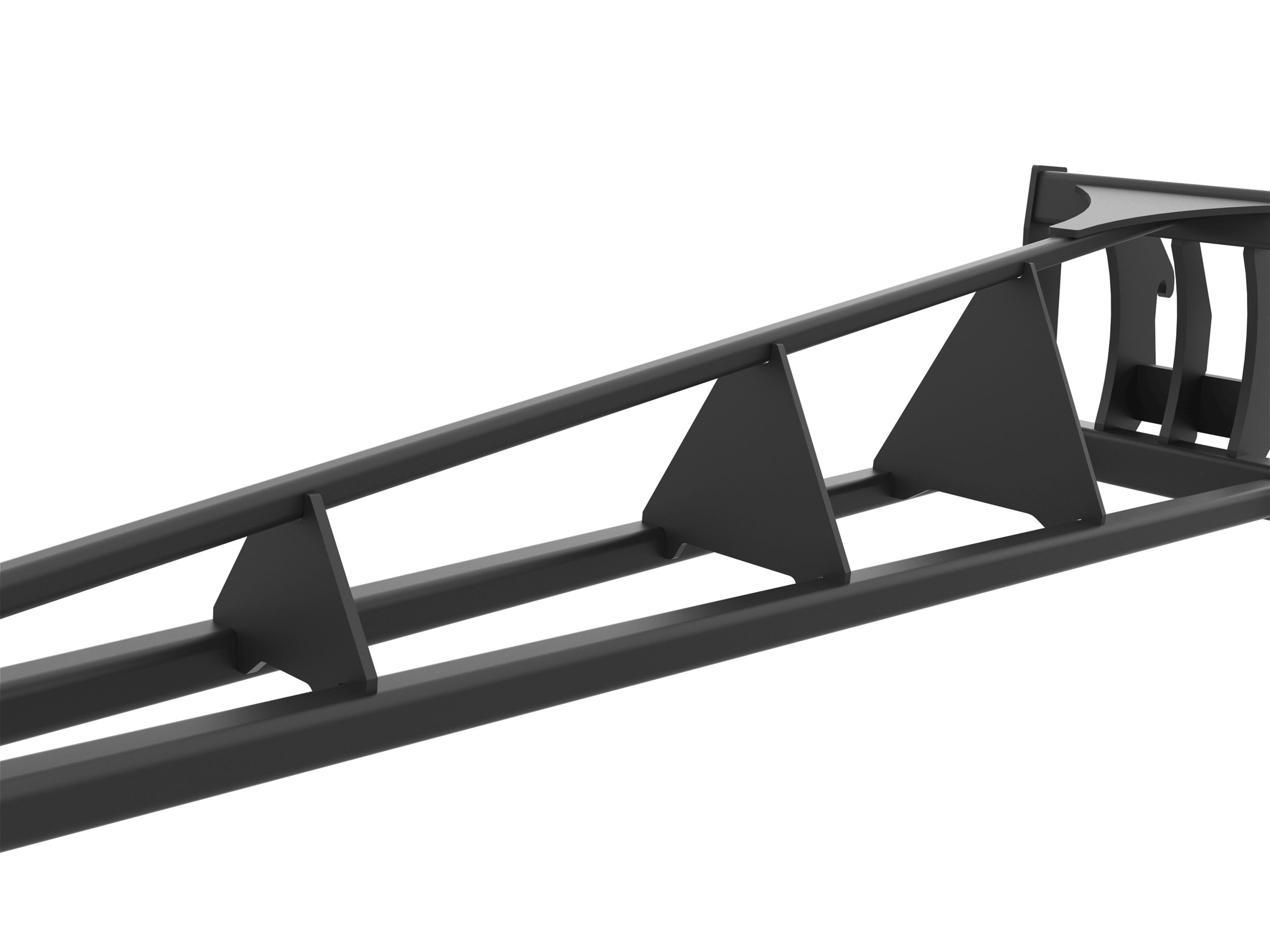

Structure
Triangle shaped structure allows for strong and stable load lifting.
- Specs
- Docs
Specs
Overview
Long Name:
4m (12 ft) Truss Boom for Standard TH Coupler
Name:
4m (12 ft), Standard TH Coupler
Brand:
Cat
Status:
Current
Overall Length
160.7 in / 4083 mm
Capacity
2000 lb / 907.2 kg
Width
30.3 in / 769 mm
Height
30.8 in / 782 mm
Weight
866.4 lb / 393 kg
Interface Type
Standard TH Coupler
SEE HOW 4m (12 ft), Standard TH Coupler COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
Truss Booms
4m (12 ft), Standard TH Coupler
- Brand
- Cat
- Status
- Current
- Overall Length
- 160.7 in / 4083 mm
- Capacity
- 2000 lb / 907.2 kg
- Width
- 30.3 in / 769 mm
- Height
- 30.8 in / 782 mm
Selected Model
Truss Booms
4m (12 ft), IT Coupler
- Brand
- Cat
- Status
- Current
- Overall Length
- 161.7 in / 4108 mm
- Capacity
- 2000 lb / 907.2 kg
- Width
- 30.3 in / 769 mm
- Height
- 30.8 in / 782 mm
Truss Booms
4m (13 ft) Truss Boom, IT Coupler
- Brand
- Cat
- Status
- Current
- Overall Length
- 4 m / 13.1 ft
- Capacity
- 1102.3 lb / 500 kg
- Width
- 33.5 in / 850 mm
- Height
- 31.9 in / 810 mm
