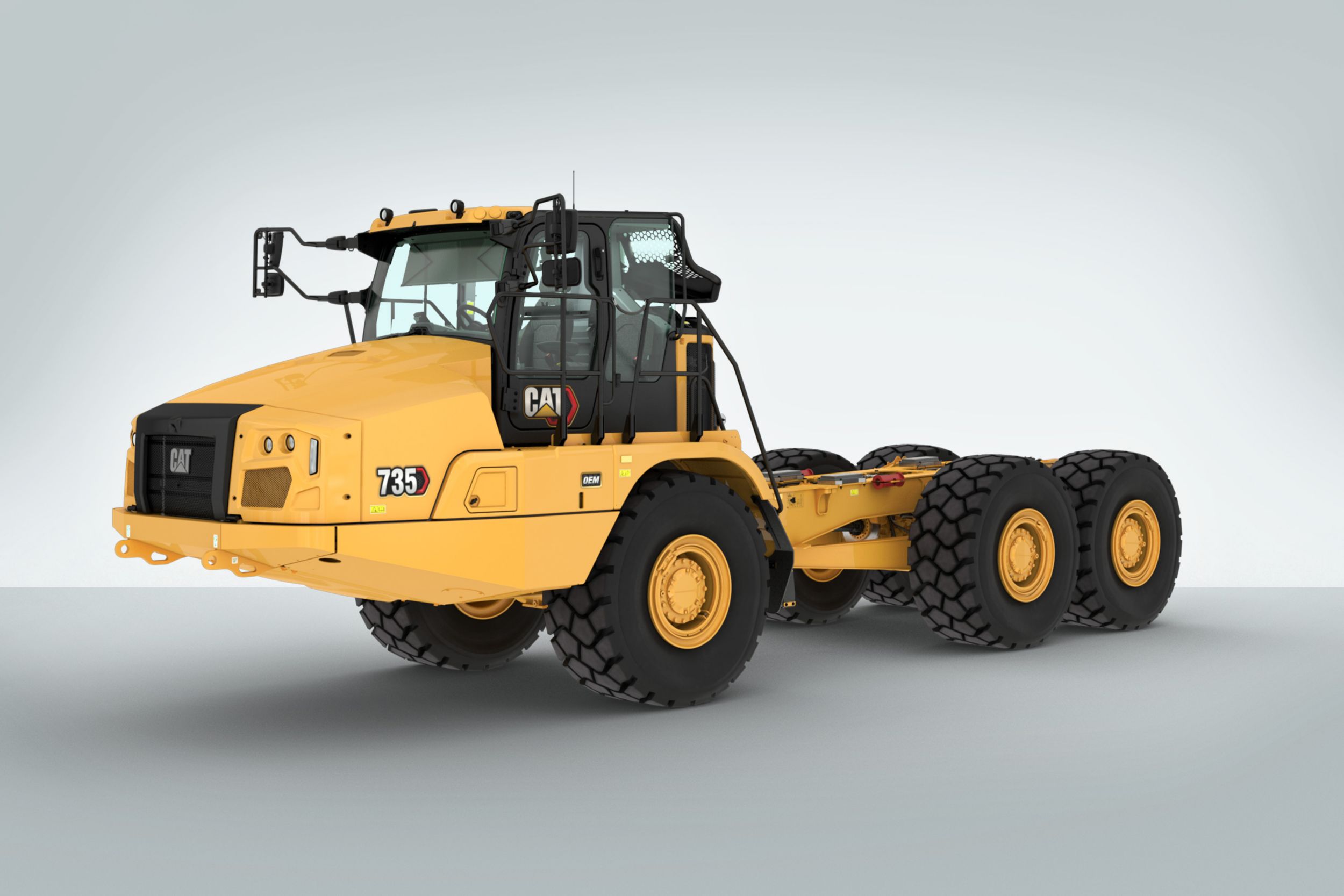

The Cat OEM 735 Bare Chassis is available in both standard and long wheel base. With up to a 38.4 tonnes (42.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking, and ride characteristics.

735 Bare Chassis

DESCRIPTION

The Cat® OEM 735 Bare Chassis is available in both standard and long wheel base. With up to a 38.4 tonnes (42.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking, and ride characteristics.The Cat® OEM 735 Bare Chassis is available in both standard and long wheel base. With up to a 38.4 tonnes (42.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking and ride characteristics.

The Cat 735 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Long Wheel Base

The 735 can be ordered with or without hoist cylinders, and in standard wheel base (SWB) or long wheel base (LWB) configurations through your local Cat dealer on the standard Articulated Truck price list.

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications. Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Service Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet. Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Specialty Body Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Forestry Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

  • Standard Equipment
  • Optional Equipment
  • Specs
  • Docs

Standard Equipment

  • For more information on 735 Bare Chassis options, please contact Caterpillar OEM Solutions at [email protected].
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Secondary steering – electro hydraulic
    • Seats:
      – Operator: fully adjustable, air suspension
      – Trainer: padded with lap belt
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Sun visor
    • Adjustable air vents
    • Retractable belt: Operator seat and second seat
    • Windows opening both sides, tinted
    • Windshield wiper and washer, two speed, intermittent (front)
    • Windshield wiper and washer, two speed (rear)
    • Touchscreen display incorporating the rearview camera video feed
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure warning
      – Seat belt warning
      – Secondary steering failure warning
      – Diesel Particulate Filter (DPF) regeneration filter
      – Machine Security System (MSS) ready
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind operator seat storage
      – Coat hook
    • Heater and defroster with four-speed fan
    • Tilt and telescopic steering wheel
    • Mirrors: extensive arrangement for improved visibility
    • Combined gear selection and hoist control lever
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
    • Air conditioning with R134A refrigerant
  • CAT TECHNOLOGIES
    • Product Link
    • Cat Detect with Stability Assist
  • ELECTRICAL AND LIGHTING
    • Horn
    • Electrical system: 24-volt, 5A 24- to 12-volt converter
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
    • Main disconnect switch
    • Batteries (two) maintenance free
    • Remote starting receptacle (cables not included)
  • POWERTRAIN
    • Retarder: engine compression brake
    • Cat C13 engine
    • Auto shift six-speed forward and single speed reverse transmission
    • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Three axle, six-wheel drive
  • SAFETY
    • Reverse alarm
    • Rearview camera
    • ROPS/FOPS cab
  • GUARDS
    • Axle
    • Crankcase
    • Rear window
    • Radiator
  • OTHER STANDARD EQUIPMENT
    • Vandalism protection: lockable caps
    • Sound suppression (only standard in Europe)
    • Tires, six 750/65 R25
    • S·O·S sampling valves

Optional Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPTIONAL EQUIPMENT
    • Roof mounted High Intensity Discharge (HID) work lights
    • Cold weather coolant –51° C (–60° F)
    • Machine Security System (MSS)
    • Exhaust heated body
    • Flashing LED beacon
    • Heated/cooled seat
    • Product Link Elite: PLE641 (cellular). Product Link is optional.
    • Fast fuel fill
    • Bluetooth radio stereo system
    • Window blinds
    • Cold weather start attachment
    • Cat Production Measurement payload monitoring system
    • Engine block heater
    • Auto lube installation for automatic greasing of bearings
    • Four-point seat belt
    • Heated rearview motorized mirrors
    • Sound suppression (only standard in Europe)
    • Wheel chocks
    • Infrared glass – high ambient cab
    • Fuel additive – anti-waxing
    • Ether start
    • Bare chassis (no body) standard wheel base

Specs

Overview

Long Name:
735 Bare Chassis Articulated Truck
Name:
735 Bare Chassis
Brand:
Cat
Status:
Current

Engine

Engine Model
Cat® C13
Bore
5.1 in / 130 mm
Stroke
6.2 in / 157 mm
Displacement
736 in³ / 12.5 l
Gross Power - SAE J1995
434 HP / 324 kW
Net Power - SAE J1349
424 HP / 316 kW
Peak Engine Torque Gross (SAE J1995)
1614 lb/ft / 2188 N·m
Peak Engine Torque Speed
1200 r/min / 1200 r/min
Peak Engine Torque Net (SAE J1349)
1597 lb/ft / 2165 N·m
Net Power - ISO 14396
447 HP / 333 kW
No Engine De-rating Required Below
12500 ft / 3810 m
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Cat® C13

Wheel Base Length

Standard Wheel Base
156.7 in / 3979 mm
Long Wheel Base
215.2 in / 5465 mm

Weights

Rated Payload
43.1 ton (US) / 39.1 t

Transmission

Forward - 1
5 mile/h / 8 km/h
Forward - 2
9 mile/h / 15 km/h
Forward - 3
14 mile/h / 23 km/h
Forward - 4
22 mile/h / 35 km/h
Forward - 5
30 mile/h / 48 km/h
Forward - 6
35 mile/h / 57 km/h
Reverse - 1
6 mile/h / 9 km/h

Service Refill Capacities

Fuel Tank
108.8 gal (US) / 412 l
Cooling System
21.9 gal (US) / 83 l
Hydraulic System
29.1 gal (US) / 110 l
Engine Crankcase
10 gal (US) / 38 l
Transmission
12.3 gal (US) / 56 l
Final Drives/Differential
33 gal (US) / 125 l
Output Transfer Gear Box
5.5 gal (US) / 25 l
DEF Tank
5.3 gal (US) / 20 l

Sound Levels

Interior Cab
72 dB(A) / 72 dB(A)

Standards

Brakes
ISO 3450:2011
Cab - FOPS
ISO 3449:2005 Level II
Cab - ROPS
ISO 3471:2008
Steering
ISO 5010:2019

Steering

Lock to Lock
4.75 seconds at 60 rpm

Turning Circle

Turning Dimensions - SAE Turning Radius
294 in / 7470 mm
Turning Dimensions - Inside Radius
149 in / 3793 mm
Turning Dimensions - Aisle Width
212 in / 5393 mm
Turning Dimensions - Clearance Radius
318 in / 8075 mm
Turning Dimensions - Steer Angle - Left/Right
45°
Note
Dimensions are for machines equipped with 750/65 R25 tires.
