CS5

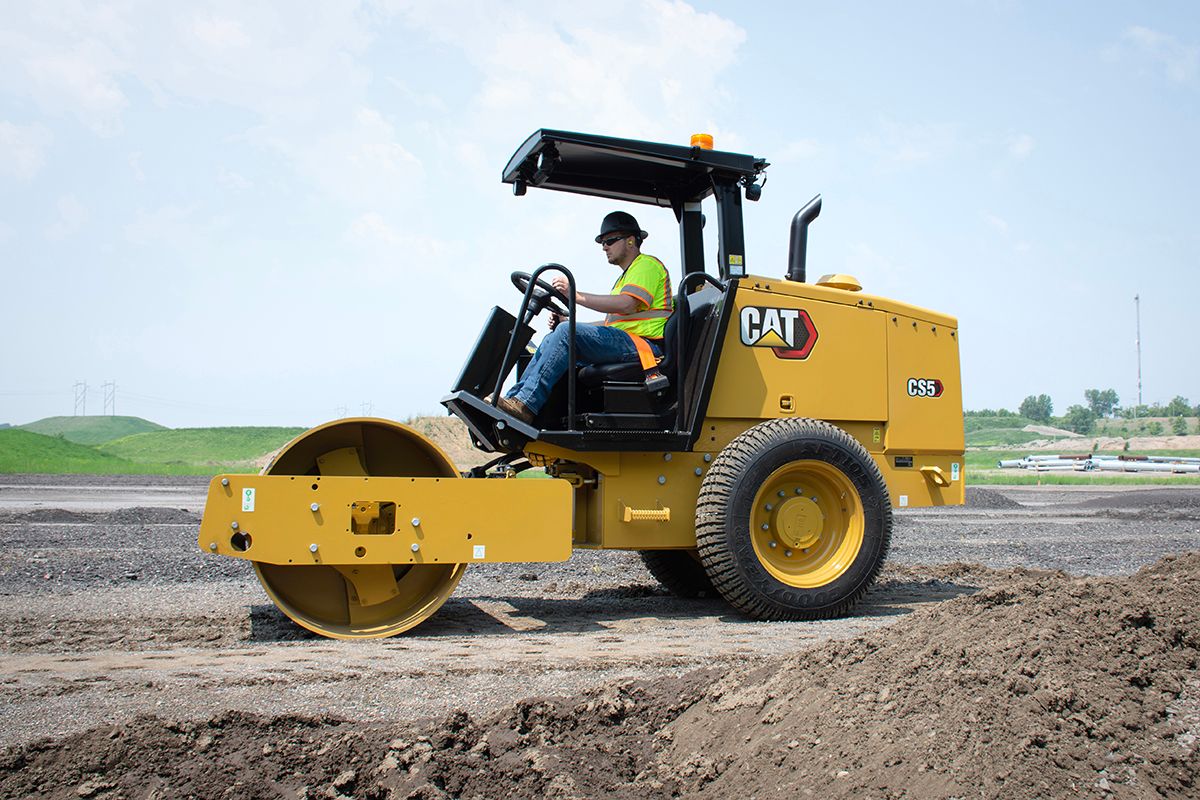

CS5 Vibratory Soil Compactor
The 5-tonne Cat® CS5 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications. The CP5 replaces the CP34.
DESCRIPTION
The Cat® CS5 Vibratory Soil Compactors are ideally suited for granular soil applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.Cat® CS5 and CP5 Vibratory Soil Compactors
Propel System
- Powered by a Cat® C3.4B engine that meets U.S. EPA Tier 4 Final emission standards.
- Built around a dual pump propel system, two pumps provide separate dedicated flow to the drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse.
- The limited slip differential provides balanced tractive effort and smooth torque transfer to both rear wheels.
- The CS5 has infinitely variable speed range for maximum torque when grade climbing, plus the ability to move quickly over longer distances.
- High travel speed up to 8.8 km/h (5.5 mph).
Vibratory System
- High centrifugal force and amplitude provides superior compactive effort and exceptional productivity.
- A vibratory frequency of 35.8 Hz (2150 vpm) combined with optimal drum weight, enables the operator to achieve density in fewer passes.
- The large heavy-duty bearings for the weight shaft are designed for high compactive forces.
- Heavy-duty isolation mounts allow more force to be transmitted to the ground and less vibration to the drum yoke.
Comfortable and Ergonomic Operator Station
- A rear vision camera with large color touchscreen display enhances visibility for more complete operator control and safety.
- The adjustable operator’s seat has an integrated multi-function LCD display and control console, flip-up arm rests and a 76 mm (3 in) wide retractable seat belt.
- Operational gauges and basic diagnostics are displayed on the integrated LCD screen.
- An easy to reach propel lever is located to the right of the operator’s seat for convenient and accurate machine control.
- Single lever control for propel and vibratory ON/OFF provides simple, low-effort operation.
- Outstanding visibility to the front and rear of machine.
- Low sound levels and vibration for greater operator comfort and productivity.
- The operator’s station is isolated with heavy-duty rubber mounts to reduce machine vibration transmitted to the operator.
Compact Size for Specific Applications
- The narrow machine width of 1.4 m (4.6 ft) is ideal for working in trench applications or job sites with limited space.
- The machine weight is good for light compaction of uniform layers over sewer and water pipes.
- The propel system allows the operator to stop, maintain machine position and change directions while on a grade.
- A short turning radius provides good maneuverability in confined work areas.
Reliability and Serviceability
- Visual indicators allow easy check of radiator coolant, hydraulic oil tank level and air restriction indicator.
- The operator’s station and platform tilts forward to allow convenient access to the hydraulic pumps.
- A rear-mounted cooling system provides easy access for cleaning.
- Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 1000 hours eccentric housing,
- 3000 hours hydraulic oil, and 12000 hours coolant.
- Quick-connect hydraulic test ports simplify system diagnostics.
- Ecology drains provide an environmental method to drain fluids on the radiator, engine oil pan, hydraulic and fuel tank.
- Secure hose routing with polyethylene blocks reduce rubbing and extend service life.
- Nylon braided wrap and all-weather connectors ensure electrical system integrity. Electrical wiring is color-coded, numbered and labeled with component identifiers to simplify troubleshooting.
- Maintenance-free Cat batteries are mounted in the rear of the machine are accessible through the swing out rear grill. Cat batteries are specifically designed for maximum cranking power and protection against vibration.
Sustainability
- The Cat C3.4 is available in configurations that meet U.S. EPA Tier 4 Final emissions standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. - A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Performance and safety can be augmented with a standard camera that is viewed on an in-cab display.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Standard Equipment
- Optional Equipment
- Specs
- Docs
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat
- Adjustable Seat with Integrated Console
- LCD Display with Lockable Vandalism Guard
- Rear Vision Camera System with Color Touchscreen Display
- High Visibility 76 mm (3 in) Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
- VIBRATORY SYSTEM
- Smooth Drum
- Single Amplitude, Single Frequency
- Single Adjustable Steel Scraper
- POWERTRAIN
- Cat® C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator / Hydraulic Oil Cooler
- Dual Braking System
- Single-Speed Hydrostatic Transmission
- Limited Slip Differential
- ELECTRICAL
- 12 volt Electrical System
- 120 ampere Alternator
- 600 Cold-cranking Amps Battery Capacity
- OTHER
- Lockable Engine Enclosure, Hydraulic and Fuel Tanks
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
- Halogen Working Lights (4)
Optional Equipment
Specs
Overview
Long Name:
CS5 Vibratory Soil Compactor
Name:
CS5
Brand:
Cat
Status:
Current
Engine
Gross Power
74.6 hp / 55.6 kW
Engine Power - ISO 14396
74.4 hp / 55.5 kW
Net Power - ISO 9249
68.3 hp / 50.9 kW
Net Power - SAE J1349:2011
67.5 hp / 50.3 kW
Note (1)
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model
Cat® C3.4B
Emissions
U.S. EPA Tier 4 Final
Stroke
4.3 in / 110 mm
Bore
3.9 in / 99 mm
Weights
Operating Weight - With ROPS/FOPS Canopy
9800 lb / 4445 kg
Weight - Drum with ROPS/FOPS Canopy
4497 lb / 2040 kg
Note (1)
Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.
Vibratory System
Nominal Amplitude - High
0.051 in / 1.3 mm
Centrifugal Force - Maximum
17535 lb / 78 kN
Static Linear Load - With ROPS/FOPS Canopy
90.2 lb/in / 16.1 kg/cm
Dimensions
Compaction Width
50 in / 1270 mm
Overall Length
13.6 ft / 4.2 m
Overall Width
4.6 ft / 1.4 m
Maximum Height
8.3 ft / 2.5 m
Drum Diameter
40 in / 1016 mm
Wheel Base
7.3 ft / 2.2 m
Operating Specifications
Ground Clearance
13.7 in / 348 mm
Curb Clearance
13.5 in / 344 mm
Turning Radius - Inside Drum Edge
8.6 ft / 2.6 m
Travel Speed - Maximum
5.5 mile/h / 8.8 km/h
Service Refill Capacities
Fuel Tank Capacity
29.9 gal (US) / 113 l
Cooling System
4.8 gal (US) / 18.3 l
Engine Oil - With Filter
2.4 gal (US) / 9 l
Eccentric Weight Housings (combined)
14 gal (US) / 53 l
Axle and Final Drives
1.9 gal (US) / 7.1 l
Hydraulic Tank
10.6 gal (US) / 40 l
Sustainability
Recyclability
97%
