TH0842 Telehandler

The Next Generation Cat® TH0842 Telehandler, with its maximum lift height of 12.8m/42.1ft and maximum forward reach of 8.4m/27.6ft, helps you complete all your lifting and material handling needs. Operate this telescopic handler with confidence by utilizing the pilot controlled joystick. Thanks to the extended service intervals, you have more time for the work that matters.

TH0842 Telehandler

DESCRIPTION

The Next Generation Cat® TH0842 Telehandler is focused on safety and ease of operation, with extended service intervals so it is ready to work when you are.

More than a machine – Cat Telehandlers are an extension of you.

Next Generation Cat® Telehandlers At Work

Short Overview of the Next Generation Cat® Telehandlers

Overview of the Next Generation Cat® Telehandlers

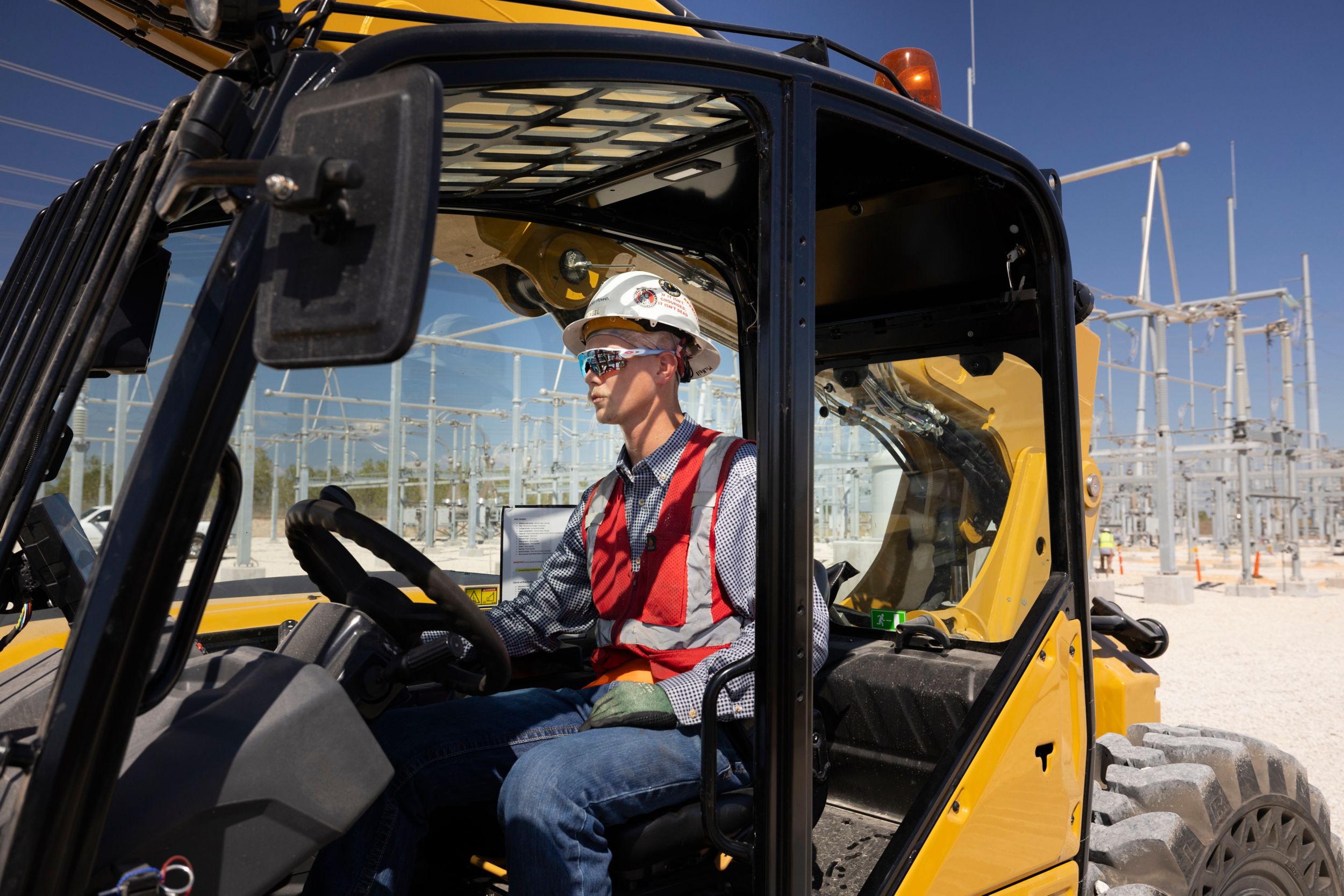

Comfortable Operator Station

Cat Telehandlers offer a roomy operator station, with standard features like a tilt steering column, dual charging ports, cupholder, and options like an enclosed cab with air conditioning and a top window sunshade to deliver excellent comfort when operating.

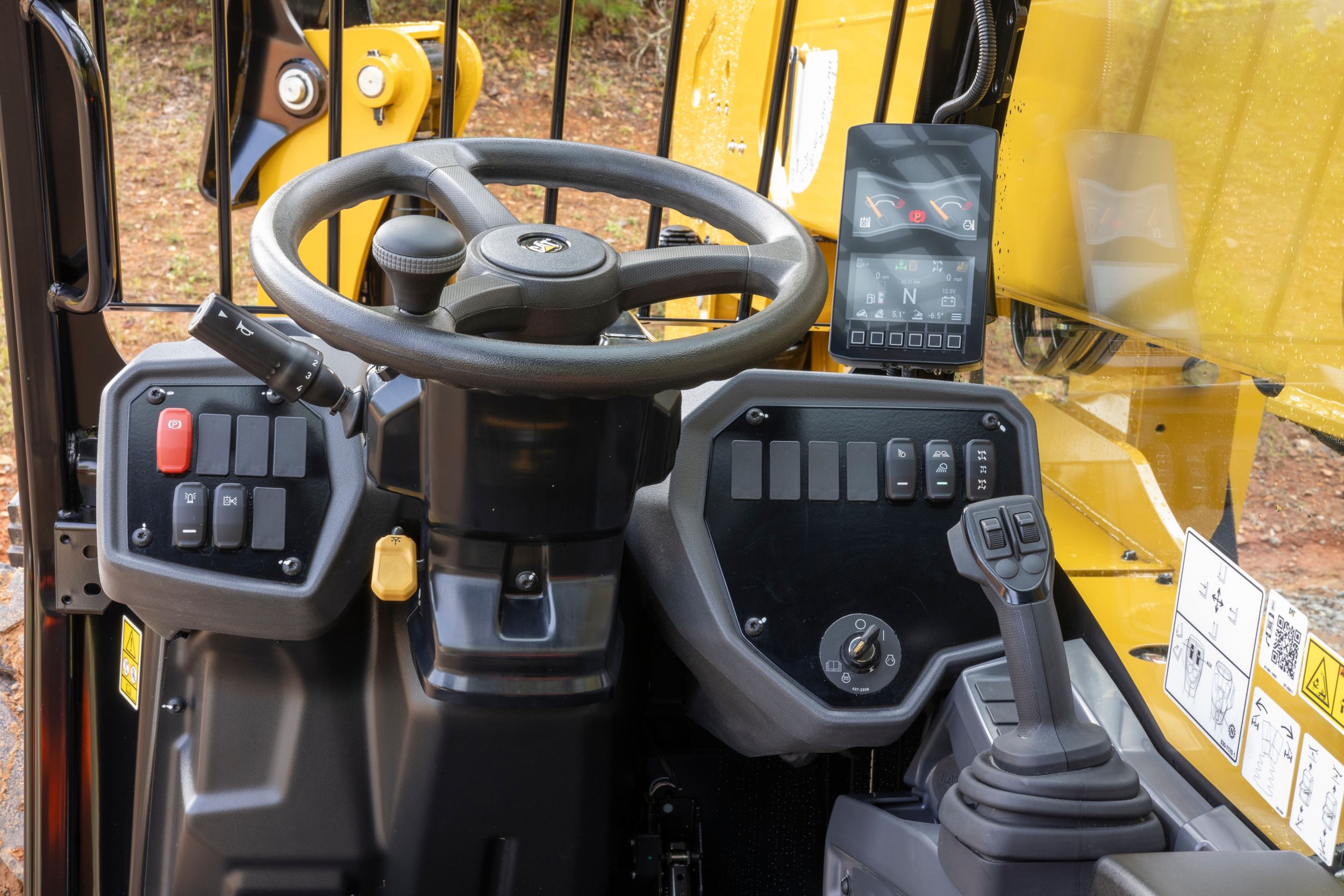

Easy To Operate

Pilot controlled joystick with excellent multi-function capability, makes the Cat Telehandler easy to use. The intuitive LCD monitor provides easy to read machine information, with a choice of languages, and delivers a standard multi-operator code security system.

Safety On The Job Site

Your safety is our top priority and the Cat Telehandler is designed to help keep you safer on the job. Standard equipment like the load stability indication (LSI) system, operator presence seat switch, rearview camera, high-visibility orange seat belt, and optional features such as the seat belt reminder system and hydraulic lockout switch, are just a few of the safety features we’ve built into the machine.

Simple Service For More Uptime

With extended service intervals, spend more time working and less time on maintenance. Daily check points are at ground level with grouped service points, and an easy-to-use service tool that allows quick checks of the chain for tension, link wear, or stretching. And rest easy with the standard 5-year/5,000-hour warranty for the main frame and boom.

Lower Operating Costs

Equipped with features such as 500-hour greasing interval, 500-hour boom maintenance interval, 3,000-hour hydraulic oil, 6,000-hour extended life coolant, engine idle shutdown, and efficient hydraulics with a variable displacement pump, the Cat Telehandler was designed to help reduce your operating costs.

Cat Attachments

Combining a wide selection of Cat Telehandler attachments with either the industry-standard TH coupler or the Integrated Tool Carrier (IT) coupler, the Next Generation Cat Telehandlers deliver exceptional versatility to meet the varied demands of today's job sites.

  • Standard Equipment
  • Optional Equipment
  • Specs
  • Docs

Standard Equipment

Optional Equipment

  • ENGINE
    • 86 kW (115 hp)
  • COLD WEATHER
    • Cold Weather Package
    • Dual Battery, heavy duty
    • Engine Block Heater
    • Ether Starting Aid
  • OPERATOR STATION
    • Enclosed Cab, heat
    • Enclosed Cab, heat, air conditioner
  • OPERATOR SEAT
    • Seat – Mechanical Suspension Plus
  • SEAT BELT
    • Seat belt – 75 mm (3 in)
    • Seat belt with Indicator – 75 mm (3 in)
  • OPERATOR STATION ACCESSORIES
    • Security, Bluetooth® key
    • Hydraulic lockout switch
    • Wiper, rear (enclosed cab only)
    • Wiper, roof (enclosed cab only)
    • Sunshade (top window)
    • Padlocks (set of 4)
  • FENDERS
    • Fenders (4 Wheels)
  • GUARDING
    • Window guard, front
    • Window guard, top
  • OTHER OPTIONS
    • Boom prop
  • LIGHTS
    • Beacon
    • Roading lights
  • TIRES
    • Galaxy – pneumatic directional
    • Camso – solid directional
    • Maxam – solid non-directional
  • ATTACHMENT COUPLER
    • IT Coupler (Manual)
    • IT Coupler (Hydraulic)
  • AUXILIARY HYDRAULIC CONNECTIONS
    • Twist to connect hydraulic quick disconnects
  • CARRIAGE
    • Standard – 1270 mm (50 in)
    • Standard – 1829 mm (72 in)
    • Side Tilt/Rotating – 1270 mm (50 in)
    • Side Tilt/Rotating – 1829 mm (72 in)
    • Hydraulic Fork Positioner – 1829 mm (72 in)

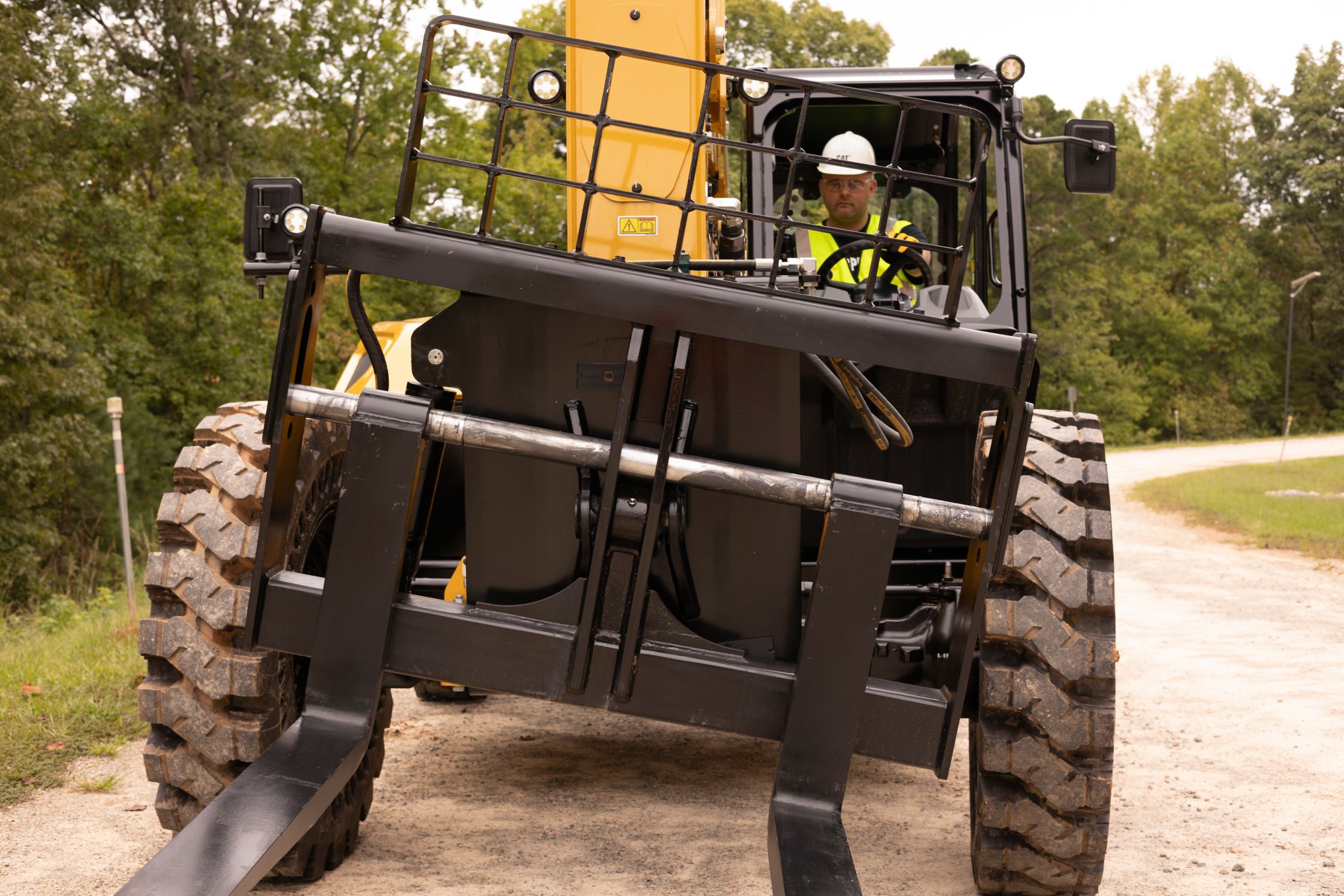

  • FORKS
    • Pallet Forks – 1220 mm (48 in)
    • Pallet Forks – 1525 mm (60 in)
    • Pallet Forks – 1829 mm (72 in)
  • OTHER WORK TOOL ATTACHMENTS
    • General Purpose Bucket
    • Truss Boom – 3.7 m (12 ft)

Specs

Overview

Long Name:
TH0842 Telehandler
Name:
TH0842
Brand:
Cat
Status:
Current

Engine - Standard

Model
Cat C3.6
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power
ISO 14396:2002
Gross Power
74 hp / 55 kW
Displacement
220 in³ / 3.6 l

Engine - Option 1

Model*
Cat C3.6
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power
ISO 14396:2002
Gross Power
115 hp / 86 kW
Displacement
220 in³ / 3.6 l

Operating Specifications

Rated Load Capacity
8000 lb / 3629 kg
Maximum Lift Height
42.1 ft / 12.8 m
Maximum Forward Reach
27.6 ft / 8.4 m
Frame Leveling
10 degrees
Drawbar Pull - Loaded
29179 lbf / 129.8 kN
Capacity at Maximum Height
6000 lb / 2722 kg
Capacity at Maximum Reach
1700 lb / 771 kg
Operating Weight
23366 lb / 10599 kg
Maximum Ground Bearing Pressure (Solid Tires)
185 psi / 1276 kPa
Maximum Ground Bearing Pressure (Pneumatic Tires)
150 psi / 1034 kPa
Travel Speed – Forward
20 mile/h / 31 km/h
Travel Speed – Reverse
14 mile/h / 22 km/h
Turning Radius over Tires (2-wheel steer)
261 in / 6.64 m
Turning Radius over Tires (4-wheel steer)
156 in / 3.97 m
Note
Operating Specifications, and Dimensions are based on 55 kW (74 hp) engine, pnuematic tires, open canopy, 1829 mm (72 in) standard carriage, 1829 mm (72 in) forks, full fluids, and 80 kg (176 lb) operator.
Note (1)
Travel Speeds and Drawbar Pull are based on the 86 kW (115 hp) engine.

Weight Additions (add to base configured weight)

Engine*
194 kg / 88 kg
Enclosed Cab (with Air Conditioning)
364 lb / 165 kg
Solid Tires
1737 lb / 788 kg
Fenders (set of 4)
119 lb / 54 kg
Note
* 86 kW (115 hp) Engine

Hydraulic System

Auxiliary Hydraulic Flow
14.5 gpm / 55 L/min
Auxiliary Hydraulic Pressure
4061 psi / 280 bar
Maximum Pump Flow
37 gpm / 141 L/min
System Operating Pressure
4061 psi / 280 bar

Service Refill Capacities

Fuel Tank
39 gal (US) / 146 l
Diesel Exhaust Fluid (DEF) Tank
5 gal (US) / 19 l
Hydraulic Tank
24 gal (US) / 90 l
Hydraulic System
44 gal (US) / 165 l
Engine Crankcase
2.4 gal (US) / 9 l
Transmission
5.3 gal (US) / 20 l
Transfer Case
0.7 gal (US) / 2.7 l
Note
Diesel Exhaust Fluid (DEF) is only applicable for 86 kW (115 hp) engine option.

Transmission Speeds

Forward
4 Gears
Reverse
3 Gears

Tires

Option (1)
14-24 Galaxy Giraffe XLW L-2 (Air)
Option (2)
13-24 Camso TLH 792S (Solid)
Option (3)
13-24 Maxam MS709 (Solid)

Braking System

Service Brakes
Inboard wet disc brakes on front and rear axles
Parking Brakes
Wet disc, spring applied hydraulic release (front axle)

Boom Performance

Boom Down
14.2 sec
Boom Up
12.8 sec
Tele In
13.3 sec
Tele Out
14.2 sec

Dimensions (Approximate)

Height - Machine Rear
102 in / 2.59 m
Overall Length to Front of Carriage
232 in / 5.89 m
Overall Width - Standard Tires
93 in / 2.36 m
Wheel Base
131 in / 3.32 m
Ground Clearance
19 in / 473 mm

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains 0.68 kg (1.5 lb) of refrigerant. The refrigerant is either R134a or R1234yf. If equipped with R134a (Global Warming Potential = 1430), the refrigerant in the system has a CO2 equivalent of 0.972 metric tonnes (1.07 tons).

Sustainability

Recyclability
97%

Sound

Exterior Sound
82 dB(A)
Operator Sound
79 dB(A) / 79 dB(A)
