0.8 m3 (1.0 yd3), IT Coupler, Base Edge
0.8 m3 (1.0 yd3) IT Coupler Material Handling Bucket With Base Edge
DESCRIPTION
Used to move stockpiled materials.Cat® Material Handling Buckets have a flat-floor design that makes them ideal for handling stockpiled materials such as aggregates or other easy-to-load materials requiring moderate breakout force.Rigid Bucket Floor

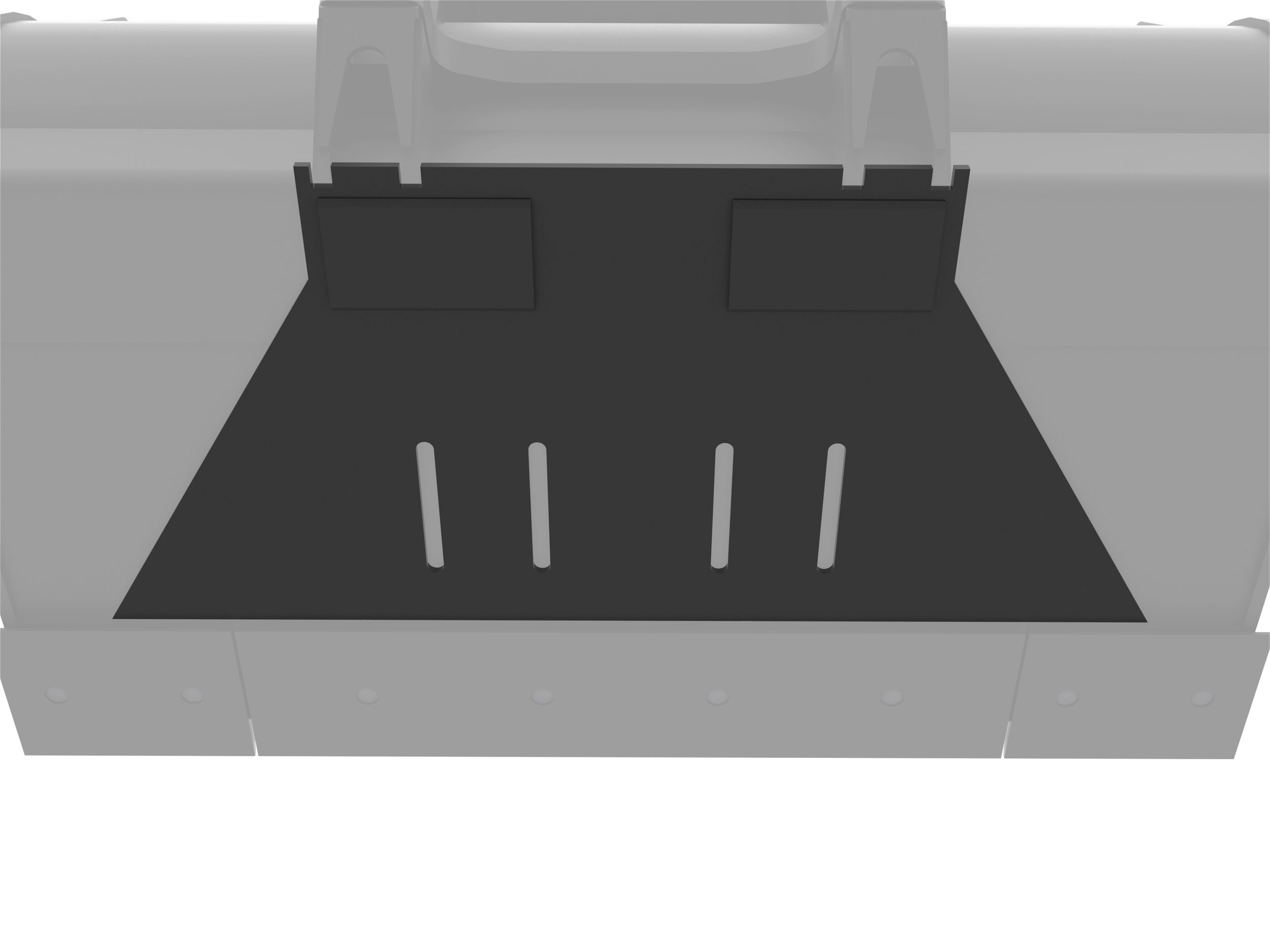

Material Handling Buckets incorporate underside support straps to extend the life of the bucket and ensure minimal wear to the wrapper sheet.

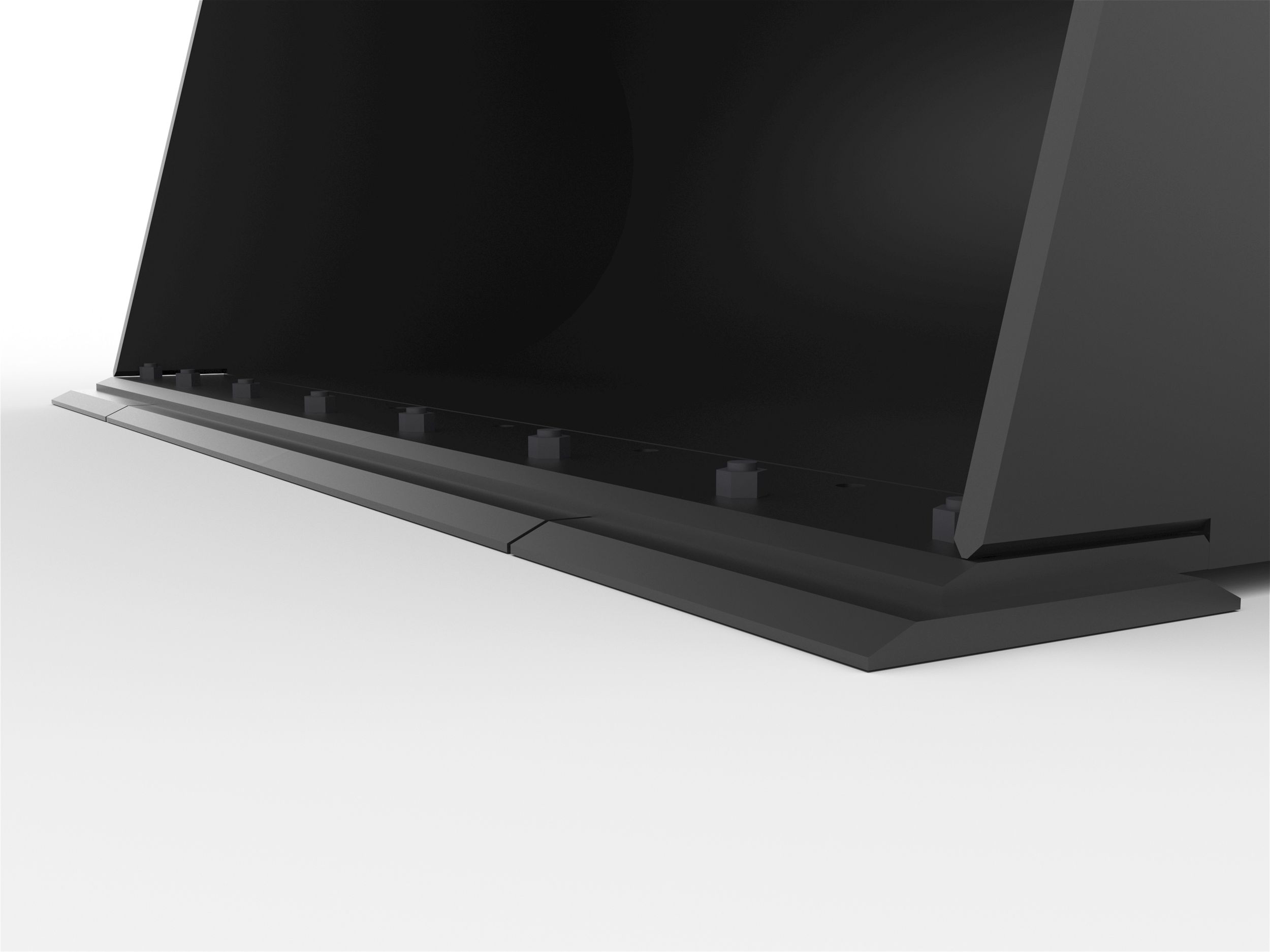

Bolt-On Cutting Edge
Bolt-On cutting edges ensure a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

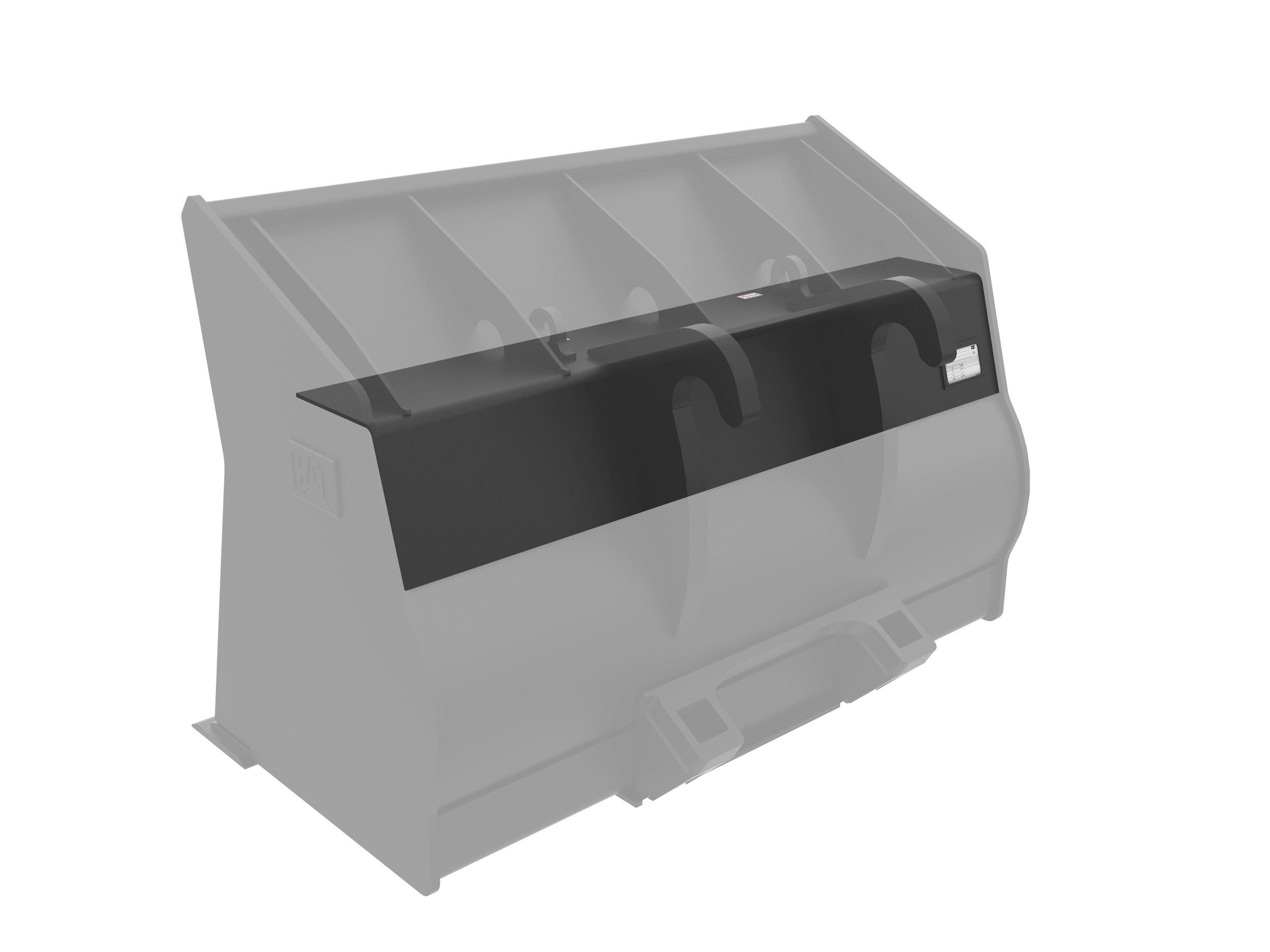

Torque Tube for Increased Rigidity
A large torque tube located on the back side of the bucket ensures that it can withstand machine forces and large capacity loads.
- Specs
Specs
Overview
Long Name:
0.8 m3 (1.0 yd3) IT Coupler Material Handling Bucket With Base Edge
Name:
0.8 m3 (1.0 yd3), IT Coupler, Base Edge
Brand:
Cat
Status:
Current
Width
73.2 in / 1860 mm
Height
50.1 in / 1272 mm
Weight
1168.4 lb / 530 kg
Length
36 in / 915 mm
Capacity
1 yd³ / 0.8 m³
Base Edge Thickness
0.7 in / 19 mm
Cutting Edge Thickness
0.7 in / 19 mm
Interface Type
IT Coupler
SEE HOW 0.8 m3 (1.0 yd3), IT Coupler, Base Edge COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
Material Handling
0.8 m3 (1.0 yd3), IT Coupler, Base Edge
- Brand
- Cat
- Status
- Current
- Width
- 73.2 in / 1860 mm
- Weight
- 1168.4 lb / 530 kg
- Capacity
- 1 yd³ / 0.8 m³
Selected Model
Material Handling
2.3m³ (3yd³)
- Brand
- Caterpillar
- Status
- Current
- Width
- 106 in / 2692 mm
- Weight
- 1802 lb / 817 kg
- Capacity
- 3 yd³ / 2.3 m³
Material Handling
1.5 m3 (2.0 yd3), Fusion™ Coupler, Base Edge
- Brand
- Cat
- Status
- Current
- Width
- 73.3 in / 1861 mm
- Weight
- 2275.2 lb / 1032 kg
- Capacity
- 2 yd³ / 1.5 m³
