1270 mm (50 in), IT Coupler
1270 mm (50 in) Side Tilt-Rotate Carriage for IT Coupler
DESCRIPTION

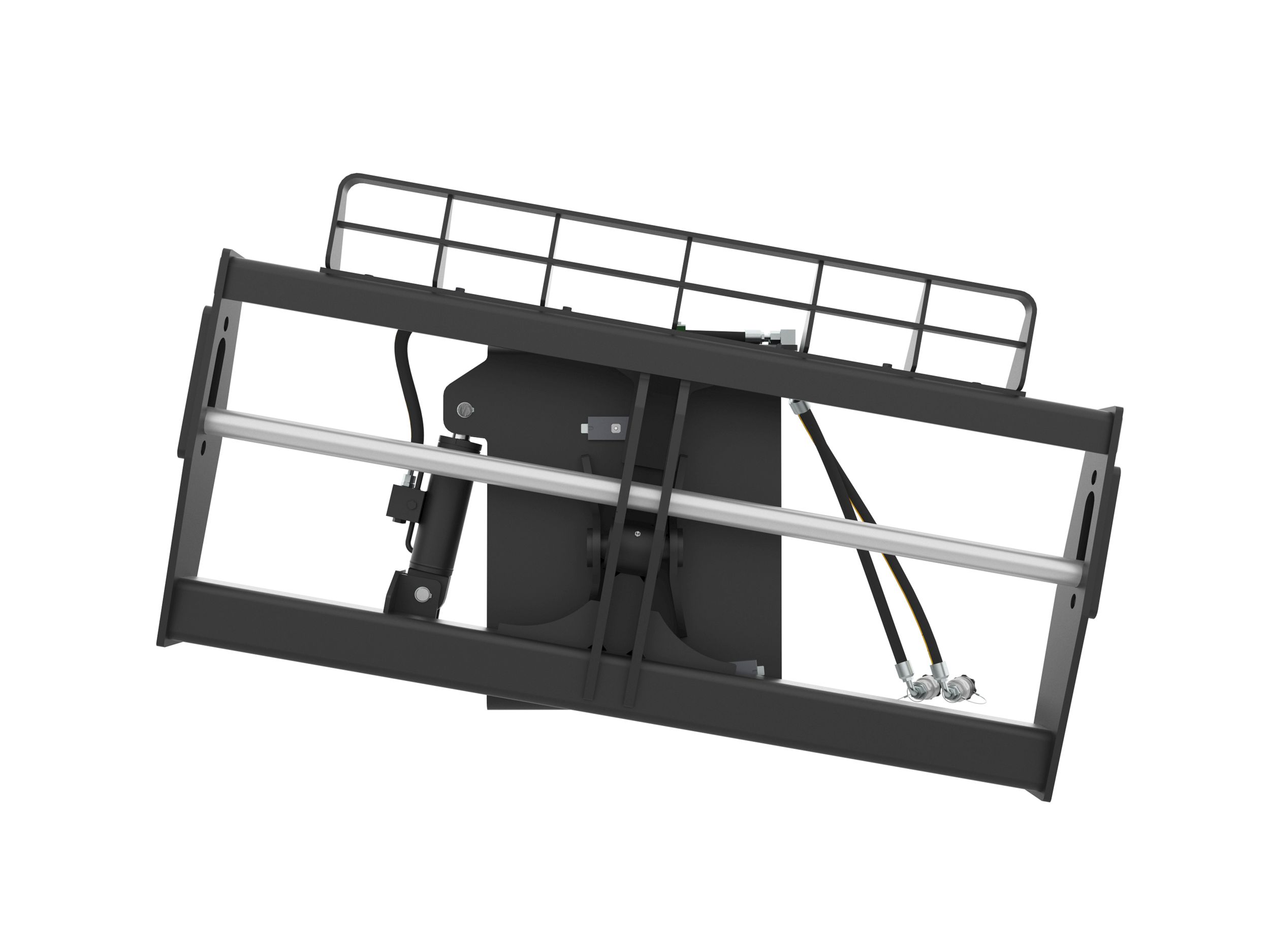

Side Tilt-Rotate Carriages allow for precise positioning of a load, even when on uneven terrain.The Cat® Side Tilt-Rotate Carriage for Telehandlers allows for precise positioning of a load, even when on uneven terrain. Available in two widths, the standard width version is designed for moving palletized loads, bricks, and blocks. The wider width version is suited for moving bulk sheets of plywood, sheetrock, lumber, and pipe.Tilt Frame
Along with the floating fork bar, this carriage will also hydraulically tilt left to right 10 degrees to further assist in placing materials on uneven surfaces like pitched roofs.

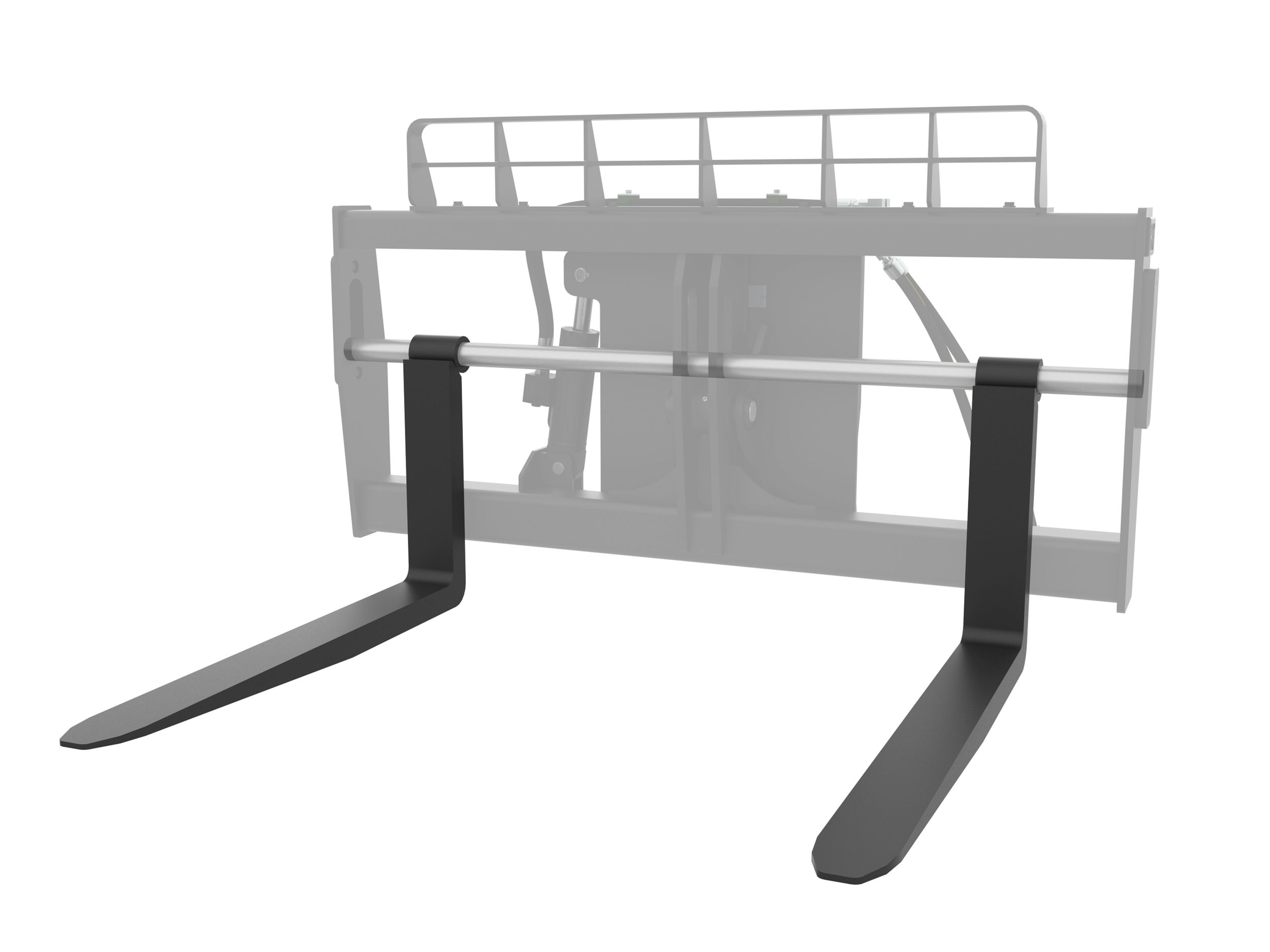

Manually Adjustable Forks
Adjustable fork positions enable the operator to move various sized pallets and bales of material.

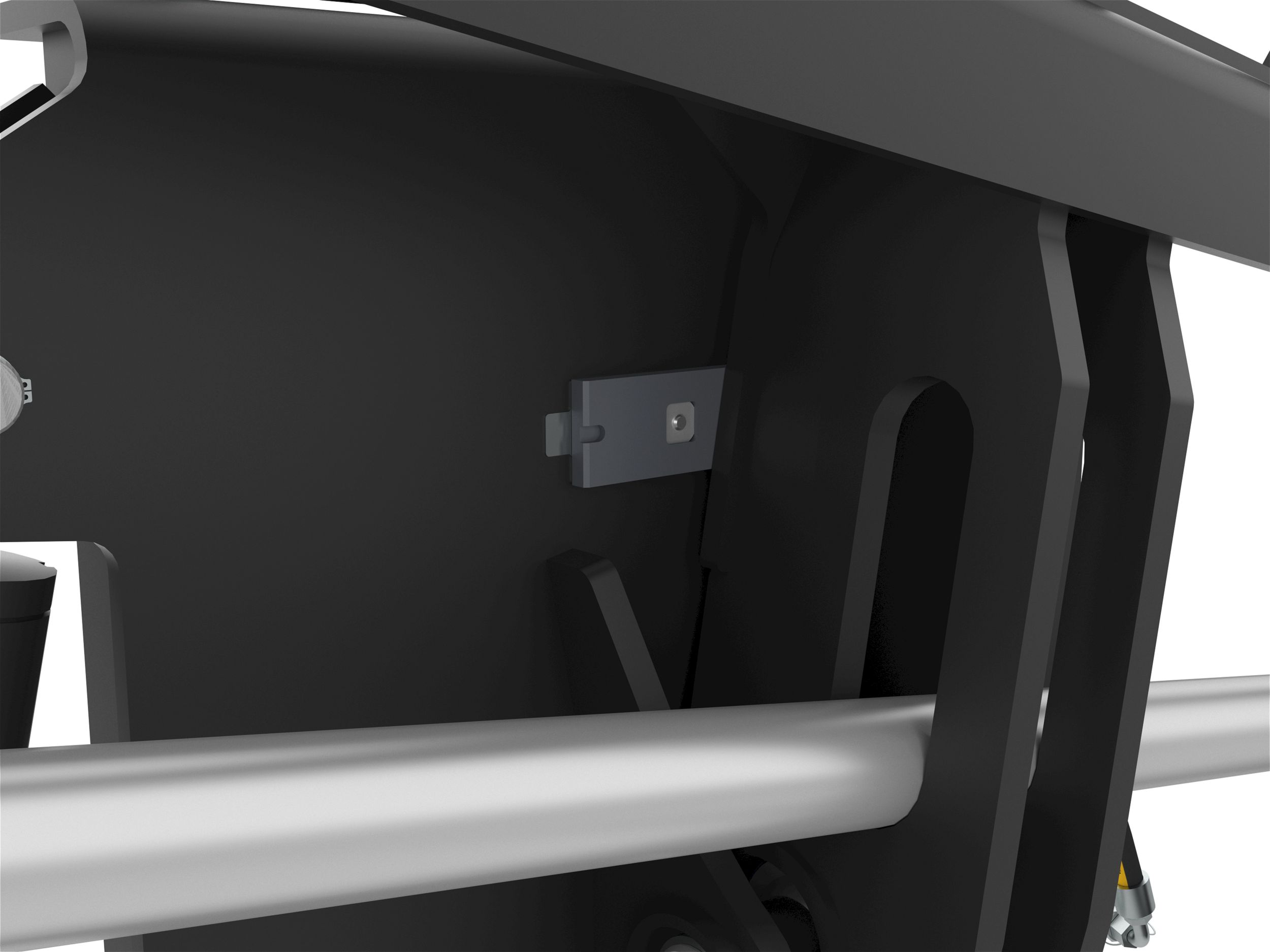

Replaceable Wear Pads
Wear pads provide additional durability for the carriage and extend overall life of the attachment.
- Specs
- Docs
Specs
Overview
Long Name:
1270 mm (50 in) Side Tilt-Rotate Carriage for IT Coupler
Name:
1270 mm (50 in), IT Coupler
Brand:
Cat
Status:
Current
Height
47 in / 1194 mm
Width
50 in / 1270 mm
Overall Width
53 in / 1346 mm
Weight
1170.7 lb / 531 kg
Length
18.7 in / 476 mm
Tine Spacing
229-1145mm (9-45in)
Tilt Angle Range
11° Left/Right
Load Capacity
12000 lb / 5443.1 kg
Interface Type
IT Coupler
SEE HOW 1270 mm (50 in), IT Coupler COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
Side Tilt-Rotate Carriages
1270 mm (50 in), IT Coupler
- Brand
- Cat
- Status
- Current
- Height
- 47 in / 1194 mm
- Width
- 50 in / 1270 mm
- Overall Width
- 53 in / 1346 mm
- Weight
- 1170.7 lb / 531 kg
- Length
- 18.7 in / 476 mm
- Tine Spacing
- 229-1145mm (9-45in)
- Tilt Angle Range
- 11° Left/Right
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- IT Coupler
Selected Model
Side Tilt-Rotate Carriages
1829 mm (72 in), IT Coupler
- Brand
- Cat
- Status
- Current
- Height
- 40.3 in / 1024 mm
- Width
- 72 in / 1829 mm
- Overall Width
- 75 in / 1905 mm
- Weight
- 1488.1 lb / 675 kg
- Length
- 18.7 in / 476 mm
- Tine Spacing
- 229-1704 mm (9-67.1 in)
- Tilt Angle Range
- 11° Left/Right
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- IT Coupler
Side Tilt-Rotate Carriages
1270 mm (50 in), TH Coupler
- Brand
- Cat
- Status
- Current
- Height
- 47 in / 1194 mm
- Width
- 50 in / 1270 mm
- Overall Width
- 53 in / 1346 mm
- Weight
- 1347 lb / 611 kg
- Length
- 15.1 in / 384 mm
- Tine Spacing
- 229-1145 mm (9-45 in)
- Tilt Angle Range
- 11° Left/Right
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- Standard TH Coupler
