1829 mm (72 in), Standard TH Coupler

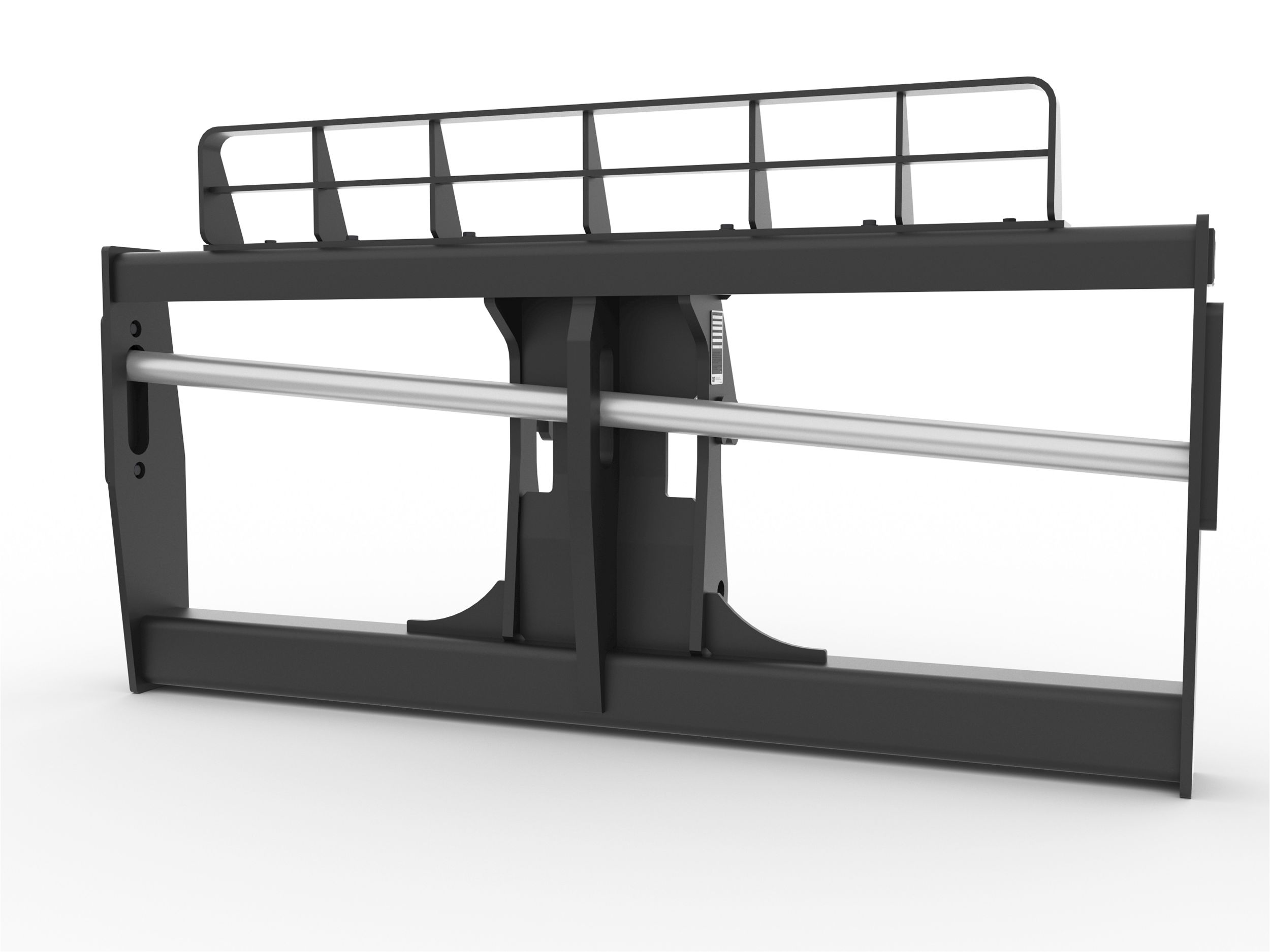

1829 mm (72 in) Standard Tilt Carriage for Standard TH Coupler
DESCRIPTION
Standard Tilt Carriages are typically used in general construction, masonry, agriculture, steel erection, material handling, and building construction applications.The Cat® Standard Tilt Carriage for Telehandlers is essential on most job sites, typically used in general construction, masonry, agriculture, steel erection, material handling, and building construction applications. Ideal for moving palletized loads of concrete block or loads of lumber efficiently around on the jobsite.Floating Fork Bar
Forks are allowed to float up to 11 degrees to assist when placing loads on uneven surfaces.

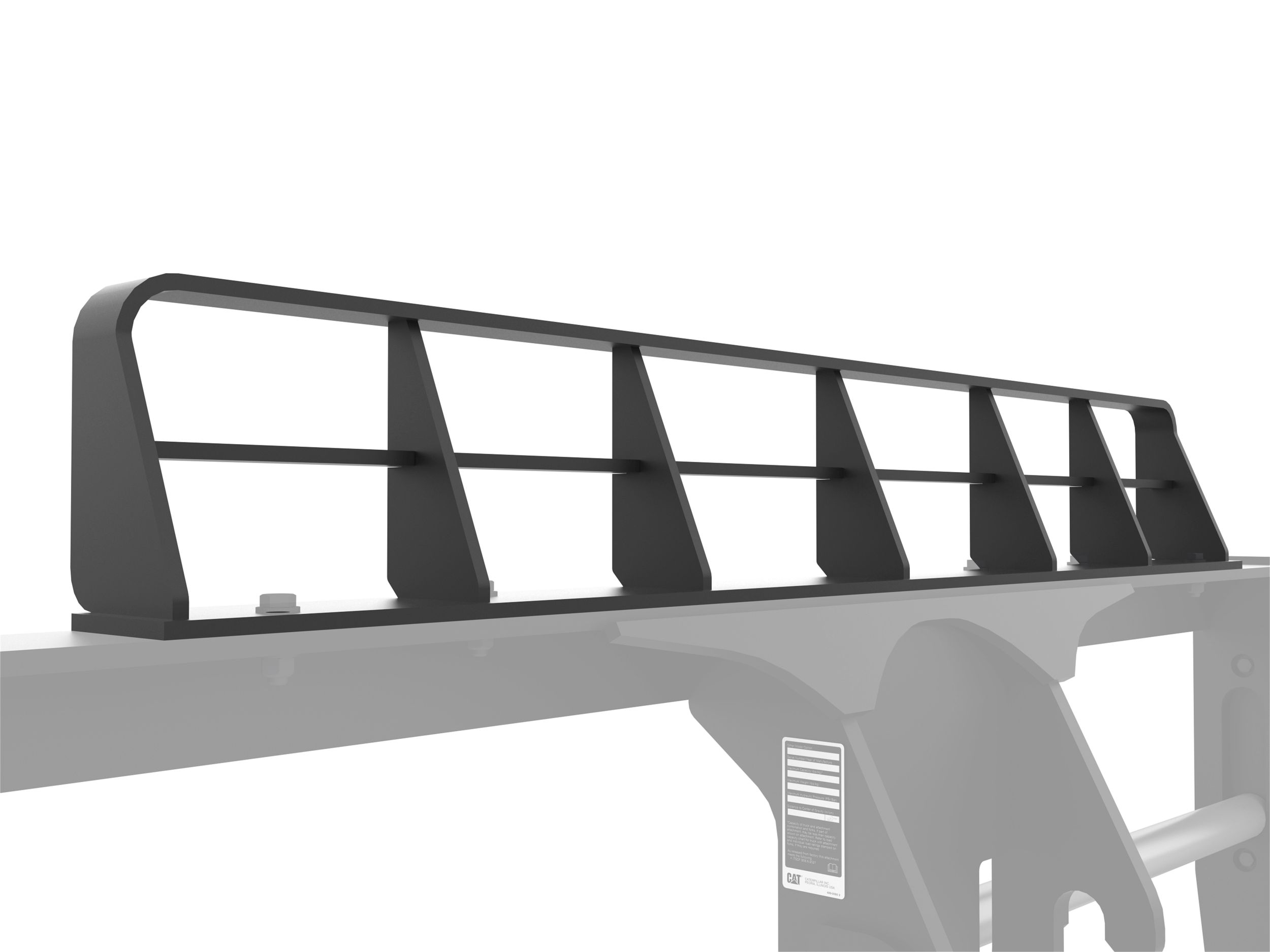

Bolt-On Backrest
Bolt-on backrest provides good visibility and helps with load retention.

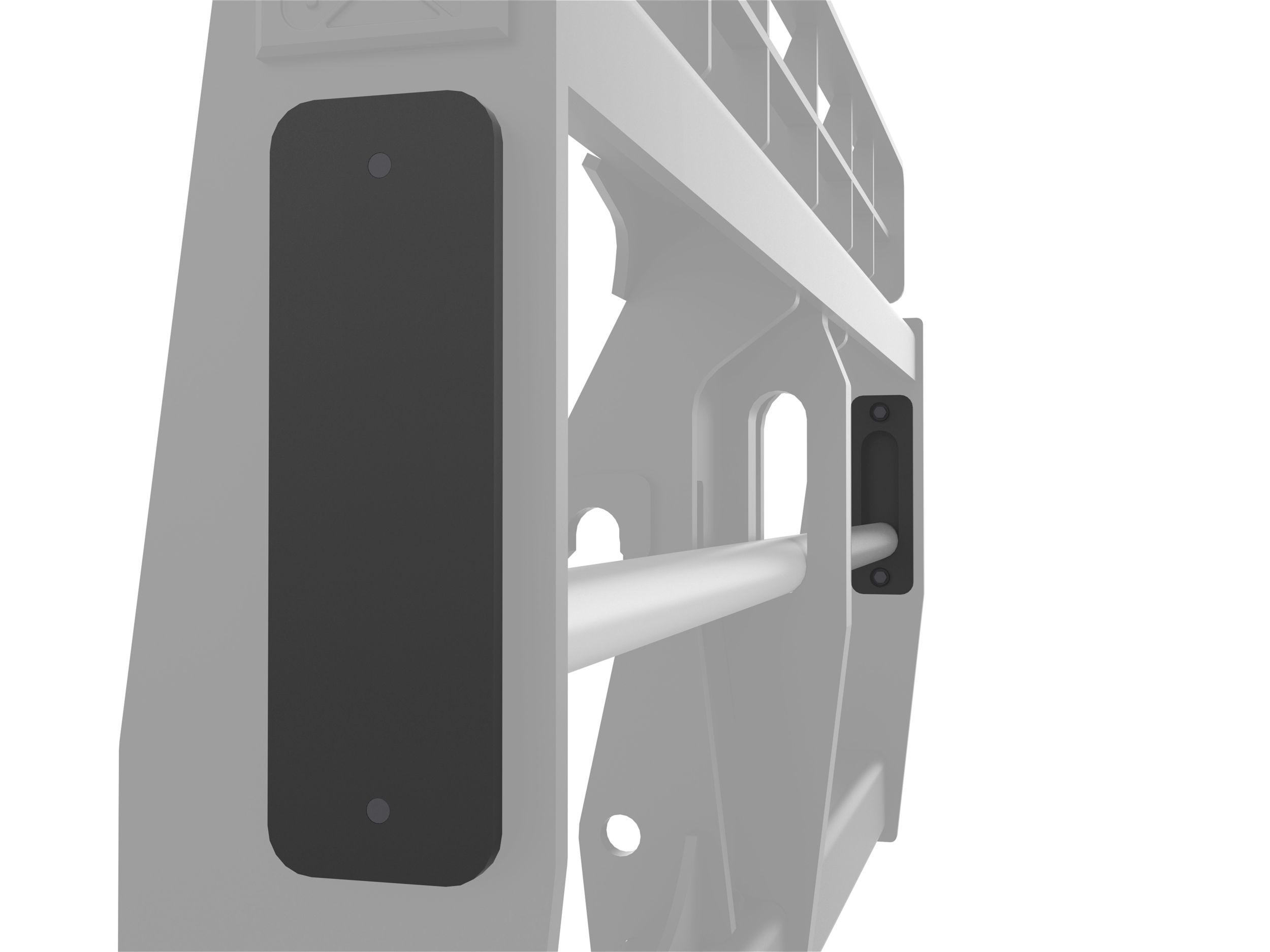

Easy Fork Install / Change
With a variety of fork sizes available, changing forks on telehandler carriages is as easy as removing two side plates.
- Specs
- Docs
Specs
Overview
Long Name:
1829 mm (72 in) Standard Tilt Carriage for Standard TH Coupler
Name:
1829 mm (72 in), Standard TH Coupler
Brand:
Cat
Status:
Current
Height
40.3 in / 1024 mm
Width
72 in / 1829 mm
Overall Width
75 in / 1905 mm
Weight
626.1 lb / 284 kg
Length
11.1 in / 282 mm
Tine Spacing
165-1704 mm (6.5-67 in)
Load Capacity
12000 lb / 5443.1 kg
Interface Type
Standard TH Coupler
SEE HOW 1829 mm (72 in), Standard TH Coupler COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
Standard Tilt Carriages
1829 mm (72 in), Standard TH Coupler
- Brand
- Cat
- Status
- Current
- Height
- 40.3 in / 1024 mm
- Width
- 72 in / 1829 mm
- Overall Width
- 75 in / 1905 mm
- Weight
- 626.1 lb / 284 kg
- Length
- 11.1 in / 282 mm
- Tine Spacing
- 165-1704 mm (6.5-67 in)
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- Standard TH Coupler
Selected Model
Standard Tilt Carriages
1829 mm (72 in), IT Coupler
- Brand
- Cat
- Status
- Current
- Height
- 40.3 in / 1024 mm
- Width
- 72 in / 1829 mm
- Overall Width
- 75 in / 1905 mm
- Weight
- 643.7 lb / 292 kg
- Length
- 15.4 in / 392 mm
- Tine Spacing
- 165-1704 mm (6.5-67 in)
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- IT Coupler
Standard Tilt Carriages
1270 mm (50 in), Standard TH Coupler
- Brand
- Cat
- Status
- Current
- Height
- 47 in / 1194 mm
- Width
- 50 in / 1270 mm
- Overall Width
- 53 in / 1346 mm
- Weight
- 529.1 lb / 240 kg
- Length
- 11.1 in / 282 mm
- Tine Spacing
- 165-1145 mm (6.5-45 in)
- Load Capacity
- 12000 lb / 5443.1 kg
- Interface Type
- Standard TH Coupler
