1829 mm (72 in), TH Coupler

1829 mm (72 in) for TH Coupler

Studio Shot

DESCRIPTION

Allows the operator to alter the spacing of the forks hydraulically from the operator’s seat.Cat® Hydraulic Fork Positioner Carriages allow the operator to alter the spacing of the forks hydraulically from the operator’s seat, making it easier to pick up and position a variety of sizes in palletized loads. The carriage offers multiple fork options, includes twist to connect quick connects, a standard bolt-on backrest for serviceability, and the rails are plated for increased durability.

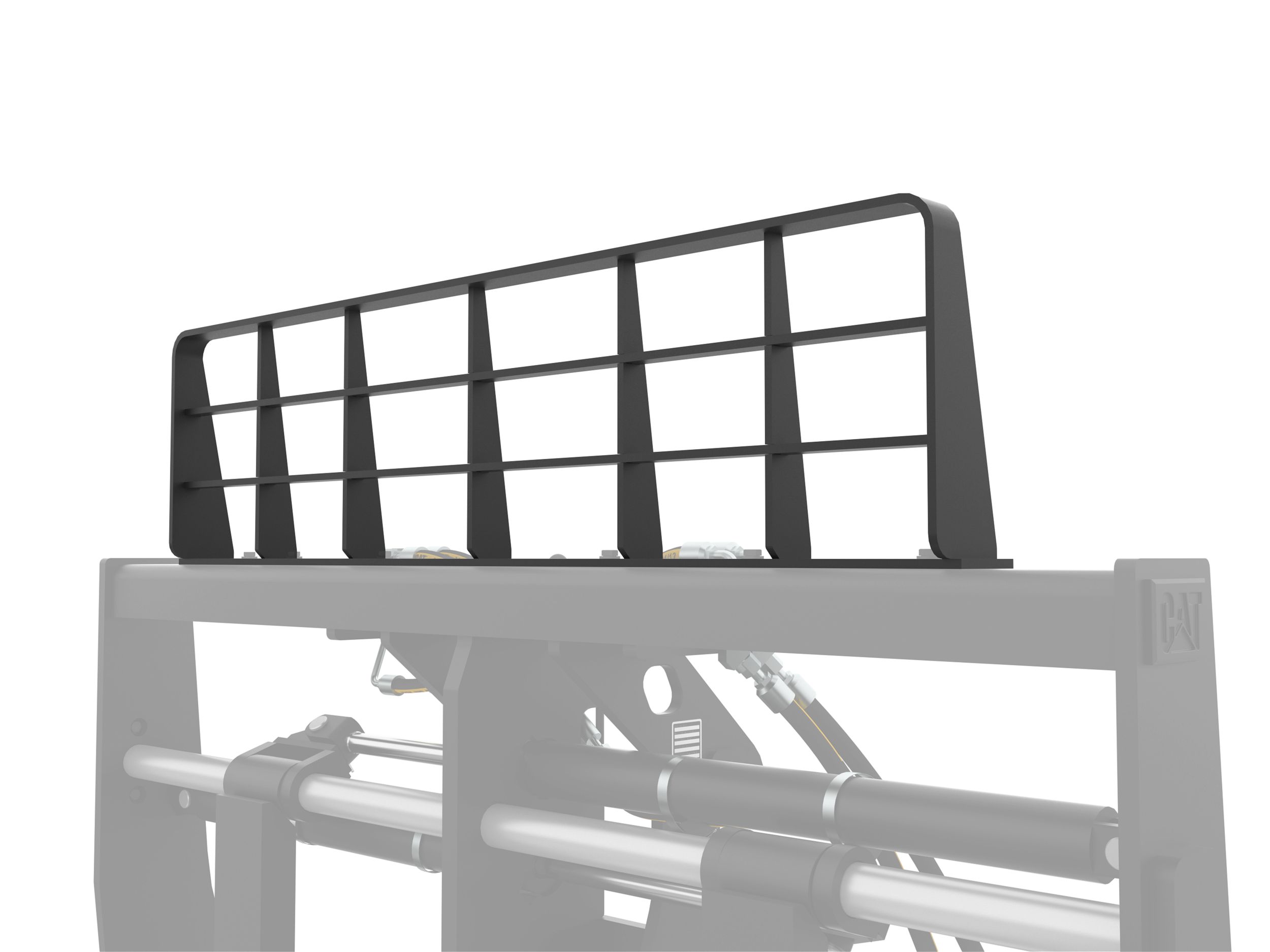

High Bolt-on Backrest

Bolt-on backrest provides improved load retention and good visibility.

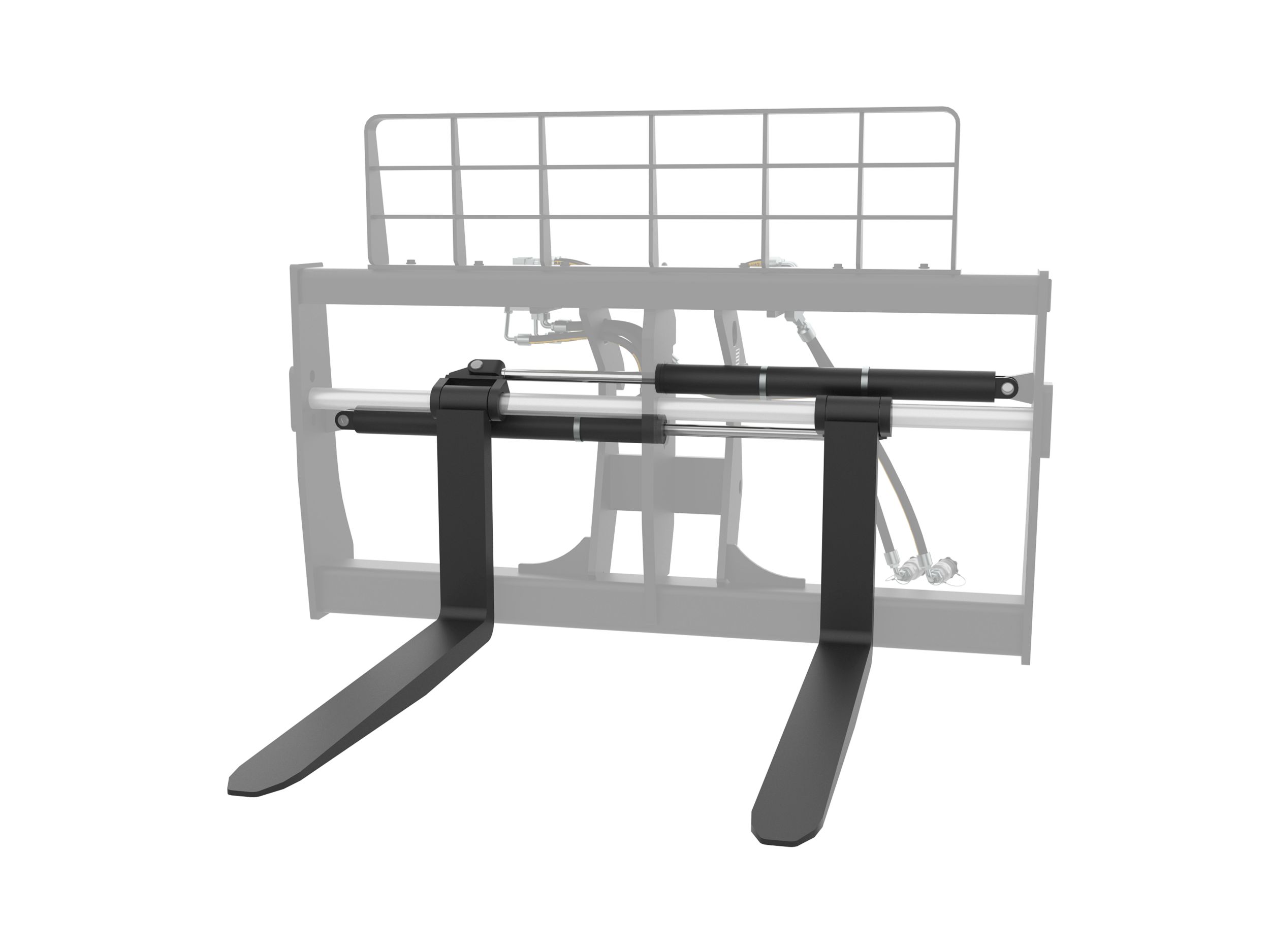

Dual Slide Cylinders

Dual cylinders allow the forks to operate in and out smoothly from the operators seat.

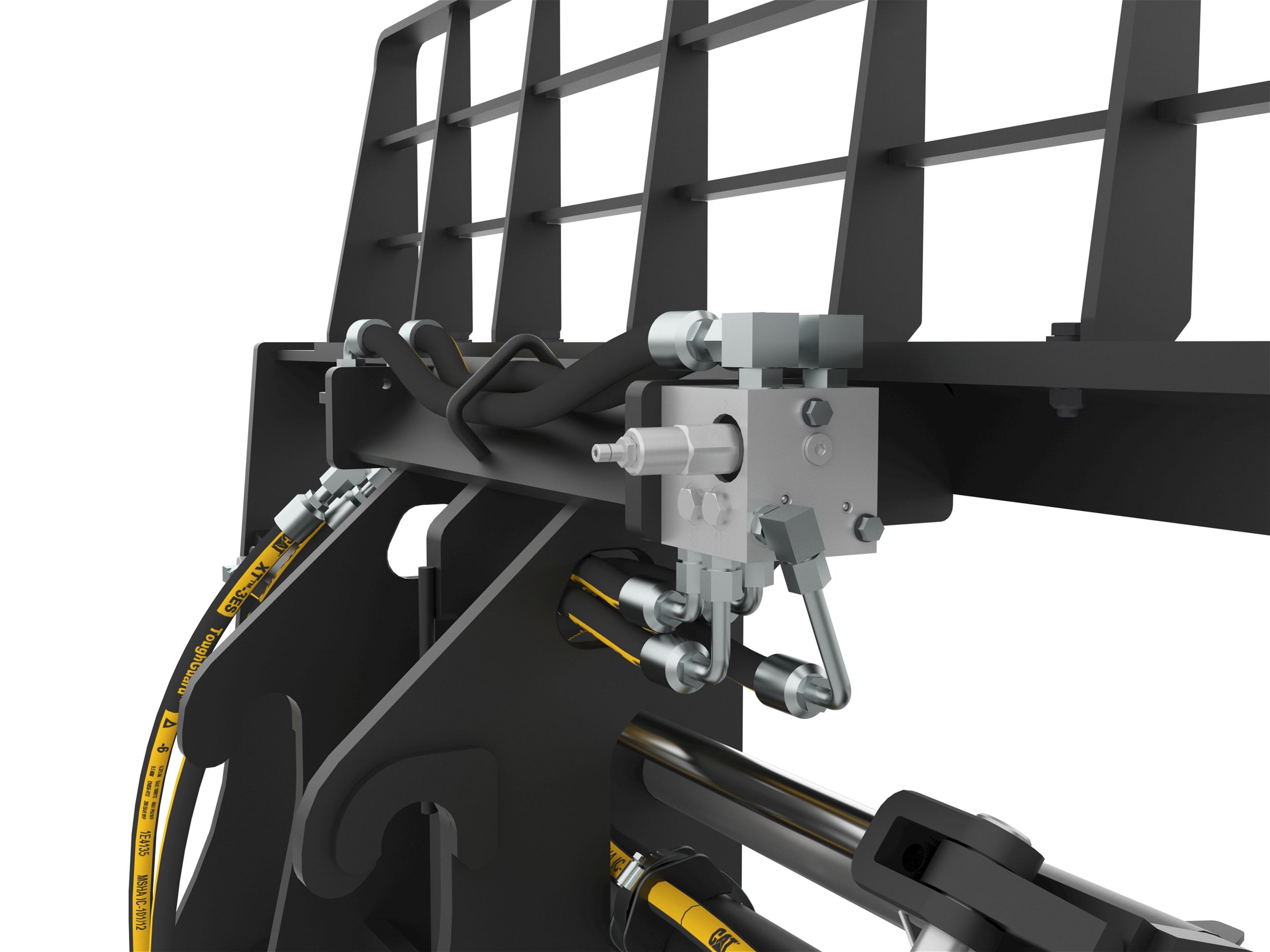

Hydraulic Valve

Valve controls hydraulic flow to the cylinders to maintain consistent pressure to the forks.

  • Specs
  • Docs

Specs

Overview

Long Name:
1829 mm (72 in) for TH Coupler
Name:
1829 mm (72 in), TH Coupler
Brand:
Cat
Status:
Current
Height
51.8 in / 1316 mm
Width
72 in / 1829 mm
Overall Width
75.3 in / 1913 mm
Weight
933 lb / 423.2 kg
Length
16.8 in / 427 mm
Tine Spacing
229-1654 mm (9-65 in)
Load Capacity
12000 lb / 5443.1 kg
Interface Type
Standard TH Coupler

SEE HOW 1829 mm (72 in), TH Coupler COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.

Hydraulic Fork Positioner Carriages
1829 mm (72 in), TH Coupler
Studio Shot
Brand
Cat
Status
Current
Height
51.8 in / 1316 mm
Width
72 in / 1829 mm
Overall Width
75.3 in / 1913 mm
Weight
933 lb / 423.2 kg
Length
16.8 in / 427 mm
Tine Spacing
229-1654 mm (9-65 in)
Load Capacity
12000 lb / 5443.1 kg
Interface Type
Standard TH Coupler
Selected Model
Hydraulic Fork Positioner Carriages
1829 mm (72 in), IT Coupler
Studio Shot
Brand
Cat
Status
Current
Height
51.8 in / 1316 mm
Width
72 in / 1829 mm
Overall Width
75.3 in / 1913 mm
Weight
968.5 lb / 439.3 kg
Length
19.1 in / 485 mm
Tine Spacing
229-1654mm (9-65.1in)
Load Capacity
12000 lb / 5443.1 kg
Interface Type
IT Coupler
