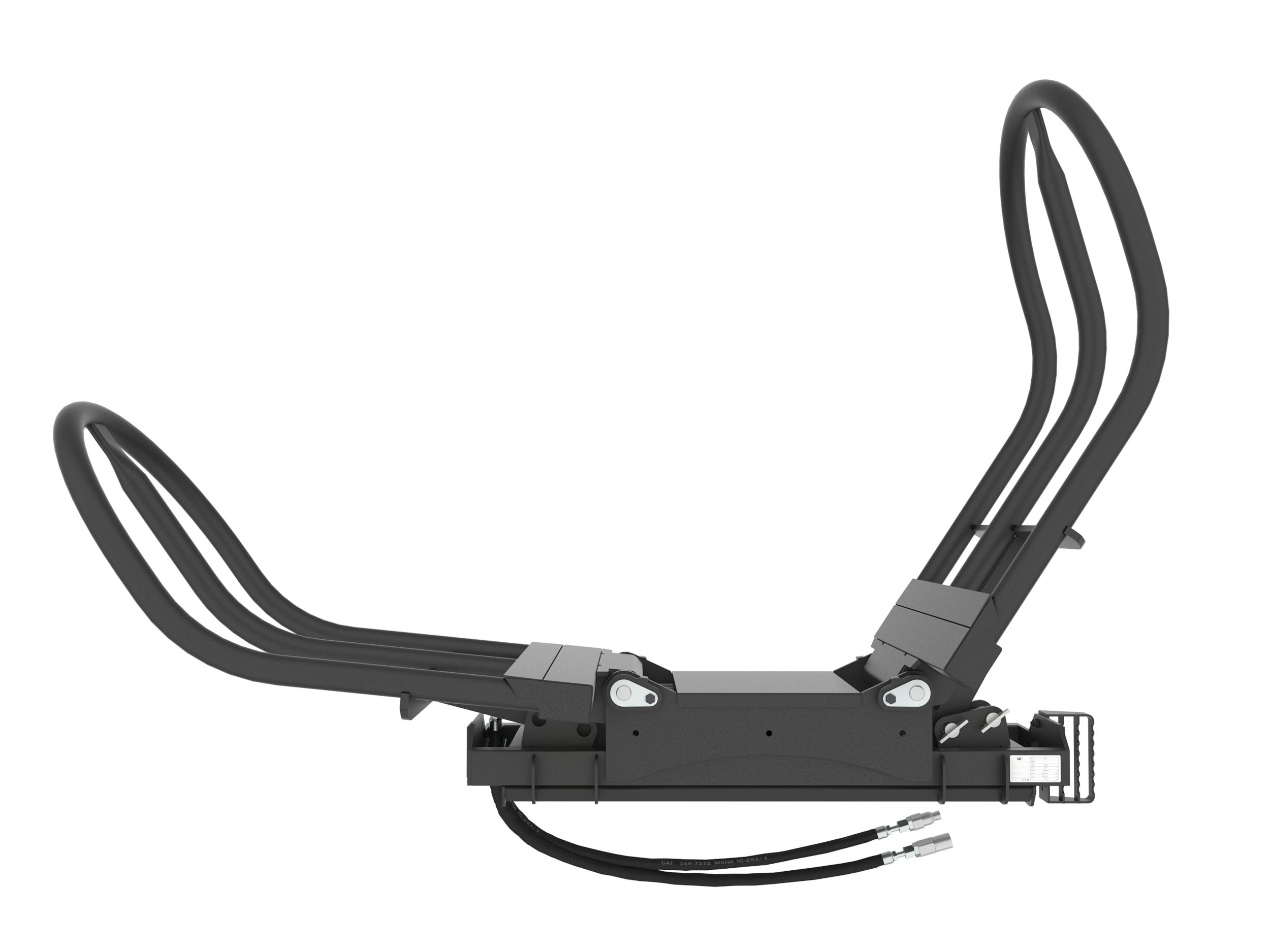

2060 mm (81 in)
2060 mm (81 in) Bale Grab
DESCRIPTION
Cat® Bale Grabs safely grab, carry and place square or round baled material.Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.Cat® Bale Grab at Work
Cat® Bale Handling Solutions Overview
Large Capacity Opening
Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.
Tubular Arms
Tubular constructed arms eliminate damage to wrapped bales.
Bolt-On Serrated Step
Bolt-On serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.
High Strength Rigid Frame
High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.
Lockable Arms
One arm can be locked in a fixed position using locking pins, allowing all motion to occur exclusively through the second arm. This configuration is especially useful for stacking operations, where consistent reach and repeatable alignment are required.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
- Specs
- Docs
Specs
Overview
SEE HOW 2060 mm (81 in) COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
- Brand
- Cat
- Status
- Current
- Overall Width
- 55.1 in / 1400 mm
- Overall Height
- 34.4 in / 873 mm
- Maximum Opening Width
- 81.1 in / 2060 mm
- Capacity
- 1807.8 lb / 820 kg
- Overall Depth
- 61 in / 1550 mm
- Weight
- 599.7 lb / 272 kg
- Working Pressure
- 3045.8 psi / 21000 kPa
- Required Hydraulics
- Standard Flow
- Brand
- Cat
- Status
- Current
- Overall Width
- 55.1 in / 1400 mm
- Overall Height
- 34.4 in / 873 mm
- Maximum Opening Width
- 83.9 in / 2130 mm
- Capacity
- 2006.2 lb / 910 kg
- Overall Depth
- 64.2 in / 1630 mm
- Weight
- 608.5 lb / 276 kg
- Working Pressure
- 3045.8 psi / 21000 kPa
- Required Hydraulics
- Standard Flow
