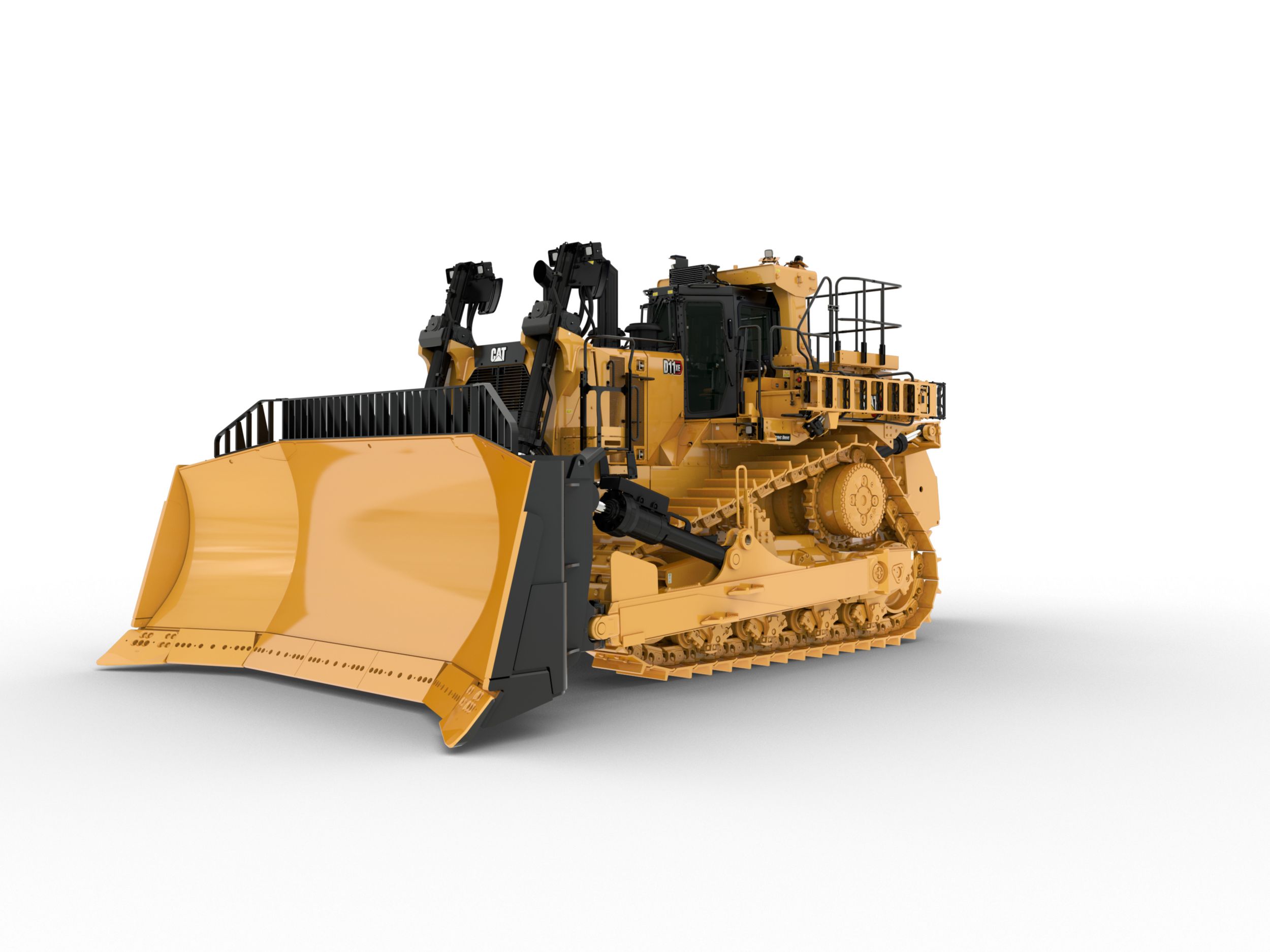

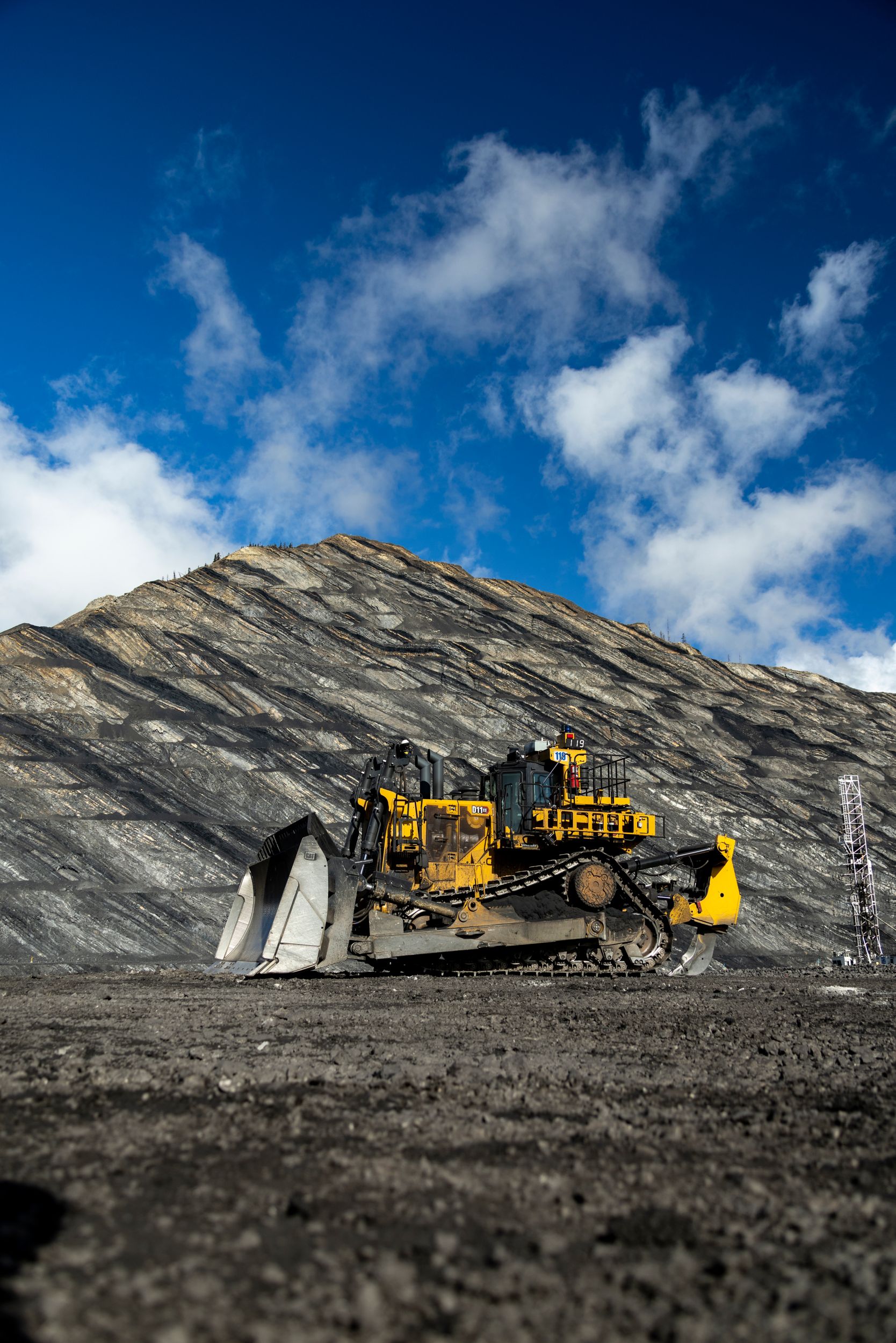

D11 XE Dozer

DESCRIPTION

The Cat® D11 XE is the most efficient, highest-producing D11 ever. It's built on a legacy of performance and reliability, with a Caterpillar-designed electric powertrain that improves fuel efficiency and increases productivity.

It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.

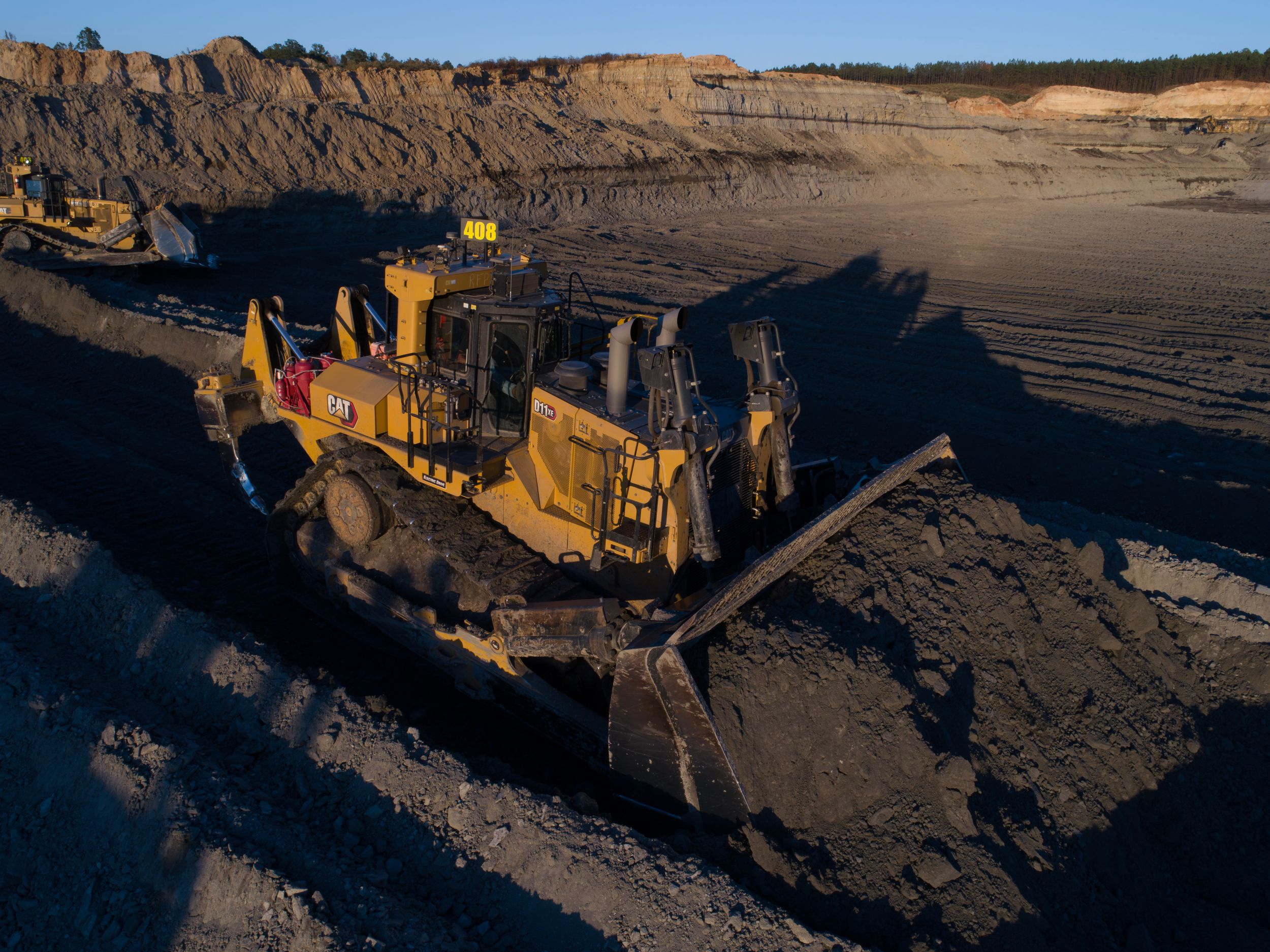

Performance & Efficiency


  • First-of-its-kind electric drive powertrain built on Caterpillar's deep electrification experience
    •
  • Up to 25% less fuel burned per unit of material moved compared to the D11
    •
  • Delivers optimized power to the ground, working more efficiently over a wider range of speeds and loads
    •
  • Single-plane cooling system enables better heat rejection
    •
  • Multiple blade options and three tilt cylinder options maximize productivity in a wide range of applications
    •
  • C32B engine delivers the performance you expect with heavier duty internals for improved reliability
    •
  • High horsepower reverse speeds up non-productive traveling for shorter cycle times

Operator Comfort


  • Unparalleled operator environment designed to reduce effort and exposure
    •
  • Intuitive touchscreen display gives operators access to key machine information, giving real-time feedback to optimize productivity
    •
  • Suspended undercarriage absorbs impact and reduces shock loads by up to 50%
    •
  • Fully adjustable air suspension seat
    •
  • Ergonomic controls, including low-effort electronic steering, ripper and dozer controls keep operators in control and reduce fatigue
    •
  • Reduced noise and vibration, as well as improved airflow for maximum comfort
    •
  • 3 dB quieter than the D11 for both operator and spectators

Safety


  • Improved operator visibility with clear lines of sight to front and rear work areas, as well as optional 360-degree vision system
    •
  • Third-generation powered ladder for safer access and egress
    •
  • Automatic engine shutoff if dozer is tipped or rolls over
    •
  • Seatbelt monitor and Operator Not Present monitoring system
    •
  • Ready for Cat MineStar Detect and Command

Technology & Innovation


  • Autocarry™ provides automatic blade control during carry operations, reducing operator fatigue and increasing productivity up to 15%
    •
  • Grade Control 3D uses ROPS-mounted GNSS antennas and blade-mounted sensors to increase accuracy, enhance safety, and reduce the number of people required on site
    •
  • Automated Blade Assist increases efficiency with automated blade movements to preset pitch positions
    •
  • Automatic Ripper Control monitors and adjusts engine speed and ripper depth to minimize track slip and maximize productivity

Cat MineStar™ Solutions


  • Terrain for grading provides onboard guidance tools and real-time feedback to help operators maximize efficiency and reduce rehandling of material
    •
  • Terrain with Blade Control speeds up dozing, decreases fuel burn and minimizes overcut, overfill and rehandling
    •
  • Command for dozing provides multiple levels of automation, from line-of-sight control of a single machine to semi-autonomous control over multiple dozers from a single remote station

Serviceability


  • Modular design allows you to service major components without affecting surrounding areas
    •
  • Electric drive powertrain features 60% fewer parts and requires less frequent replacement of major components
    •
  • Lower high-idle engine speed reduces wear and tear for enhanced machine life
    •
  • Increased planned component repair time from 15,000 to 18,000 hours
    •
  • Automatic machine protection features keep the machine from damaging itself due to environmental factors or improper operation

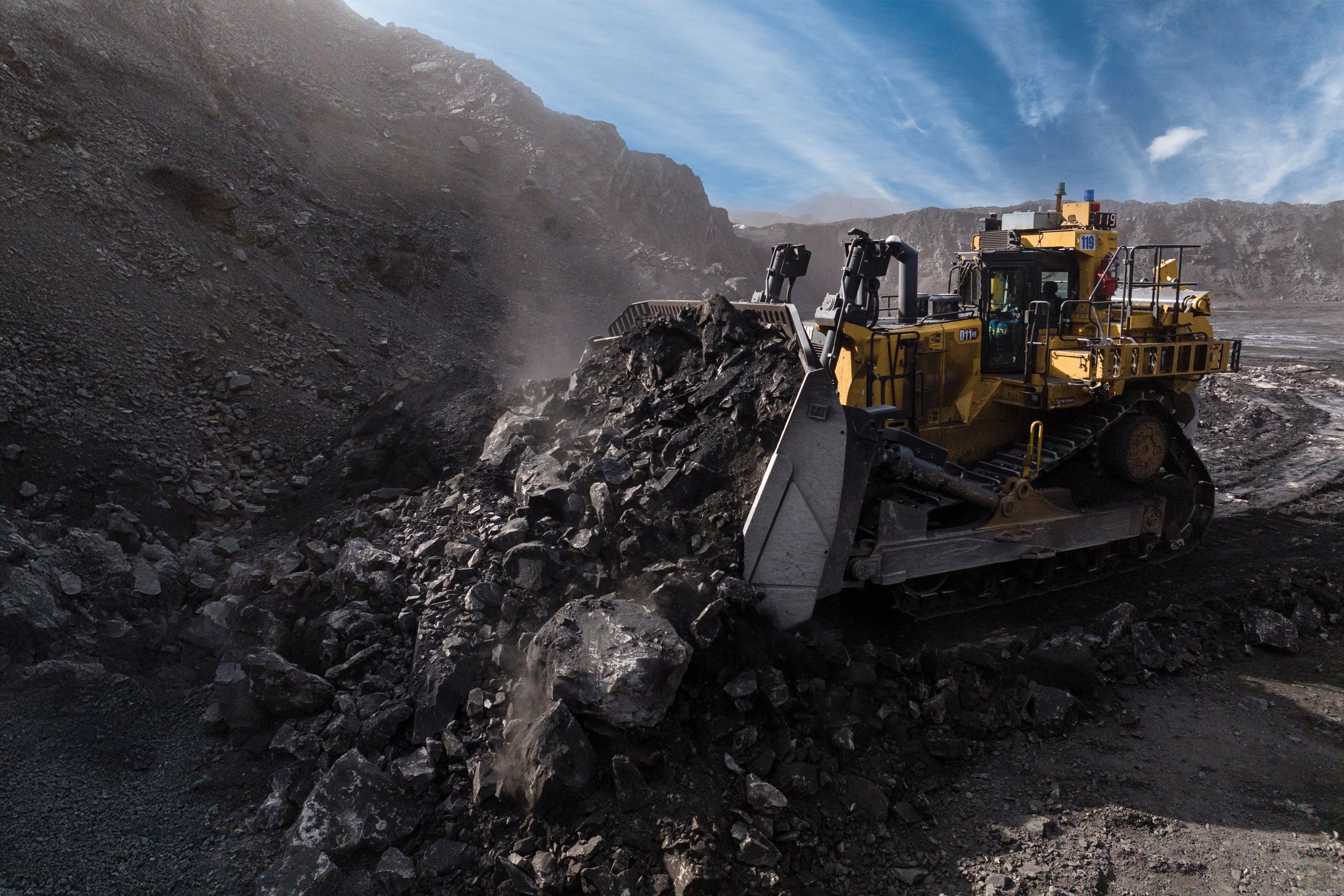

Blades & Attachments


  • Best-in-class attachments designed with decades of experience in research and development
    •
  • All blades are constructed of high-tensile-strength materials for high productivity over a long life
    •
  • 29.3° interior angle between the back bottom of the blade and the ground allows blades to better penetrate and load in tough conditions
    •
  • Superior loadability with heavy moldboard construction and bolt-on hardened cutting edges and end bits

Built to Go The Distance


  • Frame, powertrain and major components are built to be rebuilt using new, remanufactured or rebuilt parts and components
    •
  • Longer rebuild intervals — achieves the same operating hours in an average 75,000-hour lifecycle with one fewer rebuild than the D11
    •
  • Robust variable piston pumps in the load-sensing hydraulic system run cooler for longer component and seal life

Mining For a Better World


  • Electric drive powertrain reduces fuel consumption and greenhouse gas emissions with no impact on machine performance
    •
  • Built to be rebuilt, allowing you to achieve like-new performance at a far lower cost in energy, emissions and materials than using new components
    •
  • C32B engine meets U.S. EPA Tier 4 Final, EU Stage V and other equivalent emissions standards
    •
  • Maintenance-free diesel oxidation catalyst aftertreatment solution eliminates the need for DEF and reduces total fluid consumption

  • Standard Equipment
  • Optional Equipment
  • Specs
  • Docs

Standard Equipment

  • OPERATOR ENVIRONMENT
    • ROPS/FOPS, Sound-Suppressed Cab
    • High-Definition Primary Touchscreen Display
    • Visibility – Rearview Mirrors
    • Air Conditioner and Heater with Automatic Climate Control
    • Seat – Cloth with Air suspension
    • Cab Glass – Single-Pane Tinted Safety
    • Cab Access – Blade Push Arm Steps and Grab Handle
  • CAT TECHNOLOGY PRODUCTS
    • VIMS
    • Automated Blade Assist (ABA)
    • Cat Product Link™ Elite (cellular)
  • CAT POWER TRAIN
    • Cat C32B Engine – U.S. EPA Tier 4 Final/EU Stage V
    • High-Performance Single-Plane Cooling Module
    • Variable Speed Dual Path Electric Drive
    • Tiller Steering – Electronic Control
  • UNDERCARRIAGE
    • Suspension Type Undercarriage
    • Sleeve Bearing Track
    • Lifetime-Lubricated Rollers and Idlers
    • Track Shoes (ES): 710/810/915 mm (28/32/36 in) Width (various configurations)
  • HYDRAULICS
    • Electronically Controlled, Load-Sensing Dozer Lift and Tilt
    • Electronically Controlled, Load-Sensing Ripper Lift and Pitch
    • Dozer Blade – Dual Tilt
    • Electronically Enabled Blade – Quick Drop
  • ELECTRICAL
    • 24V Electric Start, Dual Starters
    • Batteries – 4 × 4,200-Amp Hour, 12V
    • Battery Isolation
    • Lights – LED – 13 Positions
  • SERVICE AND MAINTENANCE
    • Ecology Fluid Drains – All Compartments
    • Hinged Bottom Guards
    • High-Speed Oil Change – Engine and Transmission
    • Ground-Level Fast Fuel Fill
    • Ground-Level Electrical Service Station
    • S·O·SSM Fluid Sampling Ports
    • Diagnostic Connector

Optional Equipment

  • CAT POWER TRAIN
    • Cat C32B Engine – Non-certified, equivalent to U.S. EPA Tier 2
    • Hydraulic Cooling Fan – Automatic Reversing
  • OPERATOR ENVIRONMENT
    • MineStar™ Terrain Display
    • Visibility – Dual Camera
    • Visibility – Four Cameras, 360 Degree View
    • Visibility – Camera – Ripper Tip View
    • Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
    • Cab Glass – Dual-Pane Laminated Impact Safety
    • Cab Glass – High-Pressure Safety (40 psi/275 kPa)
    • Cab Access – Powered Ladder
  • CAT TECHNOLOGY PRODUCTS
    • AutoCarry™
    • Auto Ripper Control
    • Cat Terrain with 3D Blade Control
    • Cat Terrain Ready
    • Cat Product Link Elite Dual Mode (cellular + satellite)
    • Cat Command for Dozing Ready
  • UNDERCARRIAGE
    • Track Links – Heavy Duty XL – Duralink
    • Track Shoe – Abrasion Resistant
    • Track Shoe – Anti-Packing Round Hole
    • Abrasion Rollers and Idlers
    • Cold Weather Rollers and Idlers
    • Carrier Roller
  • HYDRAULICS
    • Carrydozer Hydraulics
    • Dozer Extended Blade Pitch
    • Ripper Pin Puller
  • ELECTRICAL
    • Battery Isolation – Dual Pole
    • Lights – LED Premium Package – 13 positions
  • SERVICE AND MAINTENANCE
    • Sound Reduction Sealed Bottom Guards
    • Ground-Level Fluid Fill and Drain
    • Ripper Lubrication – Autolube with Ground-Level Fill
    • Ripper Lubrication – Grouped
  • REAR ATTACHMENTS
    • Ripper – Single Shank with Pin Puller
    • Ripper - Single Shank – Push Block and Retrieval Hitch with Pin Puller
    • Ripper - Single Shank – Push Block and Retrieval Hitch with Pin Puller – Heavy
    • Ripper – Multi Shank (three shank)
    • Ripper – Multi Shank – Heavy (three shank)
    • Ripper – Multi Shank Leach Pad with Pin Puller
    • Ripper – Multi Shank – Coal (five shank)
    • Counterweight – Rear
    • Drawbar with Counterweight
  • BLADES
    • Semi-Universal (27.2 m³/35.6 yd³)
    • Universal (34.4 m³/45.0 yd³)
    • Carrydozer (43.6 m³/57 yd³)
    • Reclamation Universal (42 m³/55 yd³)
    • Coal Universal (75 m³/98.0 yd³)
    • Coal Universal (65 m³/85.5 yd³)
  • OTHER
    • Fire Suppression Ready
    • Fire Suppression Installed

Specs

Overview

Long Name:
D11 XE
Name:
D11 XE
Brand:
Status:
Current

Engine - U.S. EPA Tier 4 Final/EU Stage V

Engine Model
Cat® C32B
Engine Power - Net SAE J1349/ISO 9249 - Forward
861 hp / 742 kW
Displacement
1959 in³ / 32.1 l
Engine Power - Net SAE J1349/ISO 9249 - Reverse
956 hp / 713 kW
Note (1)
*Excludes all fan losses.
Note (2)
Engine ratings apply at 1,600 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Engine - U.S. EPA Tier 2 Equivalent

Engine Model
Cat® C32B
Displacement
1959 in³ / 32.1 l
Engine Power - Net SAE J1349/ISO 9249 - Forward
861 hp / 742 kW
Engine Power - Net SAE J1349/ISO 9249 - Reverse
959 hp / 715 kW
Note (1)
*Excludes all fan losses.
Note (2)
Engine ratings apply at 1,600 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Fuel Tank Capacities

Fuel Tank - Usable Volume
466 gal (US) / 1763 l

Service Refill Capacities

Cooling System
50.7 gal (US) / 192 l
Engine Crankcase
35.1 gal (US) / 133 l
Powertrain
120 gal (US) / 494 l
Power Train - Refill Volume
109.6 gal (US) / 415 l
Final Drive - Each
10.6 gal (US) / 40 l
Roller Frames - Each
24.8 gal (US) / 94 l
Hydraulic Tank
42.2 gal (US) / 160 l
Hydraulic System Tank and Chassis
64.7 gal (US) / 245 l
Hydraulic System Chassis + Blade and Ripper (Standard)
117.6 gal (US) / 445 l
Hydraulic System Chassis + Blade and Ripper (Carrydozer)
143.4 gal (US) / 540 l

Weights

Operating Weight
238794 lb / 108314 kg
Operating Weight - Carrydozer
257958 lb / 117007 kg
Note (1)
Operating weight includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note (2)
CD Operating Weight includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.

Hydraulic Controls

Pump Type
Variable displacement piston pump
Combined Pump Output - Implement
177 gpm / 670 L/min

Undercarriage

Width - Shoe
28 in / 710 mm
Width - Shoe - CD
36 in / 915 mm
Shoes/Side
41
Grouser Height
4 in / 101 mm
Pitch
12.5 in / 318 mm
Ground Clearance*
30.6 in / 777 mm
Track Gauge
114 in / 2896 mm
Length - Track on Ground
175 in / 4444 mm
Ground Contact Area
9781 in² / 6.3 m²
Ground Contact Area - CD
12605 in² / 8.1 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)

Air Conditioning System

Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). See the label or instruction manual for identification of the gas. – If equipped with R-1234yf (Global Warming Potential = 0.501), the system contains 1.75 kg of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (2.2 lbs). – If equipped with R-134a (Global Warming Potential = 1430), the system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons).

Standards

ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound (1)
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 113 dB(A) (sound suppressed).
Sound (2)
The operator equivalent sound pressure level (ISO 6396:2008) is 76 dB(A) (sound suppressed).

Transmission

1.0 Forward
2.5 mile/h / 4 km/h
2.0 Forward
4.4 mile/h / 7.1 km/h
3.0 Forward
7 mile/h / 11.3 km/h
1.0 Reverse
3 mile/h / 4.9 km/h
2.0 Reverse
5.4 mile/h / 8.7 km/h
3.0 Reverse
7 mile/h / 11.3 km/h

Blades

Semi-Universal (SU)* Capacity
35.6 yd³ / 27.2 m³
Semi-Universal (SU)* Width Over Endbits
219.8 in / 5584 mm
U-Blade Capacity
45 yd³ / 34.4 m³
U-Blade Width
249.6 in / 6340 mm
Reclamation Universal - Blade capacity (SAE J1265)
55 yd³ / 42 m³
Reclamation Universal - Width with blade (over end bits)
251.9 in / 6395 mm
Carry Dozer - Blade capacity (SAE J1265)
57 yd³ / 43.6 m³
Carry Dozer - Width with blade (over end bits)
263.9 in / 6704 mm

Ripper - Single Shank

Maximum penetration force * (shank vertical)
68195 lb / 303 kN
Maximum penetration depth (standard tip)
63.5 in / 1612 mm
Pryout Force
146991 lb / 654 kN

Ripper - Single Shank, Deep Ripping

Maximum penetration force * (shank vertical)
68434 lb / 304 kN
Maximum penetration depth (standard tip)
85.5 in / 2172 mm
Pryout Force
146376 lb / 651 kN

Ripper - Multi-Shank, Adjustable Parallelogram

Overall Beam Width
131.1 in / 3330 mm
Maximum Penetration Force - Shank Vertical
69112 lb / 307 kN
Maximum Penetration - Standard Tip
43.3 in / 1100 mm
Pry-Out Force - Multi-Shank Ripper with One Tooth
144785 lb / 644 kN

Dimensions

Ground Clearance*
31.4 in / 798 mm
Track Gauge
114 in / 2896 mm
Width - Over Trunnions
172.4 in / 4379 mm
Height - FOPS Cab*
173.4 in / 4405 mm
Height - Top of Stack*
179.1 in / 4549 mm
Height - ROPS/Canopy*
185.9 in / 4723 mm
Drawbar Height (Center of Clevis)*
37.1 in / 942 mm
Length - Track on Ground
175 in / 4444 mm
Overall Length - Basic Tractor
242.5 in / 6160 mm
Length - Basic Tractor - With Drawbar
242.5 in / 6160 mm
Length - With SU-Blade**
337.8 in / 8579 mm
Length - With U-Blade
340.2 in / 8641 mm
Length - With Single-Shank Ripper
319.2 in / 8107 mm
Length - With Multi-Shank Ripper
331.8 in / 8427 mm
Width - Without Trunnions - Standard Shoe
148.9 in / 3782 mm
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
**CD Blade on D11/D11 XE CD

SEE HOW D11 XE COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.

Large Dozers
D11 XE
D11 XE Dozer
Brand
Status
Current
Engine Model
Cat® C32B
Displacement
1959 in³ / 32.1 l
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
**CD Blade on D11/D11 XE CD
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Cooling System
50.7 gal (US) / 192 l
Operating Weight
238794 lb / 108314 kg
Pump Type
Variable displacement piston pump
Width - Shoe
28 in / 710 mm
Shoes/Side
41
Grouser Height
4 in / 101 mm
Pitch
12.5 in / 318 mm
Ground Clearance*
31.4 in / 798 mm
Track Gauge
114 in / 2896 mm
Length - Track on Ground
175 in / 4444 mm
Ground Contact Area
9781 in² / 6.3 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound (1)
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 113 dB(A) (sound suppressed).
Sound (2)
The operator equivalent sound pressure level (ISO 6396:2008) is 76 dB(A) (sound suppressed).
1.0 Forward
2.5 mile/h / 4 km/h
2.0 Forward
4.4 mile/h / 7.1 km/h
3.0 Forward
7 mile/h / 11.3 km/h
1.0 Reverse
3 mile/h / 4.9 km/h
2.0 Reverse
5.4 mile/h / 8.7 km/h
3.0 Reverse
7 mile/h / 11.3 km/h
Maximum penetration force * (shank vertical)
68434 lb / 304 kN
Maximum penetration depth (standard tip)
85.5 in / 2172 mm
Pryout Force
146376 lb / 651 kN
Maximum Penetration Force - Shank Vertical
69112 lb / 307 kN
Maximum Penetration - Standard Tip
43.3 in / 1100 mm
Pry-Out Force - Multi-Shank Ripper with One Tooth
144785 lb / 644 kN
Selected Model
Large Dozers
D11
D11
Brand
Caterpillar
Status
Current
Engine Model
Cat® C32B
Displacement
1959 in³ / 32.1 l
Note (1)
The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons)
Note (2)
D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Cooling System
46.8 gal (US) / 177 l
Operating Weight
235507 lb / 106614 kg
Pump Type
Variable displacement piston pump
Width - Shoe
28 in / 710 mm
Shoes/Side
41
Grouser Height
4 in / 102 mm
Pitch
12.5 in / 318 mm
Ground Clearance*
31.4 in / 798 mm
Track Gauge
114 in / 2896 mm
Length - Track on Ground
175 in / 4444 mm
Ground Contact Area
9781 in² / 6.3 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound (1)
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed).
Sound (2)
The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed).
1.0 Forward
2.5 mile/h / 4 km/h
2.0 Forward
4.4 mile/h / 7 km/h
3.0 Forward
7.6 mile/h / 12.2 km/h
1.0 Reverse
3 mile/h / 4.8 km/h
2.0 Reverse
5.3 mile/h / 8.5 km/h
3.0 Reverse
9.1 mile/h / 14.7 km/h
Maximum penetration force * (shank vertical)
66110 lb / 294 kN
Maximum penetration depth (standard tip)
85.5 in / 2172 mm
Pryout Force
148510 lb / 661 kN
Maximum Penetration Force - Shank Vertical
77350 lb / 344 kN
Maximum Penetration - Standard Tip
43.3 in / 1100 mm
Pry-Out Force - Multi-Shank Ripper with One Tooth
145640 lb / 648 kN
More Details
Large Dozers
D9
D9 Large Dozer
Brand
Cat
Status
Current
Engine Model
Cat® C18
Displacement
1106 in³ / 18.1 l
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
Variable speed, hydraulically driven, dual braking system, three-roller fairlead.
Note (3)
Fan pump output measured at 1,750 engine rpm and 17 000 kPa (2,470 psi)
Cooling System
21 gal (US) / 81.3 l
Operating Weight
110225 lb / 49988 kg
Pump Type
Piston-type geared to flywheel
Width - Shoe
24 in / 610 mm
Shoes/Side
43
Grouser Height
3.3 in / 84 mm
Pitch
9.4 in / 240 mm
Ground Clearance*
18.1 in / 459 mm
Track Gauge
88.6 in / 2250 mm
Length - Track on Ground
136.6 in / 3470 mm
Ground Contact Area
45.6 ft² / 4.23 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
ROPS
Rollover Protective Structure (ROPS) meets the following criteria ISO 3471:2008.
FOPS
Falling Object Protective Structure (FOPS) meets the following criteria ISO 3449:2005 LEVEL II.
Sound (1)
The average dynamic operator sound pressure level when ISO 6396:2008 is used to measure the value for an enclosed cab is 78 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: The dynamic operator sound pressure level uncertainty is +/-2 dB(A).
Sound (2)
Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment, or with a cab that is not properly maintained.
1.0 Forward
2.2 mile/h / 3.5 km/h
2.0 Forward
3.9 mile/h / 6.3 km/h
3.0 Forward
6.8 mile/h / 11 km/h
1.0 Reverse
2.7 mile/h / 4.4 km/h
2.0 Reverse
4.8 mile/h / 7.8 km/h
3.0 Reverse
8.4 mile/h / 13.6 km/h
Maximum penetration force * (shank vertical)
38667 lbf / 172 kN
Maximum penetration depth (standard tip)
68 in / 1727 mm
Pryout Force
74412 lbf / 331 kN
Maximum Penetration Force - Shank Vertical
34621 lbf / 154 kN
Maximum Penetration - Standard Tip
31.4 in / 798 mm
Pry-Out Force - Multi-Shank Ripper with One Tooth
81156 lbf / 361 kN
More Details
