MH3295

MH3295 Track Material Handler

Cat® MH3295 track material handlers are designed for optimum performance and operator comfort in barge loading/unloading and large scrapyard applications.

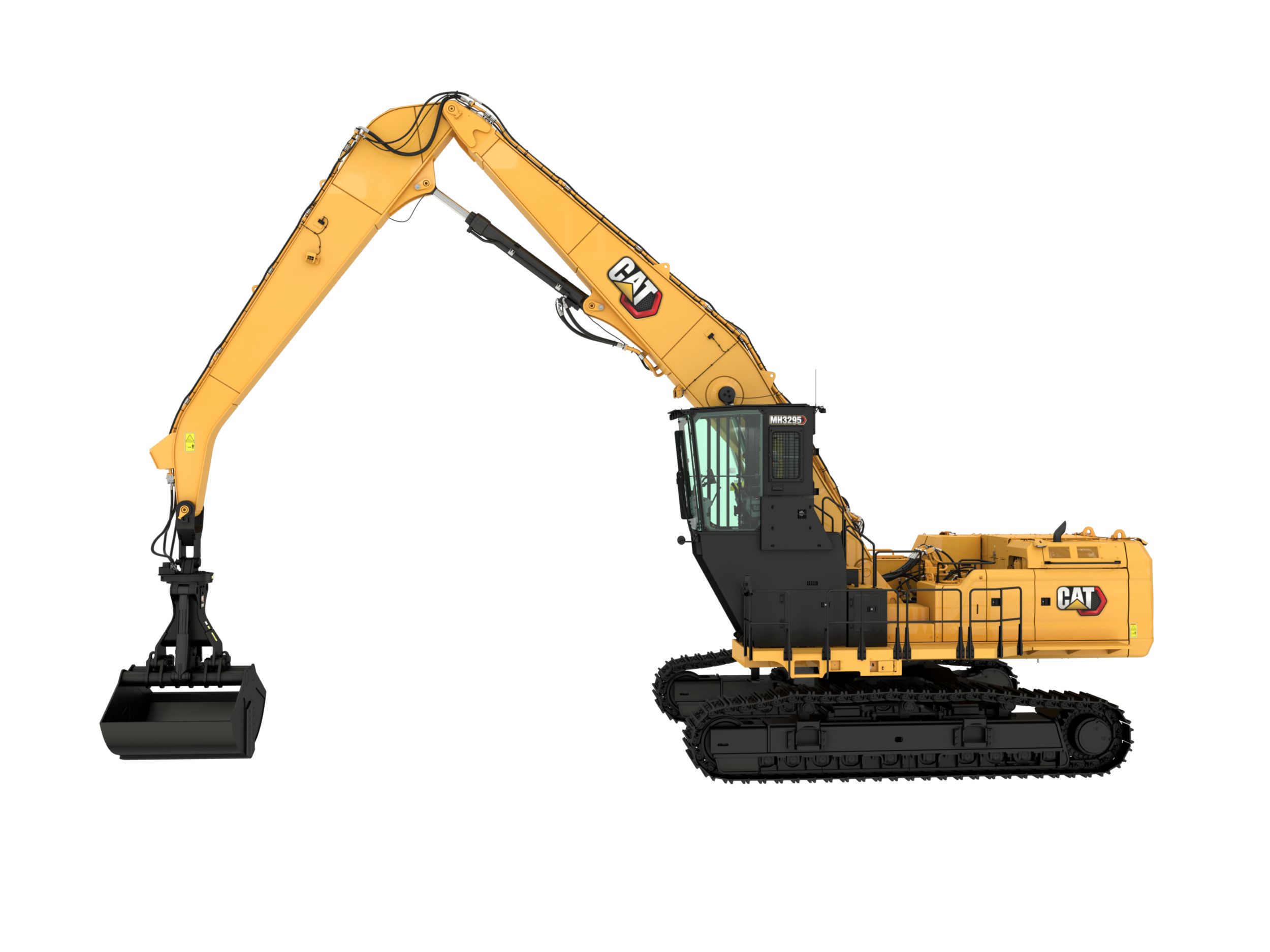

MH3295 Material Handler

DESCRIPTION

The Cat® MH3295 material handler is built for productivity, safety, and long-term value. With a purpose-built design, advanced electro-hydraulic controls, and a smooth, dedicated swing pump, operators can move more material with great precision and less effort. The wide undercarriage helps ensure machine stability, while shared service parts and easy-access maintenance features help reduce downtime and operating costs. A comfortable cab, high visibility, and technologies like Cat Payload and 2D E-fence help operators work efficiently and safely all day. The MH3295 is designed to help boost jobsite performance and deliver long lasting durability.

Stick Steer for Cat® Excavators

High Performance


  • The C18 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and China Nonroad Stage IV emission standards.
    •
  • Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
    •
  • The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
    •
  • Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
    •
  • Valve priority helps put hydraulic pressure and flow where you need it.
    •
  • The variable gauge undercarriage retracts for easy transportation and expands to help increase stability and lifting capacity.
    •
  • Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07D

Integrated Cat® Technologies


  • Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material with a grapple attachment and get a real-time weight estimate without swinging.
    •
  • VisionLink™ provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
    •
  • Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
    •
  • Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
    •
  • Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

Work in Comfort


  • The cab has a wide seat that adjusts for operators of all sizes.
    •
  • Control the machine comfortably with easy-to-reach controls all located in front of you.
    •
  • Standard automatic climate control keeps you at the right temperature all shift long.
    •
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
    •
  • Connect to personal devices via the standard radio's USB ports and Bluetooth® technology.
    •
  • Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without taking your hands off the joysticks.
    •
  • Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
    •
  • Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.

Reliable, Durable, and Versatile


  • Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
    •
  • Work up to 3000 m (9,840 ft) above sea level without de-rating.
    •
  • Don't let the temperature stop you from working. The machine has a standard cold-start capability of -18°C (0°F).
    •
  • Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
    •
  • Expand your work capabilities with attachments for a variety of applications.

Maintenance


  • Track your machine's filter life and maintenance intervals via the in-cab monitor.
    •
  • Scheduled Oil Sampling (S•O•SSM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
    •
  • The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
    •
  • The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
    •
  • High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
    •
  • Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Safety Features


  • Cab Avoidance helps you avoid contact between your work tool attachment and the cab.
    •
  • Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
    •
  • The secondary engine shutoff switch stops all fuel to the engine when activated and shuts down the machine.
    •
  • Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
    •
  • Enjoy great all-around visibility with the help of small cab pillars and large windows. Rearview, left-side, and right-side-view cameras are standard.
    •
  • Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
    •
  • Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
    •
  • The rear cab door entry design features enclosed stairways and integrated lights for well-lit access in all working conditions.
    •
  • Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
    •
  • Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

Sustainability


  • The Cat C18 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and China Nonroad Stage IV emission standards.
    •
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
    •
  • Cat Scheduled Oil Sampling (S•O•SSM) Services help reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
    •
  • Cat 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly jobsite fines.
    •
  • Extended maintenance intervals help reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    •
  • VisionLink™ displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
    •
  • Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
    •
  • Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

  • Standard Equipment
  • Optional Equipment
  • Specs
  • Docs

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • BOOMS AND STICKS
    • Short Boom 10.6 m (34'9")
    • 8.1 m (26'7") Drop Nose stick
  • CAB
    • High-resolution 254 mm (10") LCD touchscreen monitor
    • Automatic bi-level air conditioner
    • Keyless push-to-start engine control
    • Heated and cooled seat with air-adjustable suspension
    • 1829 mm (72") fixed riser
    • Polycarbonate windows
    • LED dome and floor lights
    • Rear entry
  • CAT TECHNOLOGY
    • VisionLink™
    • Remote Flash and Remote Troubleshoot
    • Cat Payload
  • ELECTRICAL SYSTEM
    • Maintenance-free batteries
    • LED lights on boom, stick, cab, and storage box
    • Centralized electrical disconnect switch
    • Power fuse module
  • ENGINE
    • Three selectable modes: Power, Smart, Eco
    • Up to 3000 m (9,840 ft) altitude capability without engine power de-rate
    • Cold start capability -18°C (0°F)
    • Double element air filter with integrated pre-cleaner
    • Automatic engine speed control
    • 95 amp alternator
    • Single plane three horizontal cooling system
    • On-demand electric cooling fans with auto-reverse function
  • HYDRAULIC SYSTEM
    • Electronic main control valve
    • Automatic hydraulic oil warm up
    • Automatic swing brake
    • Boom and stick lowering check valves
    • Boom and stick regeneration circuit
    • Medium pressure (grapple rotate)
    • High performance hydraulic return filter
    • Two travel speed modes
  • SAFETY AND SECURITY
    • Right-hand handrail and hand hold
    • Signal/warning horn
    • Secondary engine shutoff switch
    • Rearview, left-side, and right-side-view cameras
    • Cab avoidance
    • 2D E-fence
    • Swing Assist
    • Lockable external tool/storage box and fuel drain compartment
    • Easy lock cab tilting system
  • SERVICE AND MAINTENANCE
    • Scheduled Oil Sampling (S·O·S℠) ports
    • Grouped location for engine oil and fuel filters

Optional Equipment

Specs

Overview

Long Name:
MH3295 Track Material Handler
Name:
MH3295
Brand:
Cat
Status:
Current

Engine

Engine Model
Cat® C18
Net Power - ISO 9249
542 hp / 404 kW
Net Power - ISO 9249 (DIN)
550 hp (metric) / 550 hp (metric)
Engine Power - ISO 14396
543 hp / 405 kW
Engine Power - ISO 14396 (DIN)
551 hp (metric) / 551 hp (metric)
Bore
6 in / 145 mm
Stroke
7 in / 183 mm
Displacement
1105 in³ / 18.1 l
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and China Nonroad Stage IV emission standards.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Transmission

Maximum Travel Speed
2.8 mile/h / 4.5 km/h
Maximum Drawbar Pull
53729 lbf / 580 kN
Gradeability
28°/53%

Hydraulic System

Maximum Pressure - Implements
5080 psi / 35000 kPa
Maximum Pressure - Swing
4496 psi / 31000 kPa
Maximum Pressure - Travel
5080 psi / 35000 kPa

Swing Mechanism

Swing Speed*
5.4 r/min / 5.4 r/min
Swing Torque
267300 lbf·ft / 362 kN·m
Note (1)
*For CE-marked machine default value may be set lower.

Weights

Operating Weight
222100 lb / 100700 kg
Note (1)
Operating weight includes 10.6 m (34'9") Short boom, 8.1 m (26'7") Drop Nose stick, 750 mm (30") double grouser shoes, 15.5 mt (34,060 lb) counterweight and no work tool.

Service Refill Capacities

Fuel Tank Capacity
322.3 gal (US) / 1220 l
Cooling System
18.8 gal (US) / 71 l
Engine Oil
17.7 gal (US) / 67 l
Final Drive - Each
5.3 gal (US) / 20 l
Hydraulic System - Including Tank
195.5 gal (US) / 740 l
Hydraulic Tank
114.1 gal (US) / 432 l
Diesel Exhaust Fluid (DEF) Tank
21.1 gal (US) / 80 l

Dimensions

Boom
Short Boom 10.6 m (34'9")
Stick
8.1 m (26'7") Drop Nose stick
Operating Height - To Top of Cab (Fixed)
19.7 ft / 6010 mm
Shipping Height - Cab Tipped
12.4 ft / 3790 mm
Height - Top of Exhaust
13.3 ft / 4040 mm
Shipping Length (without stick)
34.3 ft / 10460 mm
Upper Frame Width (includes walkways and handrails)
19.2 ft / 5850 mm
Tail Swing Radius
15.9 ft / 4840 mm
Counterweight Clearance
5.6 ft / 1700 mm
Ground Clearance
2.8 ft / 850 mm
Track Length to Center of Rollers
19.4 ft / 5900 mm
Track Length
23.5 ft / 7150 mm
Track Gauge-Retracted
13.4 ft / 4080 mm
Track Gauge- Extended
15.9 ft / 4840 mm
Undercarriage Width-Retracted,750 mm (30”) shoes
16.5 ft / 5020 mm
Undercarriage Width-Extended
19 ft / 5780 mm

Working Ranges

Maximum Reach
57.7 ft / 17590 mm
Boom
Short Boom 10.6 m (34'9")
Stick
8.1 m (26'7") Drop Nose stick
Maximum Height
59.2 ft / 18040 mm
Minimum Swing Radius-Front
19.3 ft / 5880 mm
Maximum Depth
23.2 ft / 7060 mm
Boom Pin Height
44.2 ft / 13460 mm

Air Conditioning System

Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.8 kg (6.17 lb) of refrigerant which has a CO2 equivalent of 4.004 metric tonnes (4.414 tons).

SEE HOW MH3295 COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.

Track Material Handlers
MH3295
MH3295 Material Handler
Brand
Cat
Status
Current
Engine Model
Cat® C18
Net Power - ISO 9249
542 hp / 404 kW
Net Power - ISO 9249 (DIN)
550 hp (metric) / 550 hp (metric)
Engine Power - ISO 14396
543 hp / 405 kW
Engine Power - ISO 14396 (DIN)
551 hp (metric) / 551 hp (metric)
Bore
6 in / 145 mm
Stroke
7 in / 183 mm
Displacement
1105 in³ / 18.1 l
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and China Nonroad Stage IV emission standards.
Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.8 kg (6.17 lb) of refrigerant which has a CO2 equivalent of 4.004 metric tonnes (4.414 tons).
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Maximum Travel Speed
2.8 mile/h / 4.5 km/h
Maximum Drawbar Pull
53729 lbf / 580 kN
Gradeability
28°/53%
Maximum Pressure - Implements
5080 psi / 35000 kPa
Maximum Pressure - Swing
4496 psi / 31000 kPa
Maximum Pressure - Travel
5080 psi / 35000 kPa
Swing Speed*
5.4 r/min / 5.4 r/min
Swing Torque
267300 lbf·ft / 362 kN·m
Operating Weight
222100 lb / 100700 kg
Fuel Tank Capacity
322.3 gal (US) / 1220 l
Cooling System
18.8 gal (US) / 71 l
Engine Oil
17.7 gal (US) / 67 l
Final Drive - Each
5.3 gal (US) / 20 l
Hydraulic System - Including Tank
195.5 gal (US) / 740 l
Hydraulic Tank
114.1 gal (US) / 432 l
Diesel Exhaust Fluid (DEF) Tank
21.1 gal (US) / 80 l
Boom
Short Boom 10.6 m (34'9")
Stick
8.1 m (26'7") Drop Nose stick
Shipping Length (without stick)
34.3 ft / 10460 mm
Upper Frame Width (includes walkways and handrails)
19.2 ft / 5850 mm
Tail Swing Radius
15.9 ft / 4840 mm
Counterweight Clearance
5.6 ft / 1700 mm
Ground Clearance
2.8 ft / 850 mm
Track Length to Center of Rollers
19.4 ft / 5900 mm
Track Length
23.5 ft / 7150 mm
Track Gauge-Retracted
13.4 ft / 4080 mm
Track Gauge- Extended
15.9 ft / 4840 mm
Undercarriage Width-Extended
19 ft / 5780 mm
Maximum Reach
57.7 ft / 17590 mm
Maximum Height
59.2 ft / 18040 mm
Minimum Swing Radius-Front
19.3 ft / 5880 mm
Maximum Depth
23.2 ft / 7060 mm
Boom Pin Height
44.2 ft / 13460 mm
Selected Model
Track Material Handlers
MH3260

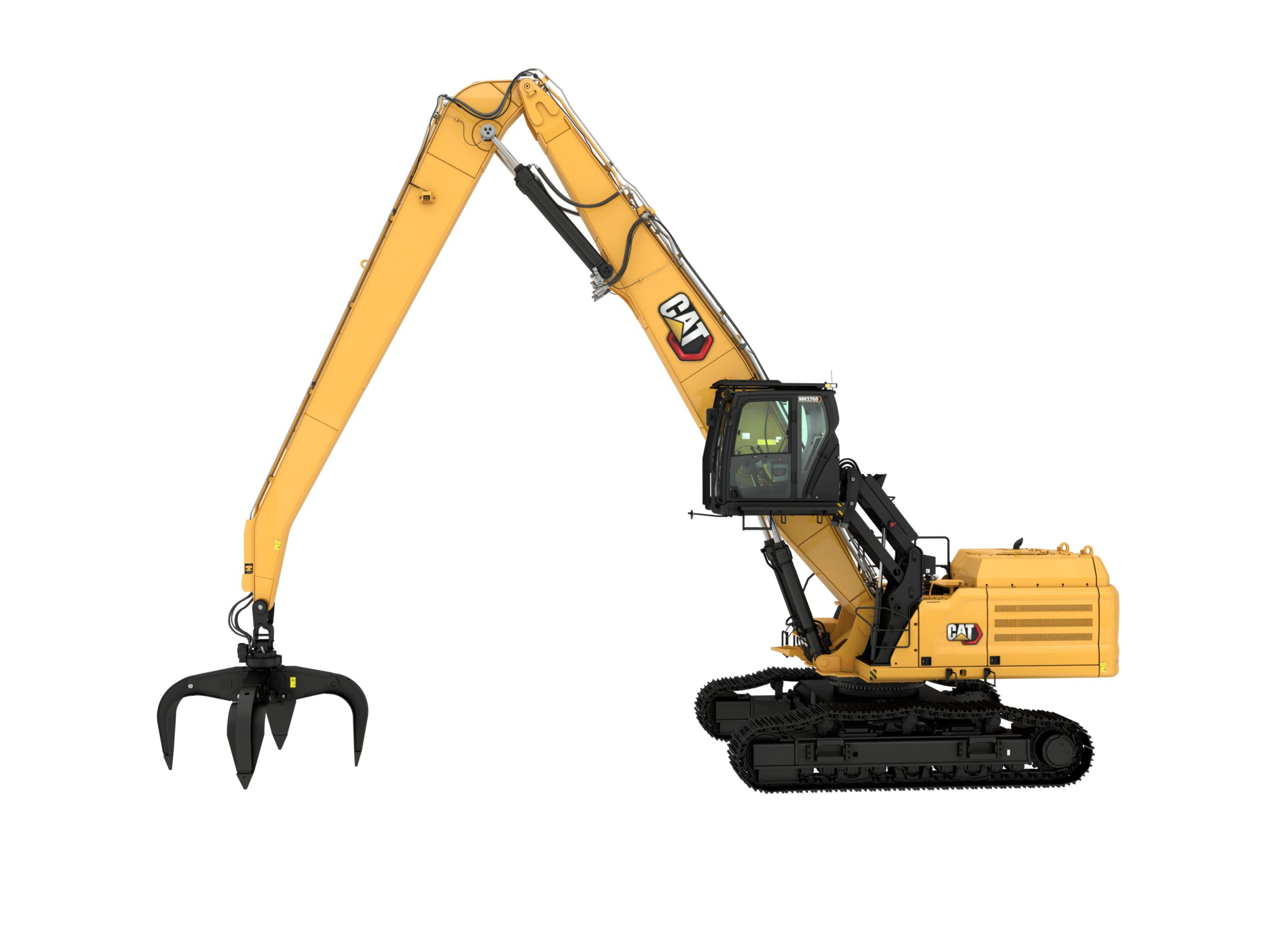

MH3260 Material Handler
Brand
Cat
Status
Current
Engine Model
Cat® C13
Net Power - ISO 9249
424 hp / 316 kW
Net Power - ISO 9249 (DIN)
430 hp (metric) / 430 hp (metric)
Engine Power - ISO 14396
425 hp / 317 kW
Engine Power - ISO 14396 (DIN)
431 hp (metric) / 431 hp (metric)
Bore
5 in / 130 mm
Stroke
6 in / 157 mm
Displacement
763 in³ / 12.5 l
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.19 kg (2.62 lb) of refrigerant which has a CO2 equivalent of 1.702 metric tonnes (1.875 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.19 kg (2.62 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Maximum Travel Speed
3 mile/h / 4.8 km/h
Maximum Drawbar Pull
53729 lbf / 239 kN
Gradeability
30°/58%
Maximum Pressure - Implements
5076 psi / 35000 kPa
Maximum Pressure - Swing
3771 psi / 26000 kPa
Maximum Pressure - Travel
5076 psi / 35000 kPa
Swing Speed*
8 r/min / 8 r/min
Swing Torque
137924 lbf·ft / 187 kN·m
Operating Weight
133200 lb / 60420 kg
Fuel Tank Capacity
188.9 gal (US) / 715 l
Cooling System
13.7 gal (US) / 52 l
Engine Oil
10.6 gal (US) / 40 l
Final Drive - Each
4 gal (US) / 15 l
Hydraulic System - Including Tank
145.3 gal (US) / 550 l
Hydraulic Tank
57.3 gal (US) / 217 l
Diesel Exhaust Fluid (DEF) Tank
12.2 gal (US) / 46 l
Boom
MH 9.9 m (32'6")
Stick
Industrial 9.1 m (29'10")
Shipping Length (without stick)
45 ft / 13710 mm
Upper Frame Width (includes walkways and handrails)
12.6 ft / 3830 mm
Tail Swing Radius
12.3 ft / 3760 mm
Counterweight Clearance
4.7 ft / 1420 mm
Ground Clearance
2.3 ft / 710 mm
Track Length to Center of Rollers
14.2 ft / 4340 mm
Track Length
17.6 ft / 5370 mm
Track Gauge-Retracted
10.6 ft / 3220 mm
Track Gauge- Extended
12.2 ft / 3720 mm
Undercarriage Width-Extended
14.8 ft / 4510 mm
Maximum Reach
59.1 ft / 18000 mm
Maximum Height
58.5 ft / 17820 mm
Minimum Swing Radius-Front
13.1 ft / 4000 mm
Maximum Depth
26.7 ft / 8150 mm
Boom Pin Height
39.8 ft / 12120 mm
More Details
Track Material Handlers
MH3250

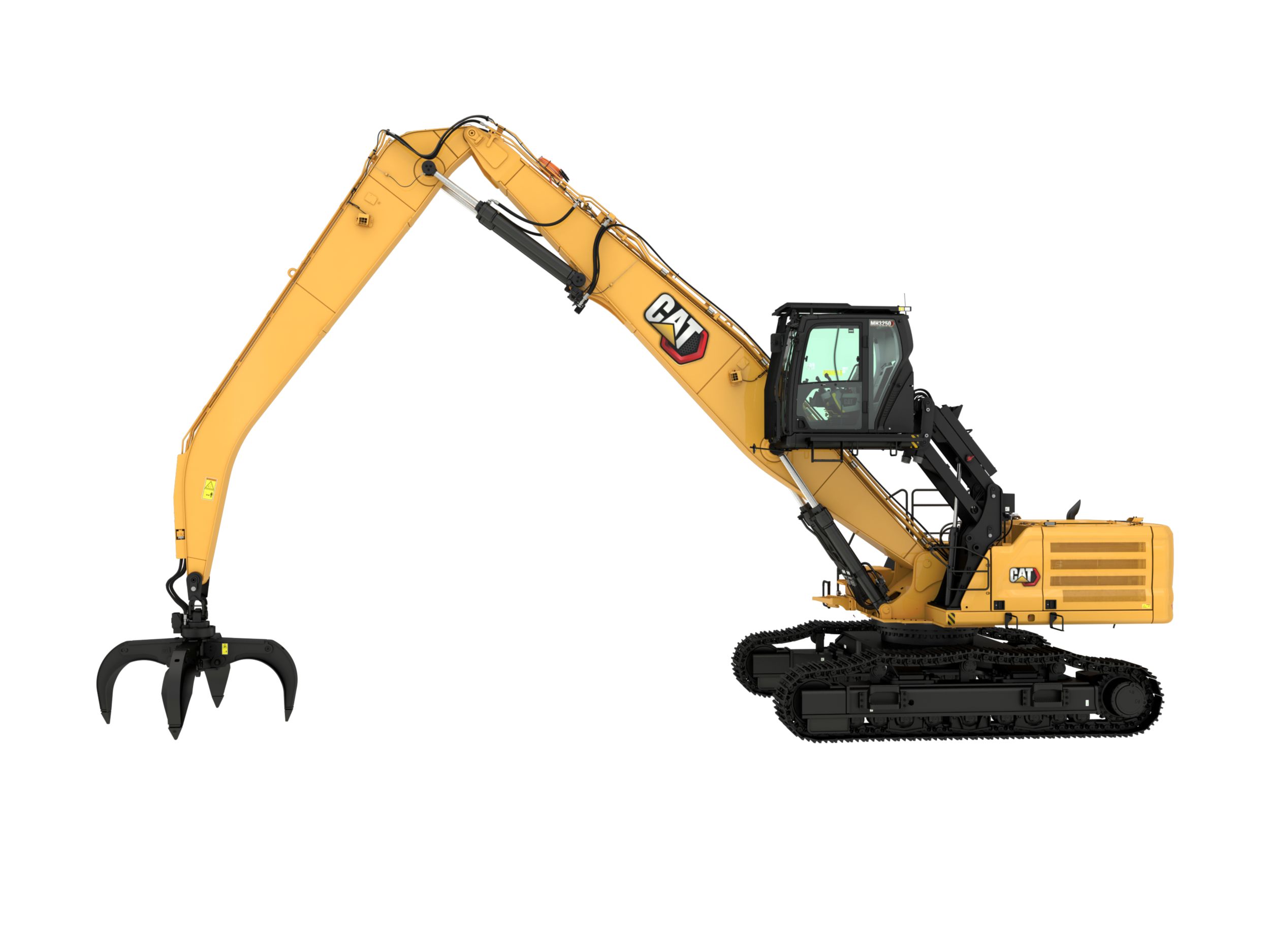

MH3250 Material Handler
Brand
Cat
Status
Current
Engine Model
Cat® C9.3B
Net Power - ISO 9249
311 hp / 232 kW
Net Power - ISO 9249 (DIN)
315 hp (metric) / 315 hp (metric)
Engine Power - ISO 14396
314 hp / 234 kW
Engine Power - ISO 14396 (DIN)
318 hp (metric) / 318 hp (metric)
Bore
5 in / 115 mm
Stroke
6 in / 149 mm
Displacement
568 in³ / 9.3 l
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.559 metric tonnes (1.718 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Maximum Travel Speed
2.1 mile/h / 3.4 km/h
Maximum Drawbar Pull
55281 lbf / 246 kN
Gradeability
35°/70%
Maximum Pressure - Implements
5076 psi / 35000 kPa
Maximum Pressure - Swing
4061 psi / 32000 kPa
Maximum Pressure - Travel
5076 psi / 35000 kPa
Swing Speed*
8 r/min / 8 r/min
Swing Torque
104734 lbf·ft / 142 kN·m
Operating Weight
107700 lb / 48850 kg
Fuel Tank Capacity
158.5 gal (US) / 600 l
Cooling System
10.6 gal (US) / 40 l
Engine Oil
8.5 gal (US) / 32 l
Final Drive - Each
4 gal (US) / 15 l
Hydraulic System - Including Tank
98.5 gal (US) / 373 l
Hydraulic Tank
42.5 gal (US) / 161 l
Diesel Exhaust Fluid (DEF) Tank
21.1 gal (US) / 80 l
Boom
MH 9.2 m (30'2")
Stick
Industrial 7.6 m (24'11")
Shipping Length (without stick)
41.7 ft / 12700 mm
Upper Frame Width (includes walkways and handrails)
12.5 ft / 3820 mm
Tail Swing Radius
11.6 ft / 3530 mm
Counterweight Clearance
4.6 ft / 1410 mm
Ground Clearance
2.3 ft / 700 mm
Track Length to Center of Rollers
14.2 ft / 4340 mm
Track Length
17.6 ft / 5350 mm
Track Gauge-Retracted
10.6 ft / 3220 mm
Track Gauge- Extended
12.2 ft / 3720 mm
Undercarriage Width-Extended
14.8 ft / 4510 mm
Maximum Reach
52.5 ft / 16010 mm
Maximum Height
55.3 ft / 16850 mm
Minimum Swing Radius-Front
12.7 ft / 3870 mm
Maximum Depth
23.3 ft / 7090 mm
Boom Pin Height
37.6 ft / 11450 mm
More Details
