SE47 FM (4B5) Vibratory Screed

SE47 FM (4B5) Vibratory Screed

The Cat® SE47 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.

SE47 FM (4B5) Screed

DESCRIPTION

The Cat® SE47 FM screed provides application versatility with mutiple berm options and a small foot print for starting next to curbs and obstacles. This screed is a perfect match for urban streets, parking lots, rural roads and many other variable width paving applications.

Application Versatility

  • The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.
  • Common applications include parking lots, urban and rural roads, subdivision streets, and highways
  • Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
  • Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")

Quick Adjustment

  • Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow. When equipped with Cat® Grade Control, conveyor ratio adjustment or conveyor material height can be performed through the display
  • Exclusive trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
  • Extender angle of attack is easily accessible from the top of the extender frame
  • Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
  • Slope stops help maintain performance

Smooth Material Flow

  • Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
  • Heated end gate option improves material flow for enhanced longitudinal joints
  • The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality

Quick Heat, Even Distribution

  • Screed plate heating in as little as 25 minutes to 130º C (266º F)
  • Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
  • Durable heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures

Simple Operation

  • Proportional extender control provides smooth adjustment when transitioning paving widths
  • Screed operating consoles are equipped with mix height dial for the augers and conveyors, providing the ability to modify material flow
  • Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures

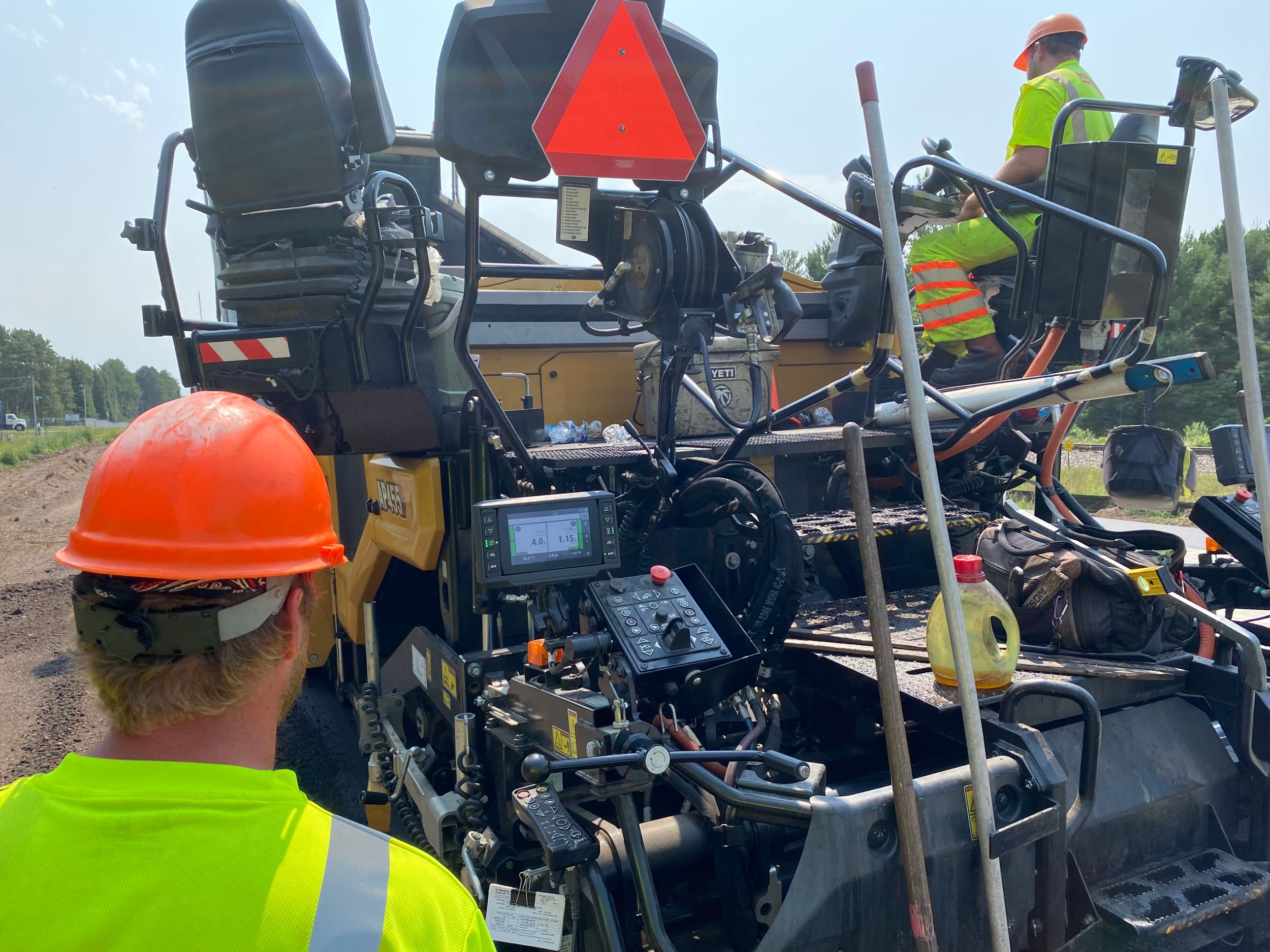

Pendent Control (Option)

  • Independent feeder system control includes manual and pause functions for each auger and conveyor
  • Emergency engine stop feature
  • Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position

Cat® Grade Control (Option)

  • Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
  • User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
  • Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment

Service and Repair Kits

  • Paver and screed service and repair kits include the parts necessary to complete specific repairs
  • Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
  • Repair kits are identified by a single part number to make ordering easy
  • Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

  • Standard Equipment
  • Optional Equipment
  • Specs
  • Docs

Standard Equipment

Optional Equipment

  • Operating Environment
    • Pendent control
    • Visor _ LCD display
  • Technology
    • Cat Grade Control
  • Safety
    • Lights_roading
  • Material Delivery
    • Berm attachments
    • Cutoff shoe
    • Drop arm spacer
    • End gate_heated
    • End gate shoe_safety edge
    • ExtensionsExtension _ 100 mm (4") high angle of attack
    • Extension _ 305 mm (12")
    • Extension _ 457 mm (18")
    • Extension _ 610 mm (24")
    • Screed plate _ dove tail
    • Tapered notch extension with 457 mm (18")
    • Vibratory sled _ utilized with tapered notch

Specs

Overview

Long Name:
SE47 FM (4B5) Vibratory Screed
Name:
SE47 FM (4B5) Vibratory Screed
Brand:
Cat
Status:
Current

Weights

Standard Weight
6073 lb / 2755 kg

Operating Specifications

Standard Paving Range
2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width
20.5 ft / 6.25 m
Maximum Paving Depth
10 in / 250 mm
Heating Time - Maximum Width
25 minutes
Heating Time - Standard Width
15 minutes

Dimensions

Minimum Width - Endgates Attached
102 in / 2590 mm
Transport Length - Tractor and Screed
18.1 ft / 5505 mm

Operating Specifications

Crown Range
-5% to +10%
Vibratory Speed Range
0 to 3000 vpm
Extender Height Range
-41 mm to +6.25 mm
Extender Slope Range
0% to 9%

Dimensions

Screed Plates Width, Front to Back, Main Screed
24 in / 616 mm
Screed Plates Width, Front to Back, Extenders
9 in / 228 mm
Length - Front to Back, Endgates Attached
86 in / 2191 mm
Length - Front to Back, Endgates Removed
59 in / 1509 mm

SEE HOW SE47 FM (4B5) Vibratory Screed COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.

Screeds
SE47 FM (4B5) Vibratory Screed
SE47 FM (4B5) Screed
Brand
Cat
Status
Current
Standard Weight
6073 lb / 2755 kg
Standard Paving Range
2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width
20.5 ft / 6.25 m
Maximum Paving Depth
10 in / 250 mm
Heating Time - Maximum Width
25 minutes
Heating Time - Standard Width
15 minutes
Minimum Width - Endgates Attached
102 in / 2590 mm
Transport Length - Tractor and Screed
18.1 ft / 5505 mm
Crown Range
-5% to +10%
Vibratory Speed Range
0 to 3000 vpm
Extender Height Range
-41 mm to +6.25 mm
Extender Slope Range
0% to 9%
Screed Plates Width, Front to Back, Main Screed
24 in / 616 mm
Screed Plates Width, Front to Back, Extenders
9 in / 228 mm
Length - Front to Back, Endgates Attached
86 in / 2191 mm
Length - Front to Back, Endgates Removed
59 in / 1509 mm
Screeds
SE47 FM (411) Vibratory Screed
SE47 FM (411) Screed
Brand
Cat
Status
Current
Standard Weight
6200 lb / 2812 kg
Standard Paving Range
2.44 - 4.7 m (8' - 15' 6")
Maximum Paving Width
20.5 ft / 6.25 m
Maximum Paving Depth
10 in / 250 mm
Heating Time - Maximum Width
25 minutes
Heating Time - Standard Width
15 minutes
Minimum Width - Endgates Attached
118 in / 2982 mm
Transport Length - Tractor and Screed
20.9 ft / 6375 mm
Crown Range
-5% to +10%
Vibratory Speed Range
0 to 3000 vpm
Extender Height Range
-41 mm to +6.5 mm
Extender Slope Range
0% to +9%
Screed Plates Width, Front to Back, Main Screed
24 in / 616 mm
Screed Plates Width, Front to Back, Extenders
9 in / 228 mm
Length - Front to Back, Endgates Attached
86 in / 2191 mm
Length - Front to Back, Endgates Removed
59 in / 1509 mm
Screeds
SE47 V Vibratory Screed
SE47 V Screed
Brand
Cat
Status
Current
Standard Weight
5850 lb / 2654 kg
Standard Paving Range
2.44 - 4.7 m (8' - 15' 6")
Maximum Paving Width
20 ft / 6.1 m
Maximum Paving Depth
10 in / 250 mm
Heating Time - Maximum Width
25 minutes
Heating Time - Standard Width
15 minutes
Minimum Width - Endgates Attached
102 in / 2590 mm
Transport Length - Tractor and Screed
18.1 ft / 5523 mm
Crown Range
+6% to -2%
Vibratory Speed Range
0 to 3000 vpm
Extender Height Range
+30 mm to -20 mm
Extender Slope Range
+10% to -3%
Screed Plates Width, Front to Back, Main Screed
12.8 in / 324 mm
Screed Plates Width, Front to Back, Extenders
12.8 in / 324 mm
Length - Front to Back, Endgates Attached
84 in / 2123 mm
Length - Front to Back, Endgates Removed
60 in / 1532 mm
