New | Forks

Block Forks

Cat® Block Forks move brick and block efficiently around the job site.

ModelFork Tine LengthFork Tine WidthFork Tine Thickness
1220 mm (48 in)48 in2 in2 inVIEW

Construction Forks

Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.

ModelCarriage HeightCarriage WidthFork Tine Length
108" Tine, 108" Carriage Fusion Construction Fork44.5 in111.5 in96 inVIEW
48" Tine, 108" Carriage Fusion Construction Fork44.5 in111.5 in48 inVIEW
48" Tine, 96" Carriage Fusion Construction Fork44.5 in99.5 in48 inVIEW
60" Tine, 108" Carriage Fusion Construction Fork44.5 in111.5 in60 inVIEW
60" Tine, 96" Carriage Fusion Construction Fork44.5 in99.5 in60 inVIEW
72" Tine, 108" Carriage Fusion Construction Fork44.5 in111.5 in72 inVIEW
72" Tine, 96" Carriage Fusion Construction Fork44.5 in99.5 in72 inVIEW
84" Tine, 108" Carriage Fusion Construction Fork44.5 in111.5 in84 inVIEW
84" Tine, 96" Carriage Fusion Construction Fork44.5 in99.5 in84 inVIEW
96" Tine, 96" Carriage Fusion Construction Fork44.5 in99.5 in2438 inVIEW
ModelCarriage HeightCarriage WidthCarriage Weight
bcp_538-3866_1524 mm (60 in)54.1 in98.3 in1352.3 lbVIEW
bcp_538-3867_1829 mm (72 in)54.1 in98.3 in1352.3 lbVIEW

Heavy Duty Fork Carriages

Cat® Heavy Duty Fork Carriages for are designed to meet a wide variety of material handling needs that are above what standard duty fork carriages can handle. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.

ModelHeightWidthWeight
bcp_532-7810_1438 mm (57 in)36 in57 in320 lbVIEW

Heavy Duty Fork Tines

Cat® Heavy Duty Fork Tines for use with Cat heavy duty fork carriages are designed to meet a wide variety of material handling needs above those, that a standard pallet fork can handle. Fork tines come in different sizes to accommodate moving bulky or palletized materials on construction and industrial sites.

ModelOverall LengthTine LengthWidth
bcp_540-1432_1219 mm (48 in)51 in48 in4.8 inVIEW
bcp_540-1433_1524 mm (60 in)63 in60 in4.8 inVIEW

Industrial Grapple Forks

Cat® Industrial Grapple Forks for Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, and Compact Wheel Loaders are designed to easily handle a wide array of bulky, loose, pierceable objects encountered in demolition, industrial, construction, recycling, and other aggressive applications.

ModelWidthHeight - Grapples ClosedJaw Opening
bcp_279-5350_1676 mm (66 in)66 in31.9 in38 inVIEW
bcp_279-5360_1829 mm (72 in)72 in32 in38 inVIEW

Log & Lumber Fork Carriages

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.

ModelInterface TypeTine ConfigurationHeight
bcp_520-3462_1702 mm (68 in)IT CouplerSwinging, Floating74 inVIEW
bcp_520-3466_2659 mm (105 in)Fusion™Non-swinging, Non-floating57 inVIEW
bcp_520-3467_2659 mm (105 in)Pin On CouplerNon-swinging, Non-floating57 inVIEW
bcp_539-2249_2812 mm (111 in)Pin On CouplerNon-swinging, Non-floating57 inVIEW
bcp_540-6596_1869 mm (74 in)Fusion™ CouplerNon-swinging, Floating60 inVIEW
bcp_540-6599_2174 mm (86 in)Fusion™ CouplerNon-swinging, Floating60 inVIEW
bcp_540-6600_1827 mm (72 in)IT CouplerNon-swinging, Floating59 inVIEW
bcp_545-5791_1705 mm (68 in)Fusion™ CouplerSwinging, Floating74 inVIEW

Log & Lumber Fork Tines

Cat® Log & Lumber Forks are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.

ModelOverall LengthLengthWidth
bcp_520-3458_1219 mm (48 in)55 in48 in6 inVIEW
bcp_520-3459_1524 mm (60 in)67 in60 in6 inVIEW
bcp_520-3460_1829 mm (72 in)79 in72 in6 inVIEW
bcp_520-3463_1219 mm (48 in)55 in48 in6 inVIEW
bcp_520-3464_1524 mm (60 in)67 in60 in6 inVIEW
bcp_520-3465_1829 mm (72 in)79 in72 in6 inVIEW
bcp_520-3468_1829 mm (72 in)79 in72 in7 inVIEW
bcp_520-3469_2438 mm (96 in)103 in96 in7 inVIEW

Log and Lumber Forks

Log & Lumber forks utilize flat fork tines and a raised back. In the forestry industry, log and lumber forks are used to load, unload, move, deck, sort and feed the mill. Their flat tines and raised back are designed specifically for use in handling both unfinished logs and stacked lumber.

ModelTine LengthWidthHeight
1219mm (48in)48 in99 in69 inVIEW
1219mm (48in) Fusion48 lb/in96 lb/in59 lb/inVIEW
1219mm (48in) wTop Clamp48 lb/in76 lb/in59 lb/inVIEW
1219mm (48in) wTop Clamp, Fusion48 lb/in76 lb/in59 lb/inVIEW
1524mm (60in)60 in99 in69 inVIEW
1524mm (60in) Fusion60 lb/in84 lb/in59 lb/inVIEW
1829mm (72in)72 in96 in61 inVIEW
1829mm (72in) Fusion72 lb/in96 lb/in61 lb/inVIEW
2438mm (96in)96 in96 in61 inVIEW
2438mm (96in) Fusion96 lb/in96 lb/in59 lb/inVIEW

Logging Forks

Logging Forks feature two independent top clamps that close down on the tine tips. This open profile provides maximum capacity for unloading trucks and feeding the mill. The structures are designed to thrive in the high-load environment of the yard, with reinforcements at key areas.

ModelFork WidthWidth - Over TinesWidth - Between Tines
2298mm (90in)90 in90 in73 inVIEW
2419mm (96in)96 in96 in76 inVIEW
2802mm (110in)110 in108 in89 inVIEW
385-814898 in95 in95 inVIEW
421-854695 in90 in90 inVIEW

Millyard Forks

Millyard Forks move and sort logs throughout the processing cycle. The large top clamp closes between the tines to pick and move single logs, while still maintaining the capacity for moving full loads. The curved frame design promotes a rolling action of the logs for smooth loading and unloading. The structure is durable and built to handle heavy loads. The top clamp is built for rigidity and strength.

ModelWidthWidth - Over TinesWidth - Between Tines
2286mm (90in)90 lb/in90 lb/in73 lb/inVIEW
2419mm (96in)96 lb/in96 lb/in76 lb/inVIEW
2776mm (109in)109 lb/in108 lb/in87 lb/inVIEW

Millyard Pole Forks

Optimized for pole yards, the Millyard Pole Fork features a refined frame profile and a top clamp that closes tighter to the frame. The result is positive, secure clamping of single poles as they are moved through the yard. The curved frame design promotes a rolling action of the logs for smooth loading and unloading.

ModelFork WidthWidth - Over TinesWidth - Between Tines
2184mm (86in)86 lb/in86 lb/in75 lb/inVIEW

Pallet Fork Carriages

Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.

ModelCarriage HeightCarriage WidthCarriage Weight
bcp_132-2443_1550 mm (61 in)38.5 in61 in681 lbVIEW
bcp_223-5140_1300 mm (51 in)25.8 in51.2 in342.2 lbVIEW
bcp_223-5141_1300 mm (51 in)25 in51.2 in429.9 lbVIEW
bcp_257-2506_1550 mm (61 in)31 in61 in503 lbVIEW
bcp_261-1315_1169 mm (46 in)19.2 in46 in190 lbVIEW
bcp_261-1350_1312 mm (52 in)21.7 in51.7 in249.1 lbVIEW
bcp_261-1425_1397 mm (55 in)22.8 in55 in310.9 lbVIEW
bcp_345-2415_1566 mm (62 in)44 in61.7 in749.6 lbVIEW
bcp_351-9371_1270 mm (50 in)35.9 in50 in207.2 lbVIEW
bcp_390-8288_1550 mm (61 in)36.8 in61 in539 lbVIEW
bcp_463-9902_1042 mm (41 in)20 in41 in247 lbVIEW
bcp_463-9907_1042 mm (41 in)19 in41 in174 lbVIEW
bcp_532-8222_1566 mm (62 in)39.6 in61.7 in1569.9 lbVIEW
bcp_555-3376_1566 mm (62 in)37.5 in61.7 in714.3 lbVIEW
bcp_6W-8832_1550 mm (61 in)35.3 in61 in699.1 lbVIEW

Pallet Fork Tines

Cat® Pallet Fork Tines for Cat pallet fork carriages are designed to meet a wide variety of material handling needs. Fork tines come in different sizes to accommodate moving bulky or palletized materials on construction and industrial sites. Offset Pallet Fork Tines are used to prevent loader arm dragging in truck bed applications. They can be used for unloading and handling of materials on building construction sites.

ModelFork Tine LengthFork Tine WidthFork Tine Thickness
1067 mm (42 in)42 in5 in2 inVIEW
1219 mm (48 in)48 in5 in2.36 inVIEW
1525 mm (60 in)60 in6 in2.36 inVIEW
ModelFork Tine LengthFork Tine WidthFork Tine Height
bcp_138-8896_1120 mm (44 in)44 in3.9 in25.6 inVIEW
bcp_149-7665_1120 mm (44 in)44 in3.9 in21.3 inVIEW
bcp_172-3228_1524 mm (60 in)60 in5.9 in31.5 inVIEW
bcp_195-6935_1220 mm (48 in)48 in4.8 in31.2 inVIEW
bcp_195-6937_1070 mm (42 in)42 in4.8 in31.2 inVIEW
bcp_195-6938_1370 mm (54 in)54 in4.8 in31.2 inVIEW
bcp_195-6939_1370 mm (54 in)54 in4.8 in31.2 inVIEW
bcp_195-6942_1070 mm (42 in)42 in3.9 in21.3 inVIEW
bcp_195-6943_914 mm (36 in)36 in3.9 in21.3 inVIEW
bcp_195-8545_1220 mm (48 in)48 in3.9 in21.3 inVIEW
bcp_202-5483_1220 mm (48 in)48 in3.9 in25.6 inVIEW
bcp_241-0921_1220 mm (48 in)48 in4.9 in31.5 inVIEW
bcp_241-0922_1220 mm (48 in)48 in4.9 in31.5 inVIEW
bcp_360-3354_1370 mm (54 in)54 in5.9 in29.8 inVIEW
bcp_360-3355_1370 mm (54 in)54 in5.9 in29.8 inVIEW
bcp_368-2610_1219 mm (48 in)48 in3.9 in32.6 inVIEW
bcp_371-2348_1220 mm (48 in)48 in5.9 in29.8 inVIEW
bcp_371-2354_1370 mm (54 in)54 in5.9 in29.8 inVIEW
bcp_371-2360_1524 mm (60 in)60 in5.9 in29.8 inVIEW
bcp_371-2374_1220 mm (48 in)48 in5.9 in29.8 inVIEW
bcp_371-2375_1220 mm (48 in)48 in5.9 in29.8 inVIEW
bcp_371-2376_1524 mm (60 in)60 in5.9 in29.8 inVIEW
bcp_371-2377_1524 mm (60 in)60 in5.9 in29.8 inVIEW
bcp_6W-8900_1200 mm (47 in)47 in5.1 in23.6 inVIEW
bcp_6W-8933_1050 mm (41 in)41 in5.1 in31.5 inVIEW
bcp_6W-8935_1350 mm (53 in)53 in5.1 in31.5 inVIEW
bcp_6W-9739_1350 mm (53 in)53 in5.1 in31.5 inVIEW

Pallet Forks

Cat® Pallet Forks are designed to meet a wide variety of material handling needs. Use pallet forks for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.

ModelFork Tine LengthFork Tine ThicknessFork Tine Width
268-1289_79" Pallet Fork with 59" tines59 in2 in8 inVIEW
296-1595_79" VCE Pallet Fork with 69" tines69 in3 in8 inVIEW
299-0405_98" VCE Pallet Fork with 59" tines60 in2 in8 inVIEW
84" Pallet Fork with 60" tines60 in3 in6 inVIEW
84" Pallet Fork with 72" tines72 in3 in6 inVIEW
ModelCarriage HeightCarriage WidthCarriage Weight
bcp_300-6830_1829 mm (72 in)61 in98.3 in1130.7 lbVIEW
bcp_303-0397_1524 mm (60 in)61 in98.3 in1164.7 lbVIEW
bcp_353-1696_1070 mm (42 in)36.8 in45.8 in211.6 lbVIEW
bcp_353-1697_1220 mm (48 in)36.8 in45.8 in211.6 lbVIEW

Pipe & Pole Forks

A Cat® wheel loader equipped with a Cat Pipe & Pole Fork is perfect for transporting, loading and unloading long lengths of pipe and poles — either single or multiple pieces. The upper arm of the Pipe & Pole Fork can be moved up and out of the way allowing the fork to work like a pallet fork handle other material.

ModelCarriage WidthTine LengthWeight
2813mm (110in) Pipe & Pole Fork110 lb/in72 lb/in4456 lbVIEW
2813mm (110in) Pipe & Pole Fork, Fusion Coupler110 lb/in72 lb/in4556 lbVIEW
2813mm (110in) Pipe & Pole Fork, IT Coupler110 lb/in72 lb/in3800 lbVIEW
3131mm (123in) Pipe & Pole Fork123 lb/in96 lb/in6622 lbVIEW
3131mm (123in) Pipe & Pole Fork, Fusion Coupler123 lb/in96 lb/in6622 lbVIEW
377-2845108 in72 in4500 lbVIEW
ModelCarriage WidthFork Tine LengthWeight
bcp_496-1905_2559 mm (101 in)101 in60 in3505 lbVIEW
bcp_510-5060_2559 mm (101 in)101 in72 in4301 lbVIEW

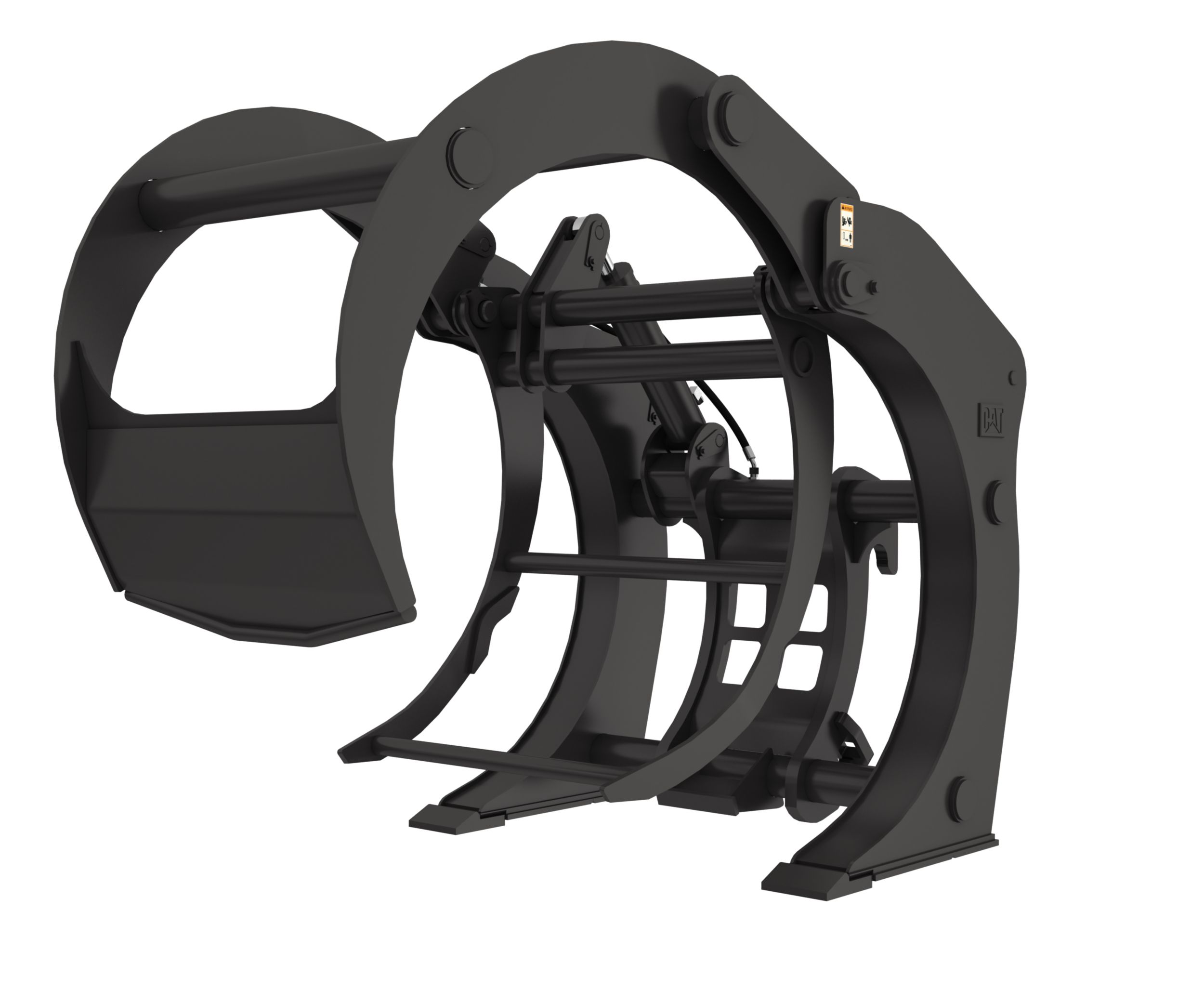

Sorting Grapple Forks

The Cat® Sorting Grapple Forks are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator's preferences while reducing owning and operating cost.

ModelCarriage WidthTine LengthGrapple Area
bcp_458-3462_1812 mm (71 in)71 in50 in20.7 ft²VIEW
bcp_492-7185_1812 mm (71 in)71 in50 in20.7 ft²VIEW

Unloading Grapple Forks

Unloading Grapple Forks unload trucks, stack and sort timber at the mill. Tine and clamp design permit quick and gentle loading. Forks are available with a kick-out that unloads the fork even at full lift, enabling higher lumber stacking.

ModelFork WidthWidth - Over TinesWidth - Between Tines
1832mm (72in) Fusion72 in72 in55 inVIEW
1850mm (73in) Fusion73 in73 in52 inVIEW
1850mm (73in) w kick-out, Fusion73 in73 in52 inVIEW

Utility Forks

Cat® Utility Forks are designed for handling a variety of light materials in farming, ranching and landscaping applications. Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose material such as straw and hay, loosening of bedding material and aeration of soil. NOTE: Utility forks are not designed for piercing and carrying large, round bales.

ModelWidthHeightWeight
bcp_285-6105_1676 mm (66 in)66 in22.9 in436.5 lbVIEW
bcp_285-6110_1829 mm (72 in)72 in22.9 in485 lbVIEW

Utility Grapple Forks

Cat® Utility Grapple Forks are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch, pine straw and pierceable objects. NOTE: Utility grapple forks are not designed for piercing and carrying large, round bales.

ModelWidthHeight - Grapples ClosedJaw Opening
bcp_285-6114_1676 mm (66 in)66 in30.3 in34.5 inVIEW
bcp_285-6115_1829 mm (72 in)72 in30.3 in34.5 inVIEW
