2337 mm (92 in)
2337 mm (92 in) Dozer Blade
DESCRIPTION
Designed for rough and finish grading in dirt, gravel, and light dozing.Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.Full Modulated Joystick Control
Full modulated joystick control operates the attachment with right joystick. Main functions are incorporated into the joystick for an intuitive operator experience.
Variable Power Angle Tilt
Variable Power Angle Tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.
Trapezoidal Blades
Trapezoidal blades are modeled after track-type tractor blades and allow flush cutting against a vertical surface when blade is fully tilted.
Replaceable Bolt-on Cutting Edge
Three replaceable, bolt-on, cutting edges ensure a long service life of the blade. Wear indicator bars on cutting edges provide a visual indication of remaining cutting-edge life. Center cutting edge section can be flipped for double life.
Removeable Shims
Removable shims allow adjustment for trunnion interface wear.
Spill Guard
Spill guard prevents material from spilling over the top of the blade in full blade scenarios.
Mast Mounting Points
Mast mounting points accept external reference masts.
Serrated Step
Serrated step provides safe entry and exit of machine cab.

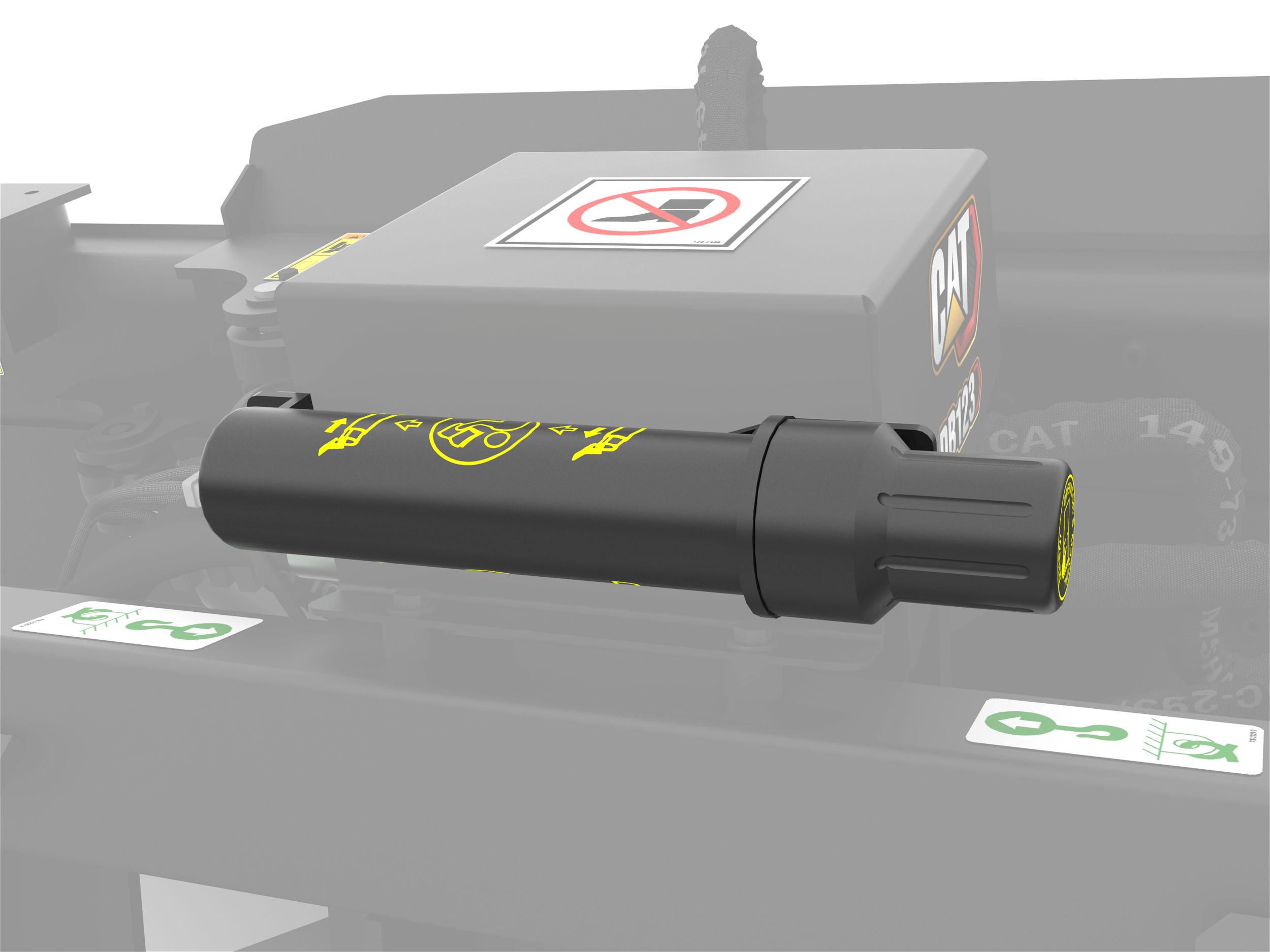

OMM Container
Container stores the Operation Maintenance Manual (OMM) in a protective case on the attachment.
- Specs
- Docs
Specs
Overview
SEE HOW 2337 mm (92 in) COMPARES AGAINST FREQUENTLY COMPARED PRODUCTS.
- Brand
- Cat
- Status
- Current
- Blade Width
- 92 in / 2337 mm
- Width - Fully Angled
- 80.7 in / 2049 mm
- Maximum Blade Angle - Right/Left of Center
- 30 degrees
- Tilt Angle Range
- +/-10 degrees
- Blade Height
- 28.2 in / 716 mm
- Overall Height
- 30.7 in / 779 mm
- Length
- 40.5 in / 1028 mm
- Weight
- 1124.4 lb / 510 kg
- Cutting Edge Thickness
- 0.6 in / 16 mm
- Required Hydraulics
- Standard Flow w/14 pin Electrical
- Optimal Hydraulic Flow
- 42-86 L/min (11-23 gpm)
- Optimal Hydraulic Pressure
- 145-235 bar (2100-3400 psi)
- Interface Type
- Skid Steer Coupler
- Brand
- Cat
- Status
- Current
- Blade Width
- 79 in / 2007 mm
- Width - Fully Angled
- 68.9 in / 1750 mm
- Maximum Blade Angle - Right/Left of Center
- 30
- Tilt Angle Range
- +/-10 degrees
- Blade Height
- 28.2 in / 716 mm
- Overall Height
- 30.7 in / 779 mm
- Length
- 40.5 in / 1028 mm
- Weight
- 1104.5 lb / 501 kg
- Cutting Edge Thickness
- 0.6 in / 16 mm
- Required Hydraulics
- Standard Flow w/14 pin Electrical
- Optimal Hydraulic Flow
- 42-86 L/min (11-23 gpm)
- Optimal Hydraulic Pressure
- 145-235 bar (2100-3400 psi)
- Interface Type
- Skid Steer Coupler
- Brand
- Cat
- Status
- Current
- Blade Width
- 92 in / 2337 mm
- Width - Fully Angled
- 80.7 in / 2049 mm
- Maximum Blade Angle - Right/Left of Center
- 30 degrees
- Tilt Angle Range
- +/-10 degrees
- Blade Height
- 28.2 in / 716 mm
- Overall Height
- 34.6 in / 878 mm
- Length
- 40.5 in / 1028 mm
- Weight
- 1164 lb / 528 kg
- Cutting Edge Thickness
- 0.6 in / 16 mm
- Required Hydraulics
- Standard Flow w/14 pin Electrical
- Optimal Hydraulic Flow
- 42-86 L/min (11-23 gpm)
- Optimal Hydraulic Pressure
- 145-235 bar (2100-3400 psi)
- Interface Type
- Skid Steer Coupler
